HT100KW-HY

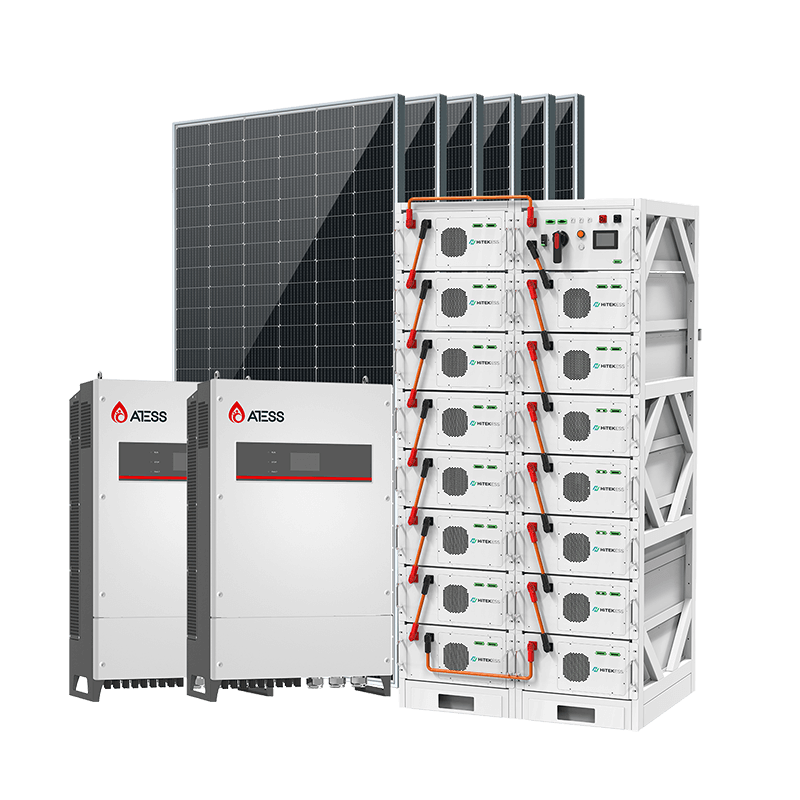

100KW Hybrid Solar System With 215KWH Lithium Battery

215KWH

Battery Cpacity

100 كيلوواط

محول هجين

دردشة الآن

Download

مفتاح الميزات

High Capacity Storage

High Voltage battery system delivers stable& long-duration power for commercial or large residential use during outages or peak demand.

Grid & Off-Grid Versatility

Seamless switching between solar, battery and grid power for reliable energy in any scenario.

Scalable System Configuration

ويدعم النظام التوسع المتوازي، مما يسمح بالتوسع المستقبلي مع تقليل الاعتماد على الوقود الأحفوري وتقليل بصمة الكربون.

Smart Energy Optimization

Advanced energy management maximizes self-consumption of solar/DG power while reducing electricity costs.

الميكانيكية المعلمات

System Diagram

HITEKESS Solar System Configuration
نموذج	HT100KW-HY	HT200KW-HY	HT300KW-HY
600W Solar Panel N Type	165PCS	330PCS	495PCS
DC Combiner Box	1PC	2PCS	3PCS
محول هجين	100KW*1	100KW*2	100KW*3
Monitoring Device	1PC	2PCS	3PCS
LiFePO4 Battery	215.04KWH	430.08KWH	645.12KWH
MC4 Connector	70Pairs	120Pairs	180Pairs
*PV cable 14MM2**	1400M	2800M	4200M
Solar Installation Tool	1Set	1Set	1Set
تركيب الهيكل	Customized Designed Complete Set Roof/Ground Mounting Kits
*HITEK ENERGY — Better & Brighter Future* *We use ONLY Reliable Approved Equipment*

منتجات التفاصيل

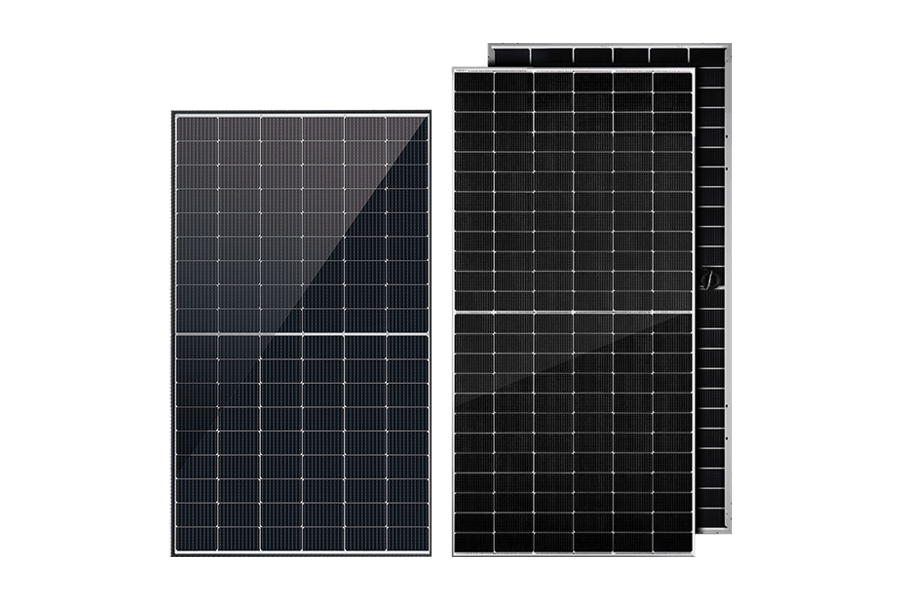

نوع N لوحة شمسية

HITEK ENERGY N Type 400-720Watt Available
TIER 1 Brand: TW Solar Support

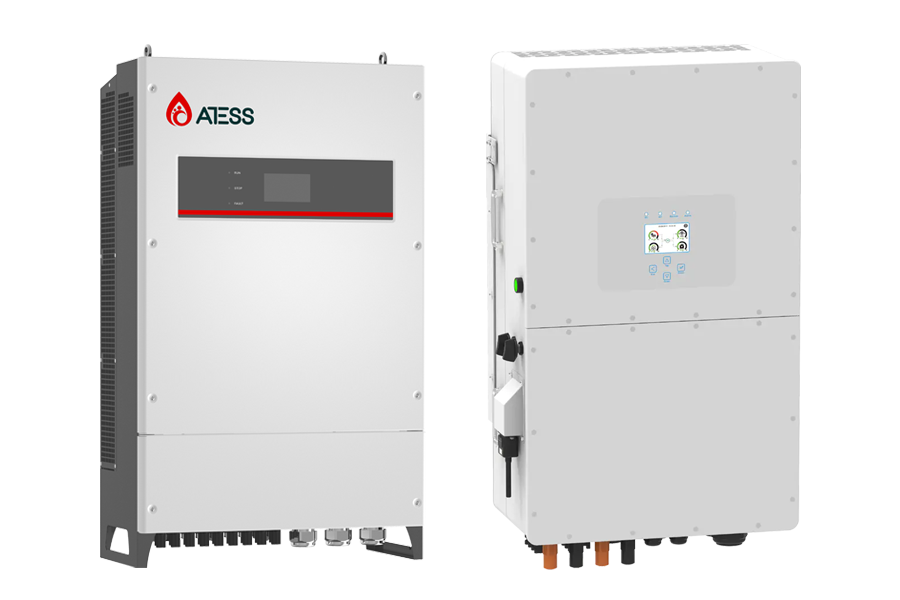

50KW-300KW Hybrid Inverter

Famous Brand of SOLIS, ATESS, DEYE, MEGAREVO
Auto On/Off Grid Switch
Support Parallel Expand
Support UPS function and black start
Support AC Coupling, Remote Control, Excess PV Design
Included isolation transformer, suitable for Industrial Inductive Load

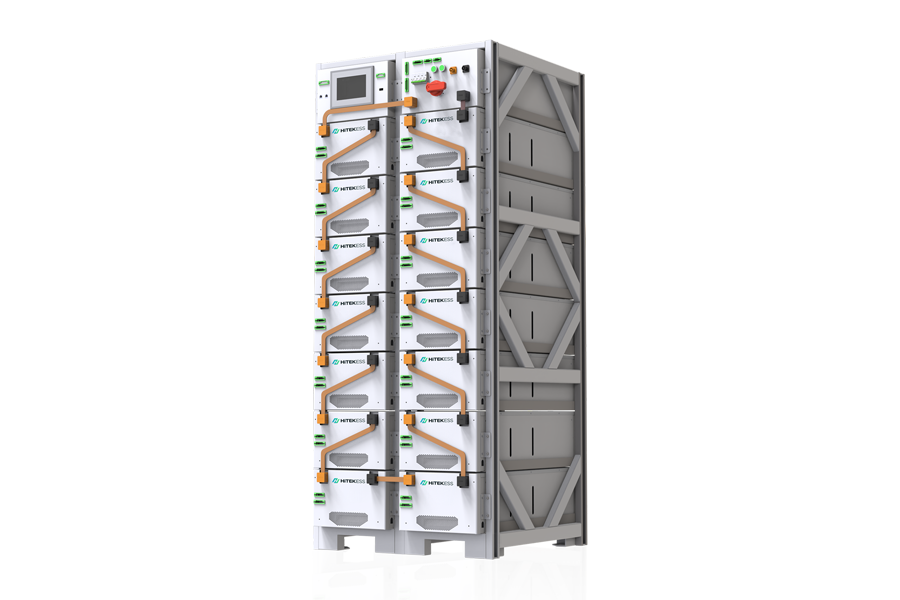

بطارية الليثيوم

14 units of HT51280-HV make 2 clusters 200.704KWH
Flexible voltage and power combination, suitable for all types of inverters.
MAX Discharge 180A
Ultra-safe BMS with three-level architecture

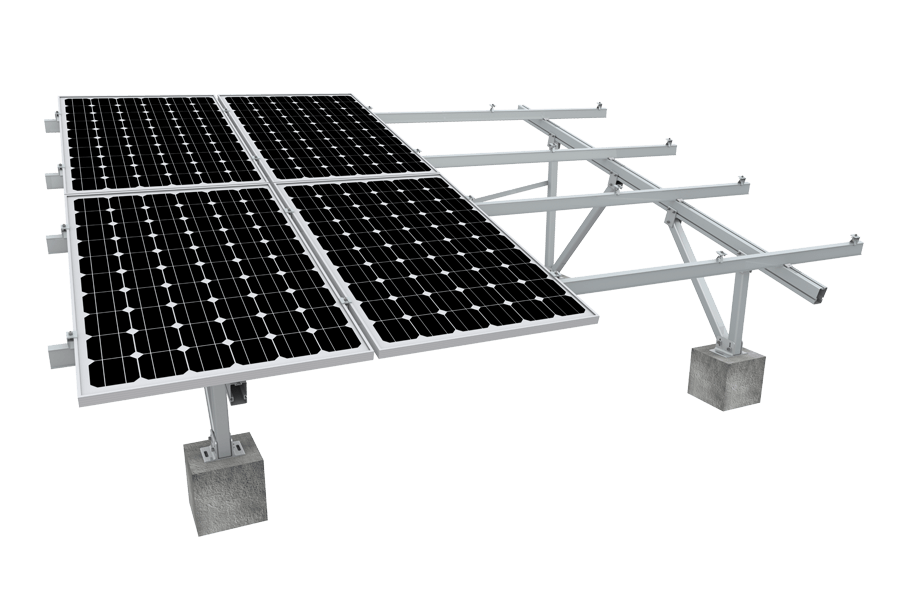

تركيب قوسين

Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective).
Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency.
Weather Resistance: Engineered to withstand wind, snow, and seismic loads.
Easy Installation: Modular designs for quick assembly and flexibility.
Ground/Roof Adaptability: Suitable for diverse terrains and rooftops.

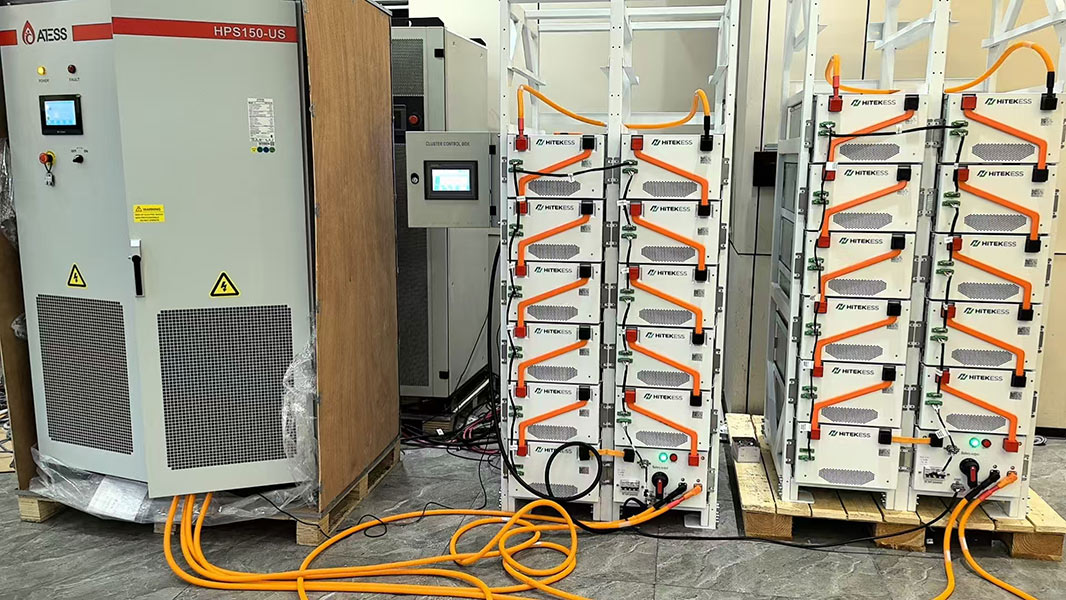

تصحيح النظام

Functional Checks: Verifying battery management, inverter operation, and system communication.
Performance Testing: Confirming energy storage capacity, charge/discharge efficiency, and grid interaction.
Safety Inspections: Testing fault protection, insulation, and thermal management.
Simulated Conditions: Validating system stability under real-world load and weather scenarios.
