HT1MW-ON

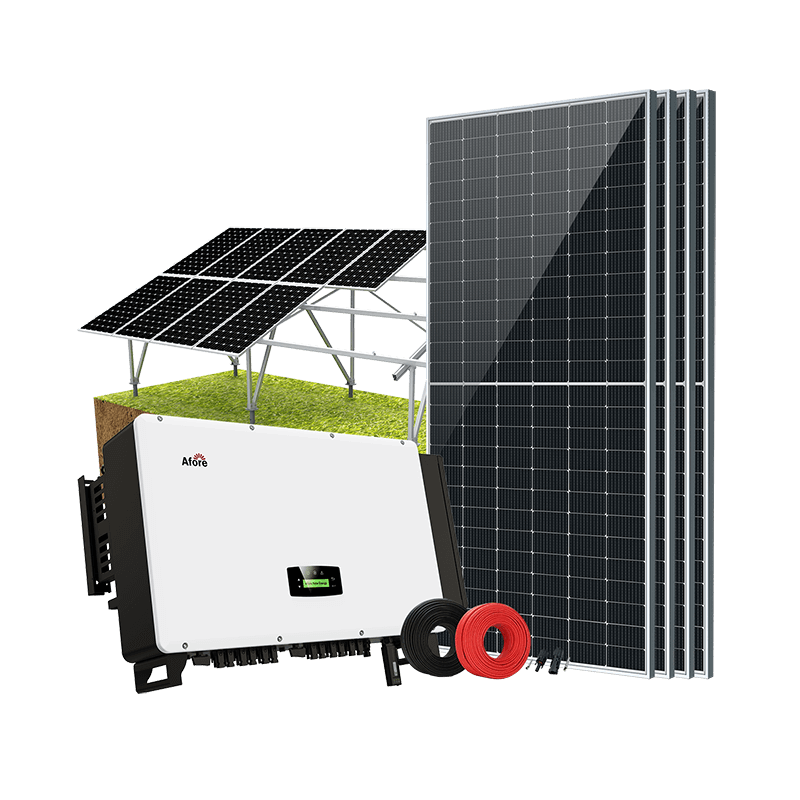

HITEK 1MW On Grid Solar System with String Inverters

100KW*10

On Grid Inverter

5 Years+

Гарантия

Чат сейчас

Download

Ключ Особенности

Высокая энергоэффективность

Utilizing advanced photovoltaic technology to maximize power generation and ensure optimal energy output.

Cost-Effective Solution

Reduces electricity bills and offers a strong return on investment (ROI) with low maintenance requirements.

Seamless Grid Integration

Designed for smooth synchronization with the utility grid, enhancing stability and reliability.

Eco-Friendly Power Generation

Zero emissions during operation, contributing to a cleaner environment and sustainable energy future.

Механические Параметры

Конфигурация системы
Модель	HT500KW-ON	HT1MW-ON	HT1.5MW-ON	HT2MW-ON	HT3MW-ON
600W Solar Panel N Type	800PCS	1600PCS	2400PCS	3200PCS	4800PCS
ON GRID SOLAR INVERTER Growatt/Afore/Solis/DEYE…	5PCS	10PCS	15PCS	20PCS	30PCS
AC Combiner Box	5 Inputs 1 Output*1	10 Inputs 1 Output*1	15 Inputs 1 Output*1	20 Inputs 1 Output*1	30 Inputs 1 Output*1
Monitoring Device	WIFI/Enterlog/BR300……
MC4 Connector	200 Pairs	400 Pairs	600 Pairs	800 Pairs	1200 Pairs
*PV cable 14MM2**	2400M	4800M	9600M	19200M	24000M
Solar Installation Tool	1 Set	1 Set	1 Set	1 Set	1 Set
Монтажная структура	Customized Designed Complete Set Roof/Ground Mounting Kits
HITEK ENERGY — Better & Brighter Future We use ONLY Reliable Approved Equipment

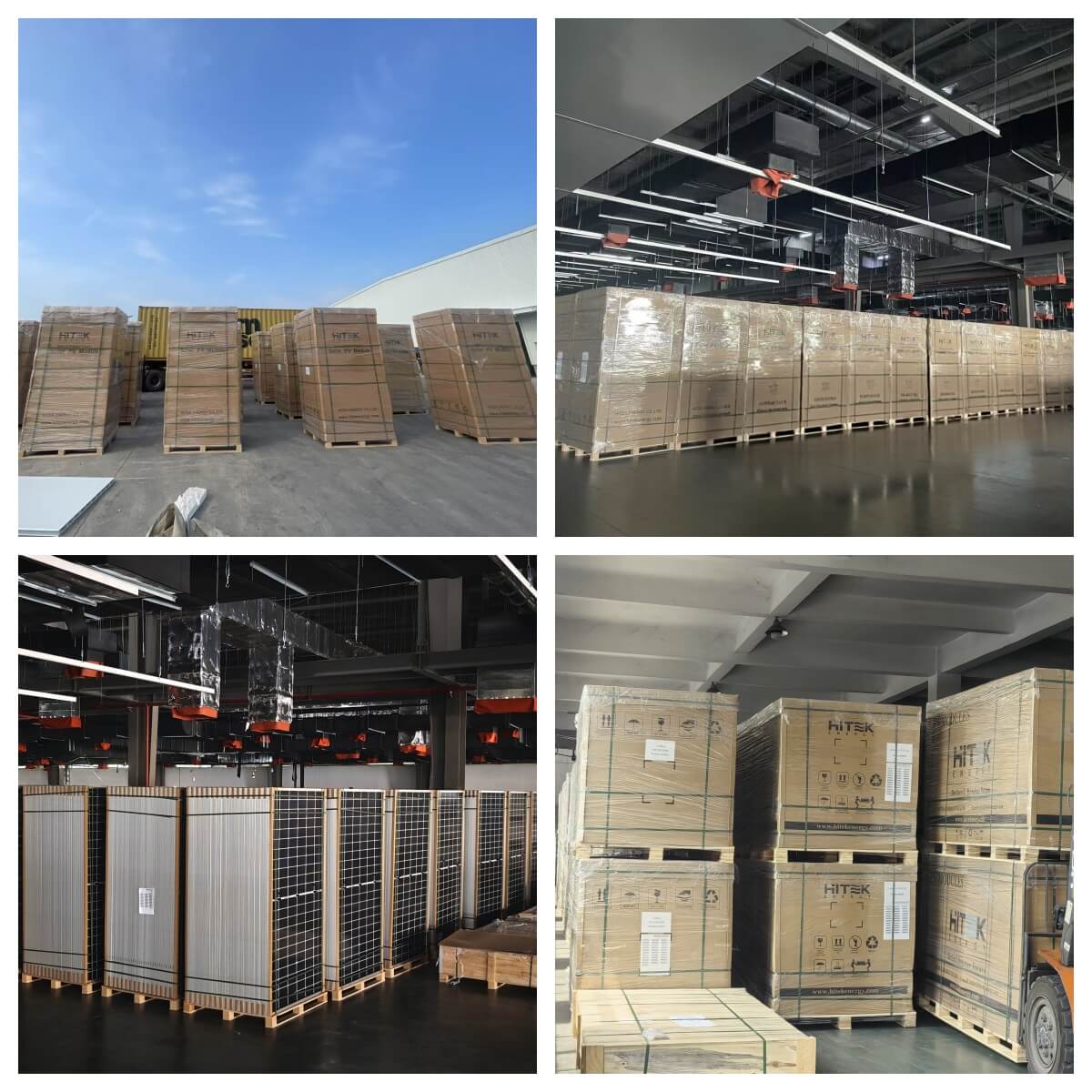

OUR DELIVERY PICS

HITEK SOLAR PROJECTS

Продукты Подробности

Тип N Солнечная панель

HITEK ENERGY N Type 400-720Watt Available
TIER 1 Brand: TW Solar Optional

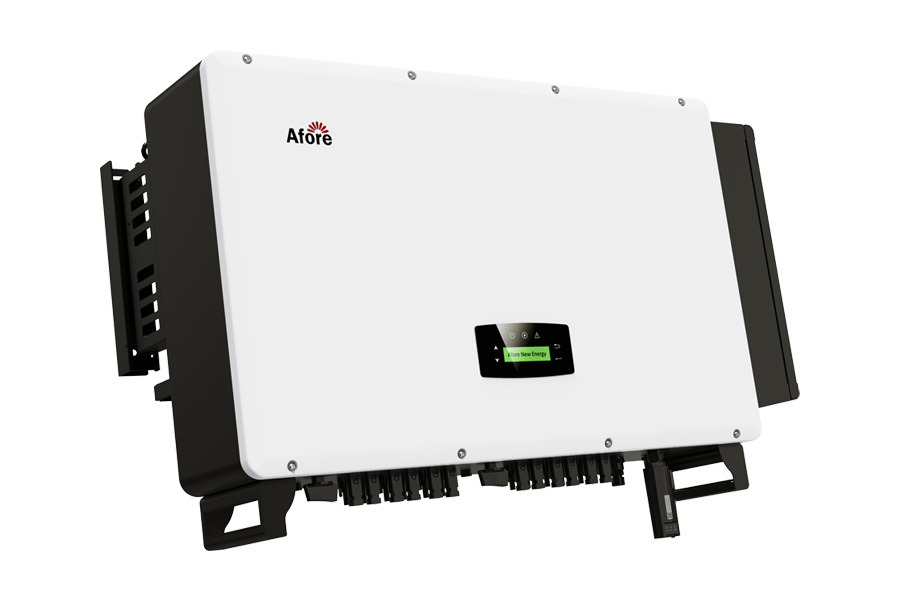

30KW-350KW String On Grid Inverter

Famous Brand of Growatt,Solis, Afore, Deye
Multiple MPPTs design, up to 8 MPPTs
Max. string current up to 22.5A
DC/AC ratio up to 1.5
AFCI protection optional
Type II SPD on DC and AC sides

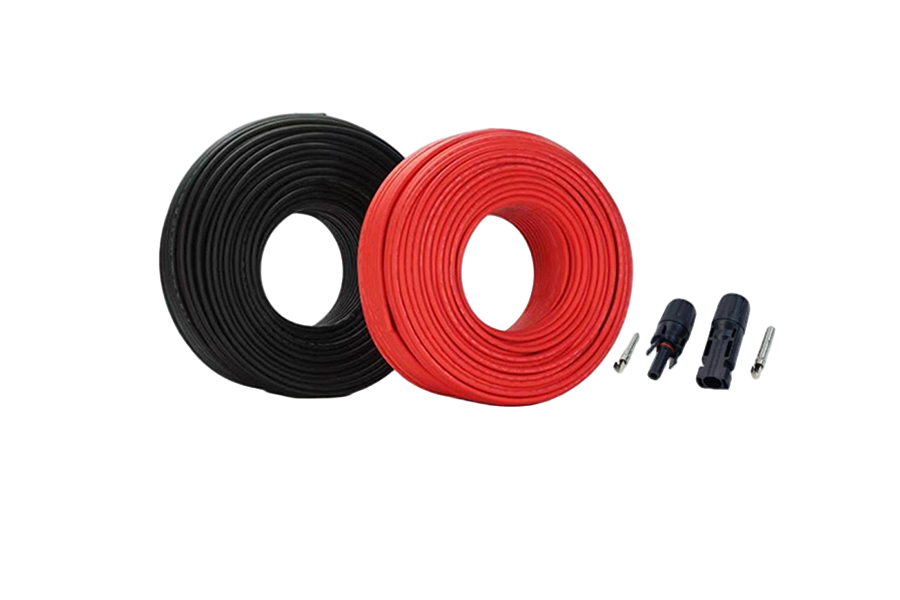

PV Cable

H1Z2Z2-K DC 1.5KV 1*4mm2
Flexibility under cold conditions
High temperature resistance, materials will not melt or flow
Long usable life, expected usable life over 25 years
Insulation : XLPE, flame retardant, halogen free, E-Beam cross-linked compounds

Монтажные кронштейны

Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective).
Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency.
Weather Resistance: Engineered to withstand wind, snow, and seismic loads.
Easy Installation: Modular designs for quick assembly and flexibility.
Ground/Roof Adaptability: Suitable for diverse terrains and rooftops.

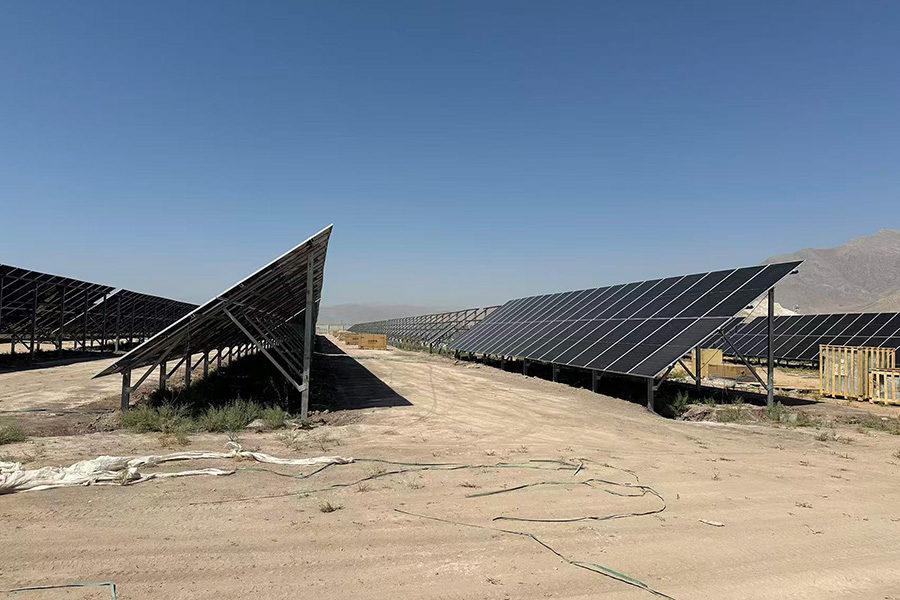

Отладка системы

Insulation Resistance Test (Megger Test): Verifies the DC wiring insulation is intact and safe, preventing ground faults.
I-V Curve Tracer Test: Checks the performance of PV strings, identifying issues like module mismatch, shading, or faulty connectors.
Inverter Functional Test: Ensures the inverter starts up correctly, synchronizes with the grid, and feeds power as designed.
Protection Function Test: Validates all safety mechanisms, including:
Anti-Islanding Protection (crucial for grid safety)
DC Reverse Polarity Protection
Over/Under Voltage and Frequency Protection
Communication & Monitoring Test: Confirms the data communication (e.g., RS485, Ethernet) between the inverter, meters, and monitoring platform is operational. Visual and Mechanical Inspection: A final check of all connections, cable management, labeling, and for any physical damage.

Why Choose HITEK ENERGY?

✔ Industry-Leading Efficiency — Advanced MPPT & hybrid inverter technology

✔ Reliable 24/7 Power — Seamless transition between energy sources

✔ Low Maintenance & Durable — Premium lithium batteries with a 10+ year lifespan

✔ Smart Energy Management — Real-time monitoring & adaptive performance

At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Solar Equipments.
