OFF GRID SOLUTION

The off-grid solar system operates autonomously, obviating the need for any grid connection. Nonetheless, the effective functioning of this system mandates the inclusion of a battery backup to accumulate the solar energy generated during daylight hours.

The key components of the off-grid solar system encompass solar panel manufacturing, a charge controller, a storage battery, mounting structures, and an inverter.

The solar panels diligently harvest solar energy during daylight, while the storage battery assumes the responsibility of accumulating surplus energy to facilitate the operation of electrical appliances during nighttime hours.

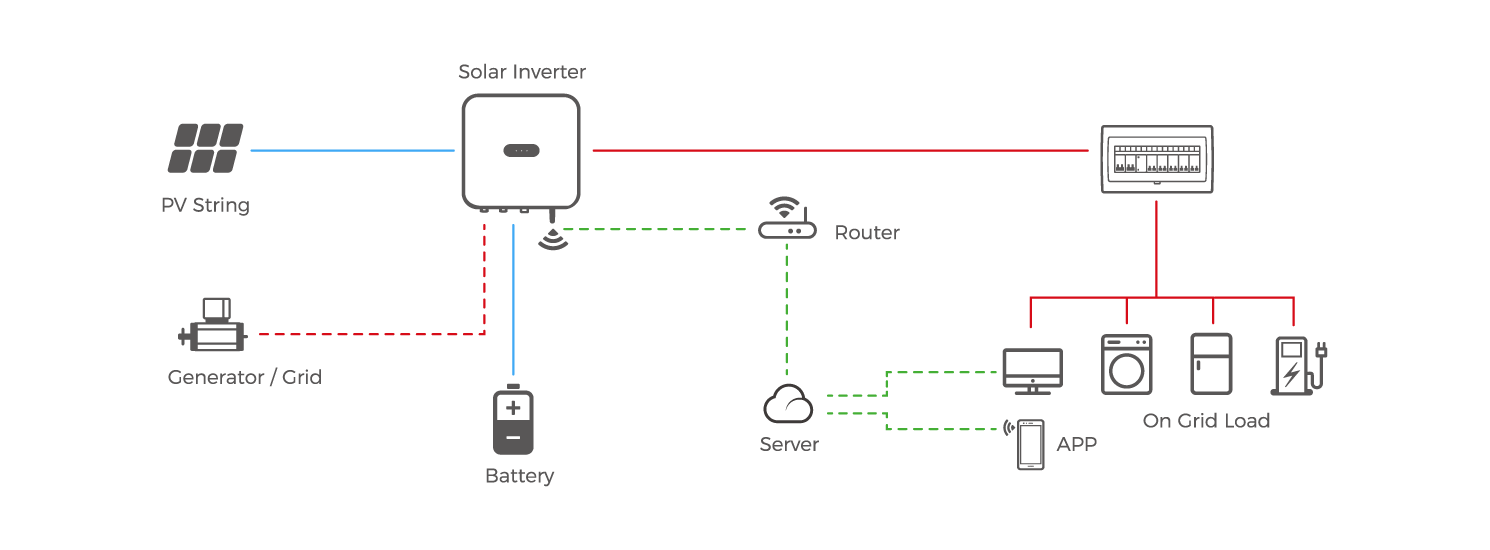

System Diagram

 System Component

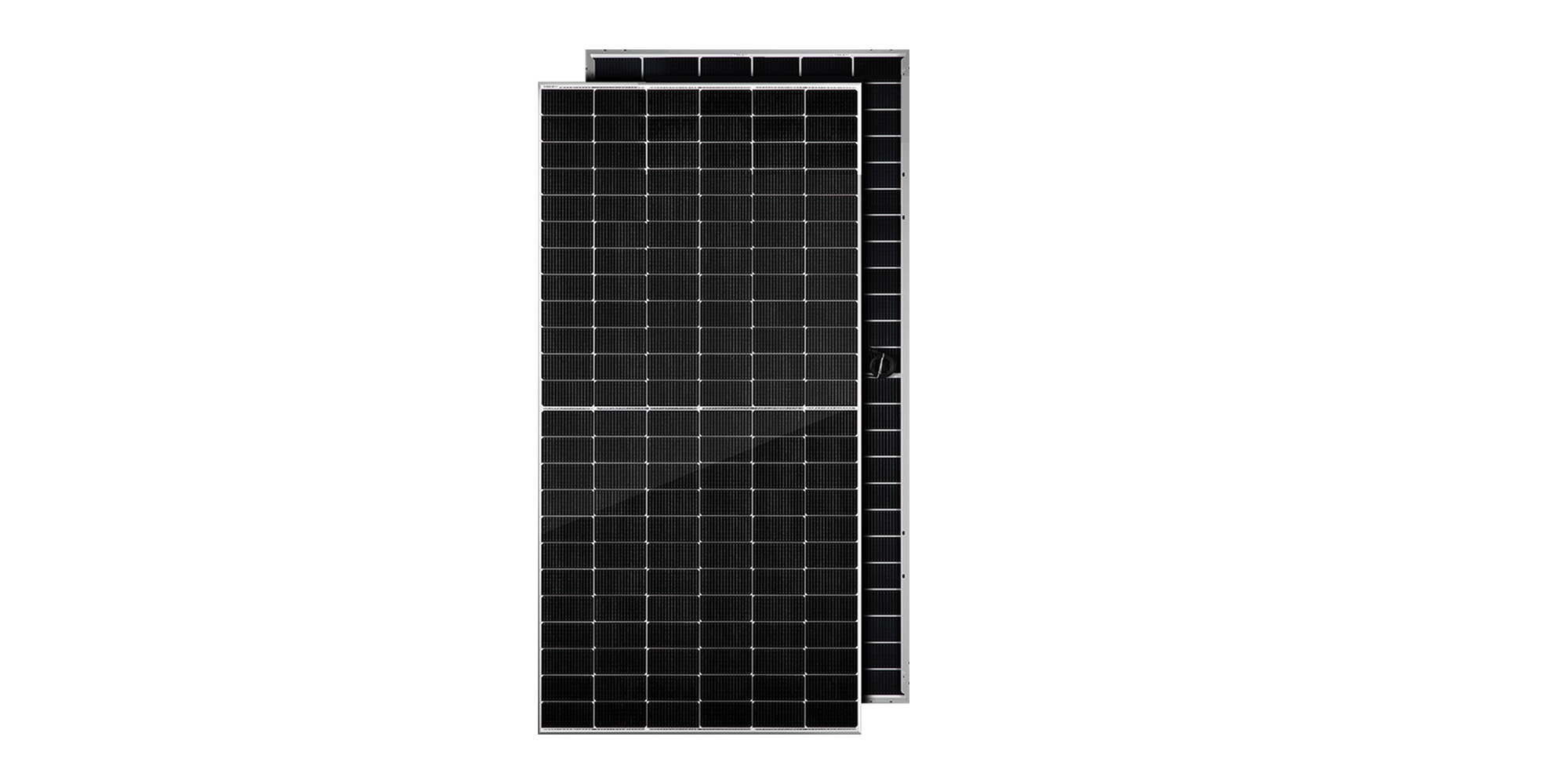

TOPCON N TYPE Mono 590W Solar Panel

HT590M-72H

Peak Power Watts: 590Wp

Maximum Power Voltage: 43.22V

Maximum Power Current: 12.96A

Open Circuit Voltage: 50.68V

Short Circuit Current: 13.76A

Dimensions: 2278×1134×35mm

Weight: 27.8kg

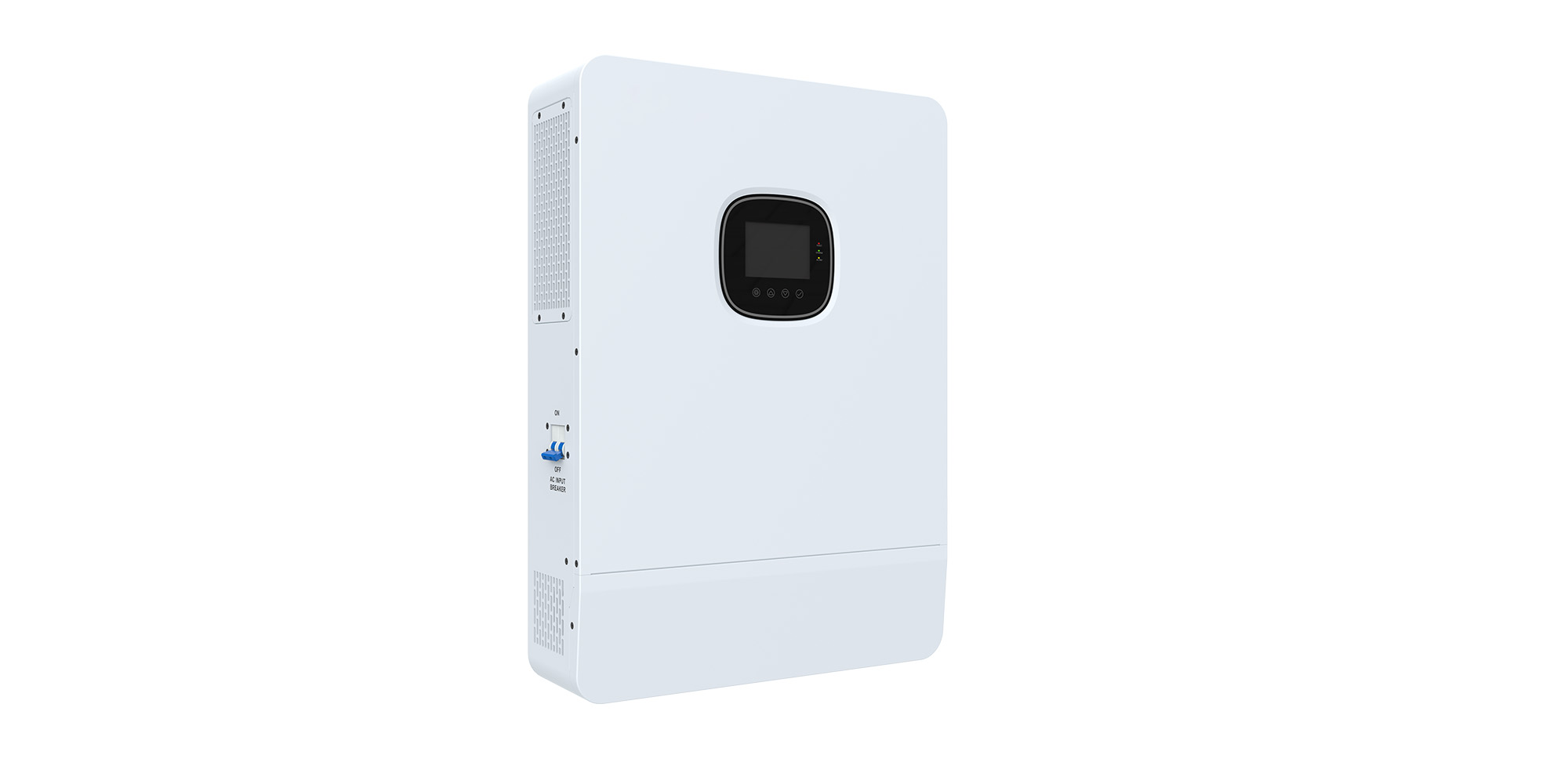

Residential Off Grid Inverter



Dual MPPT with up to 99.9% efficiency

4-6kW load power to meet the needs of most households

Up to 6pcs in parallel

Solar Charger Controller up to 200A charging current





Wall Mounted LV Lithium Battery



51.2V 100AH LV

51.2V 200AH LV

51.2V 280AH LV

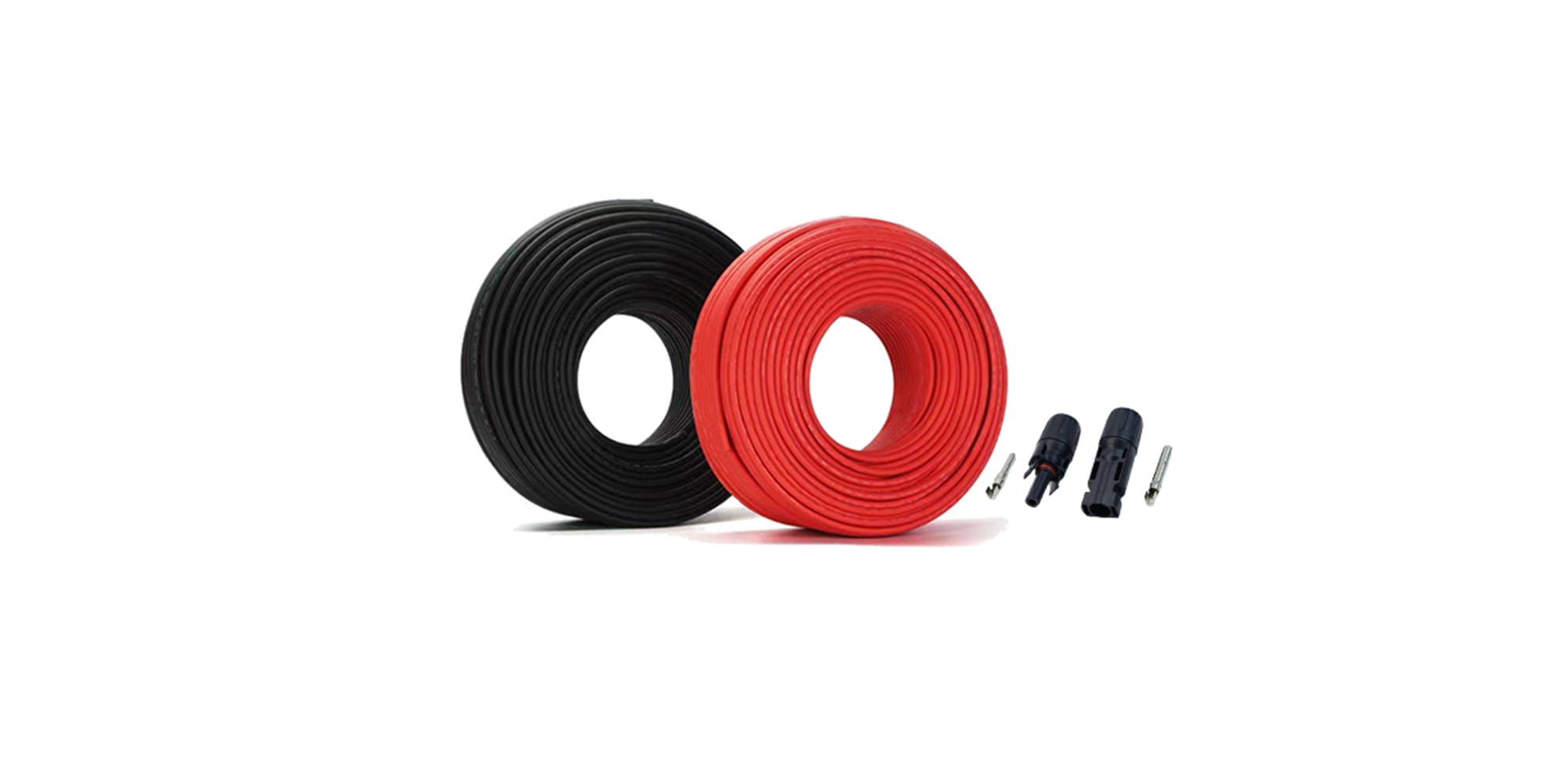

DC Cable & MC4 Connector



Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

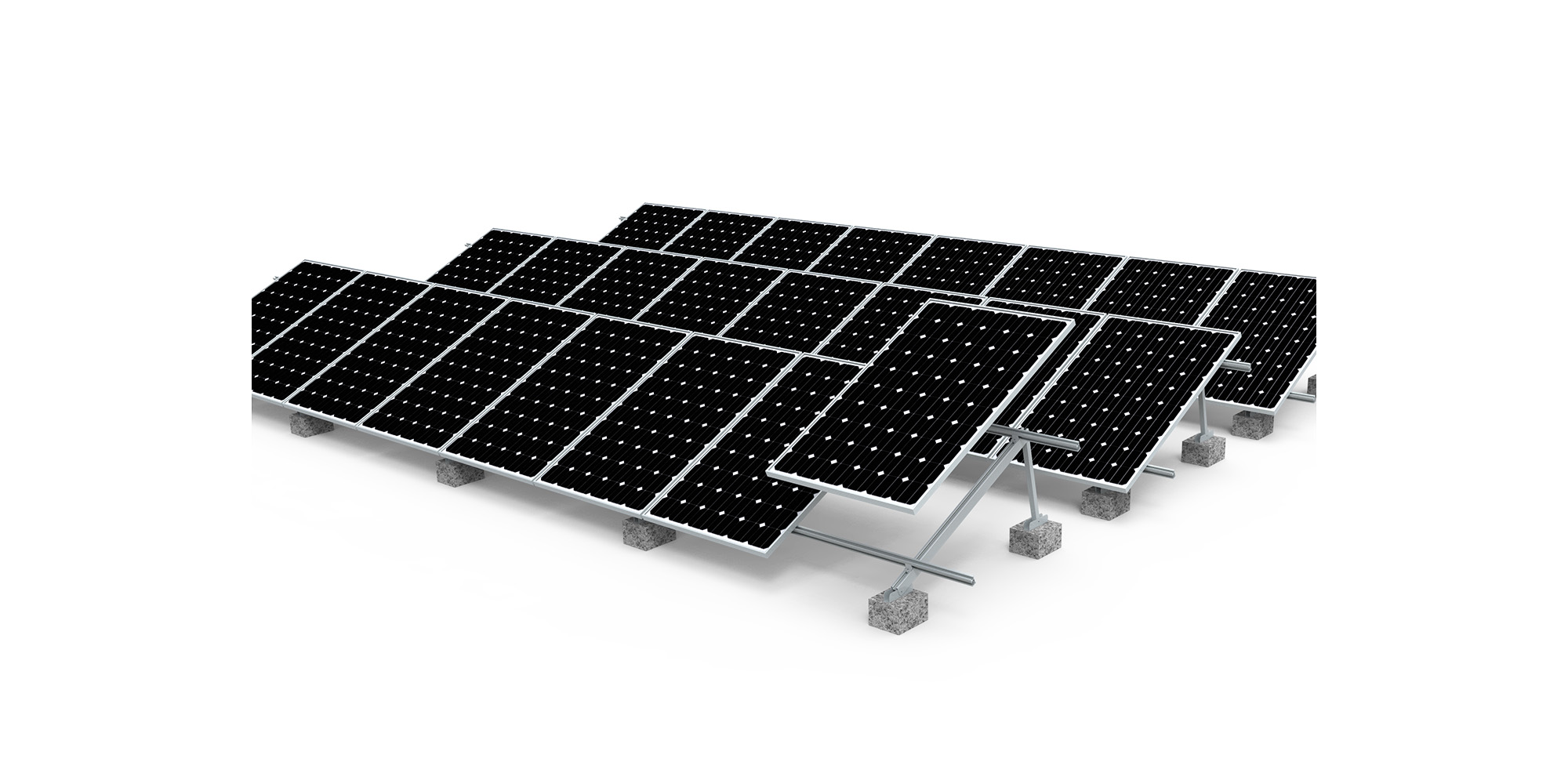

PV Mounting System



Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

Mid & End Clamps: 30,35mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
