ON GRID SOLUTION

An on-grid solar system, also known as a grid-tied solar system, is the most widely deployed form of rooftop solar across the world. These systems do not need any batteries and are connected to the utility grid power.

It is best suited for customers with stable grid power and minimal power cuts. Other than homes, even educational institutions, industrial units, commercial establishments use these systems as their primary source of power.

An on-grid system is designed to first allow solar energy to be consumed by the customer. Beyond this, if the customer needs any excess power, it is drawn from the grid. If the customer’s energy requirement is lower than power generated from the solar system, excess solar units are exported to the grid. This is possible through a 'Net-meter'

Net-meter is a device that records the energy supplied to the grid and the energy drawn from it. At the end of each month, the net energy consumed is recorded and the consumer is provided with a bill. This feature makes the on-grid solar system a great investment with high returns.

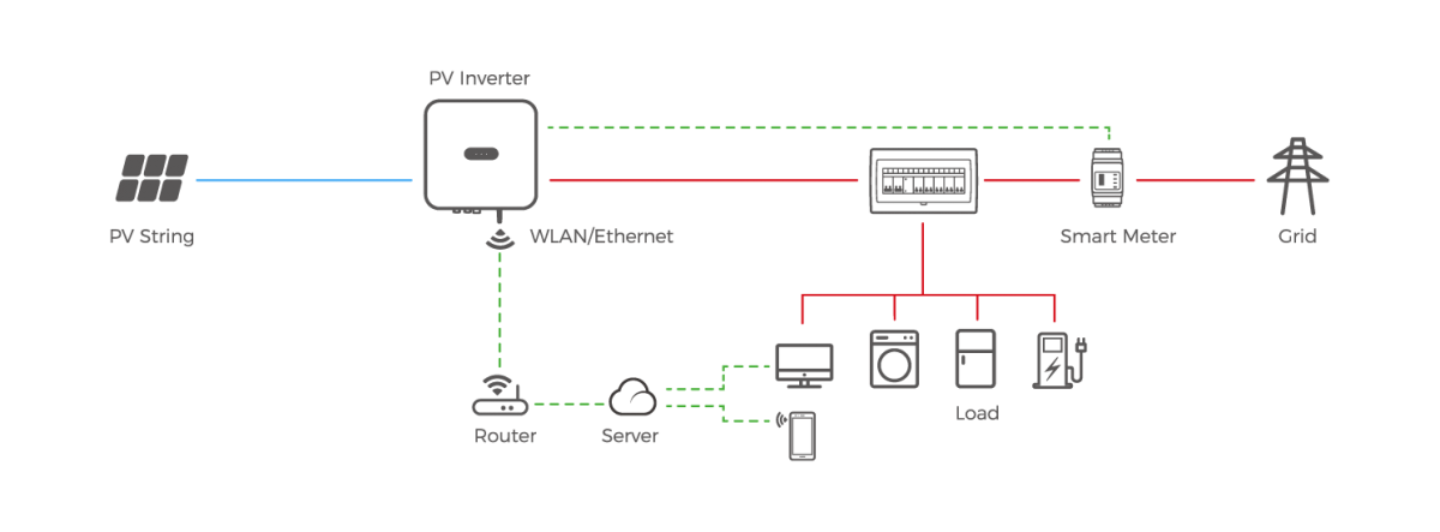

System Layout

System Component

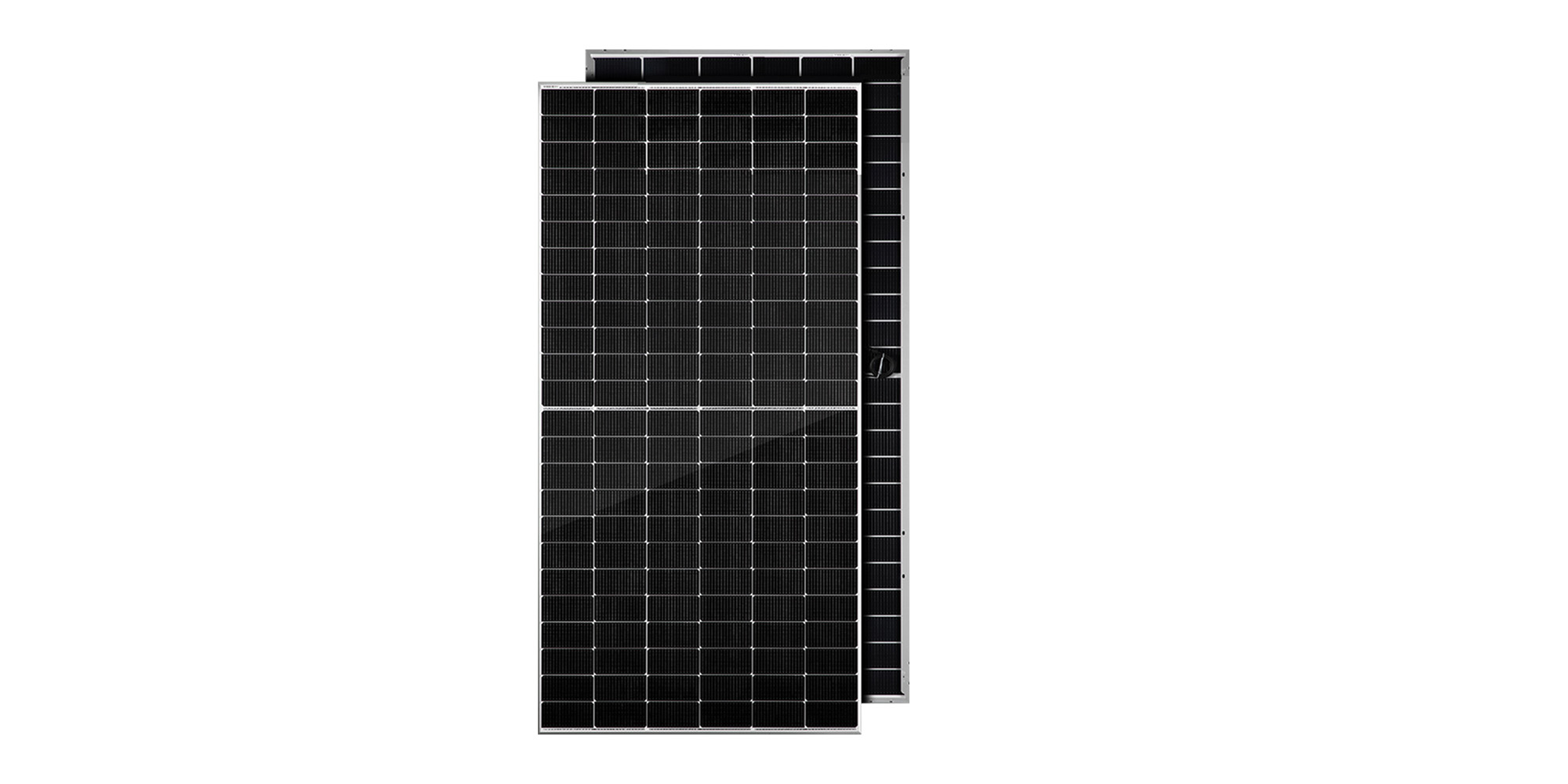

HITEK TOPCON N TYPE Mono 590W Solar Panel

HT590M-72H

Peak Power Watts: 590Wp

Maximum Power Voltage: 43.22V

Maximum Power Current: 12.96A

Open Circuit Voltage: 50.68V

Short Circuit Current: 13.76A

Dimensions: 2278×1134×35mm

Weight: 27.8kg

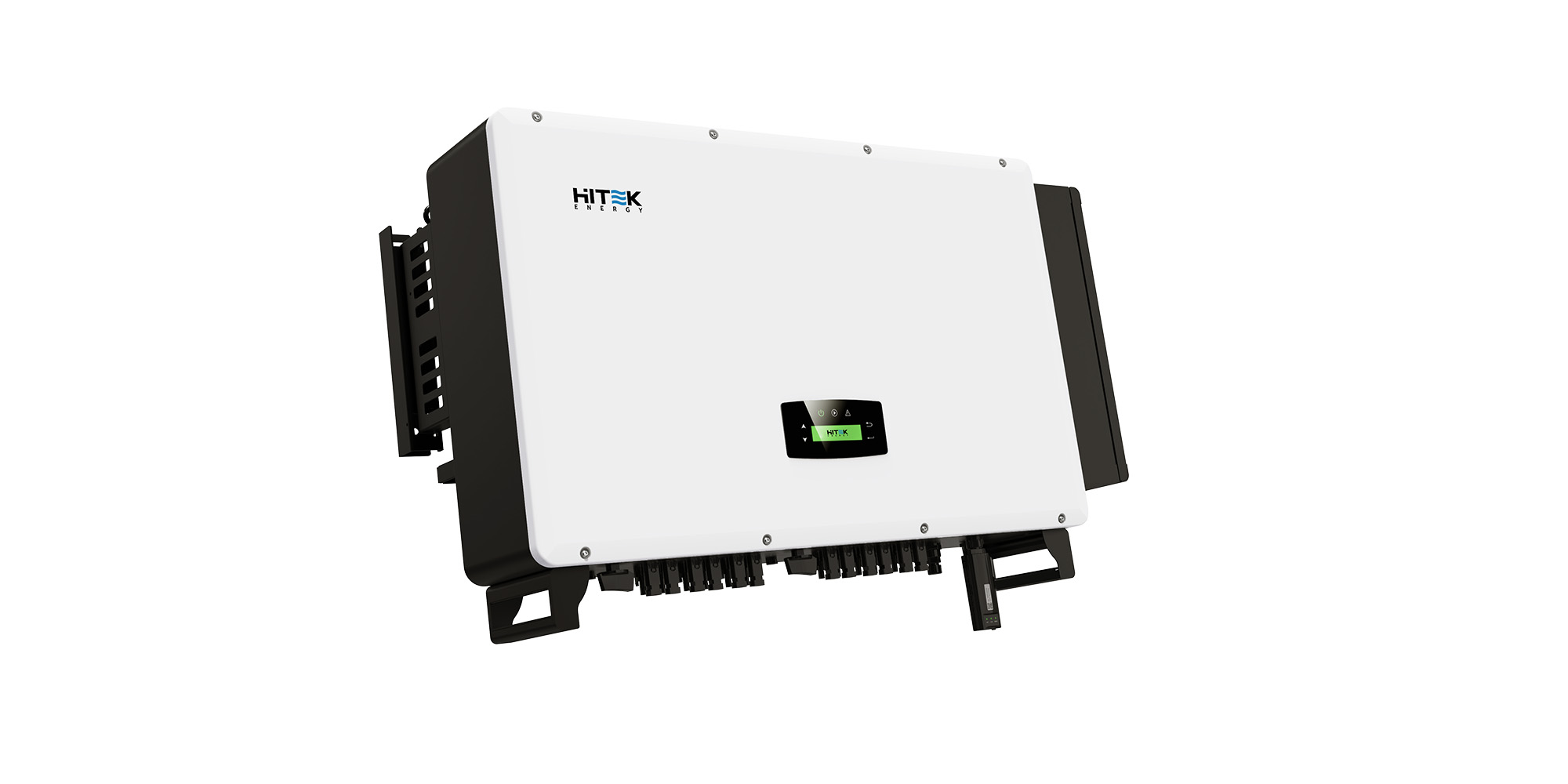

Grid-Tie Inverter



Upto 10 MPPTs, max. efficiency 99%.

Compatible with bifacial modules.
Remote firmware upgrade with simple operation. Overvoltage load reduction and leakage current suppression technology, low failure rate.

DC Combiner Box



DC Fuses, DC Breaker, DC SPD

IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A

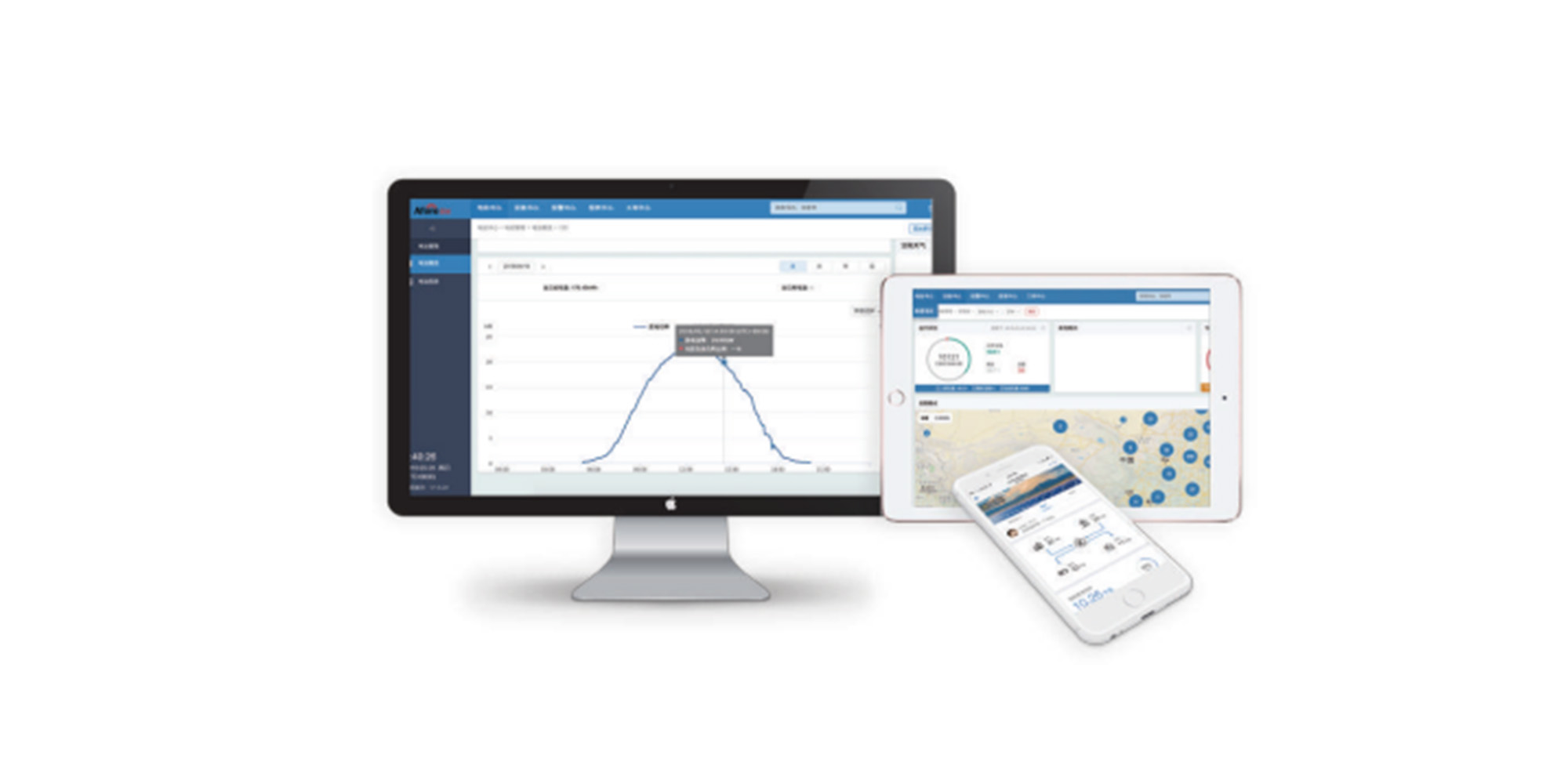

Online Monitoring System



Open station supports one-click installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

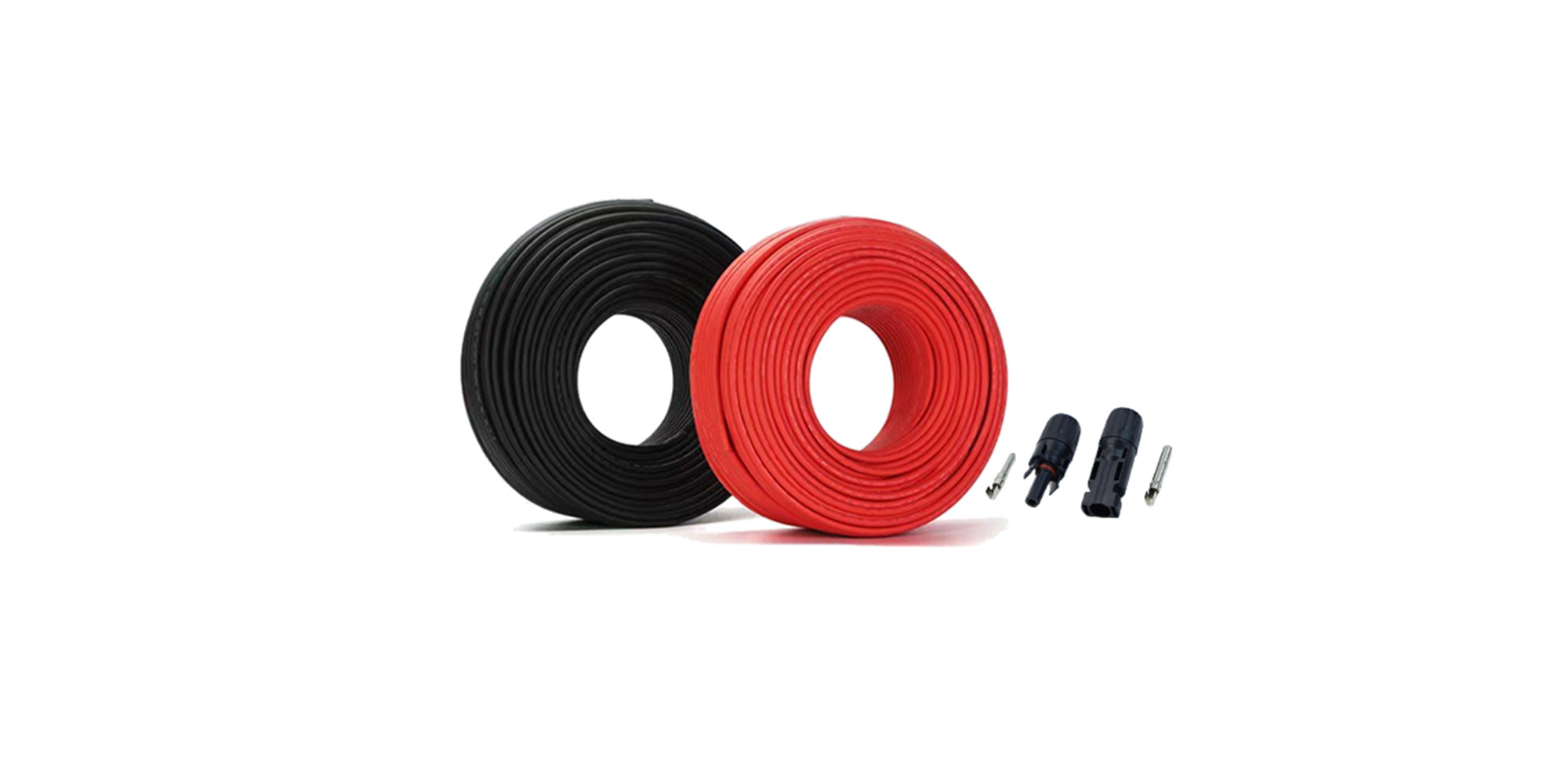

DC Cable & MC4 Connector



Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

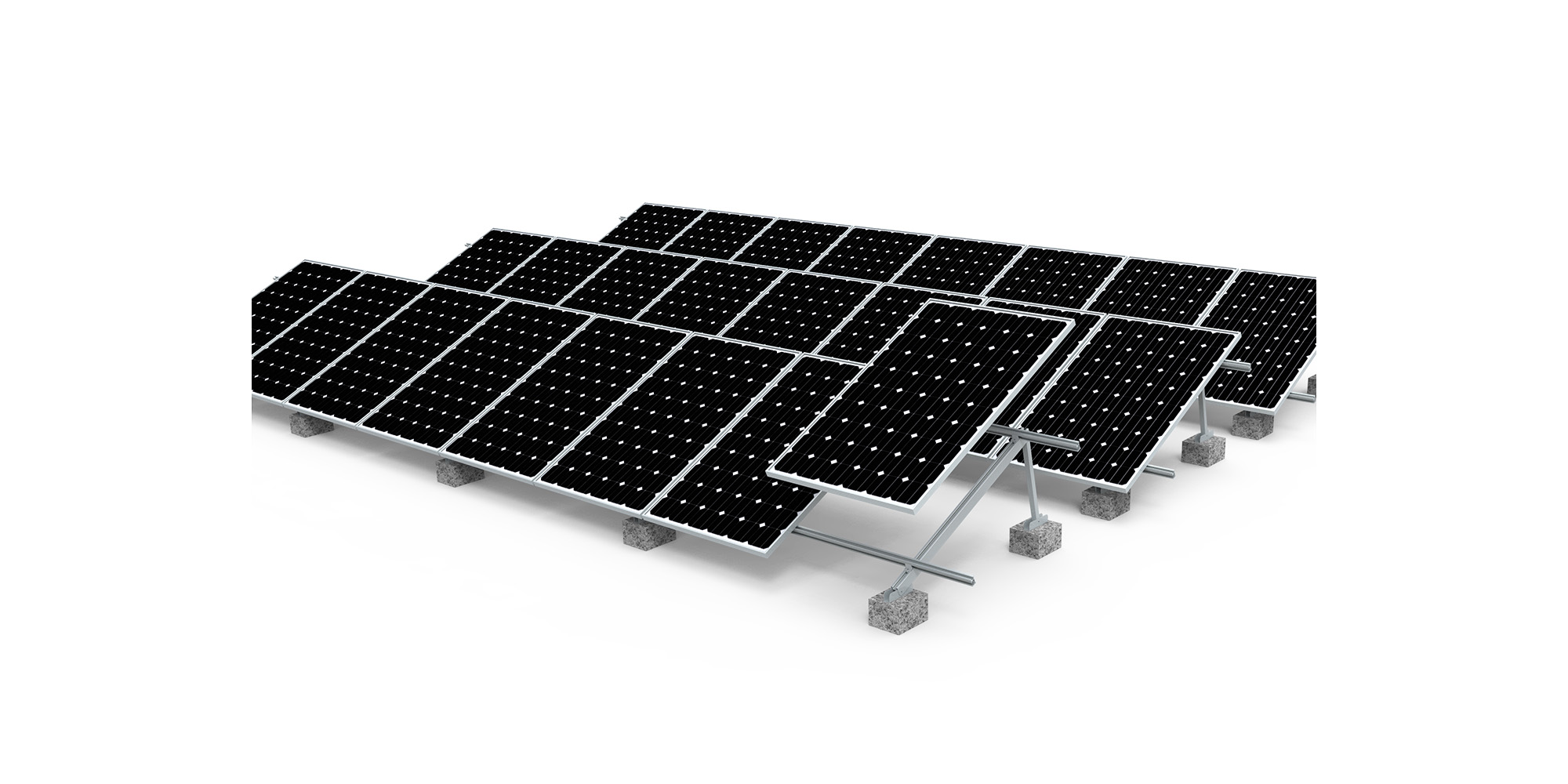

PV Mounting System



Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.

Mid & End Clamps: 30,35mm

L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
