HT125KW-HY

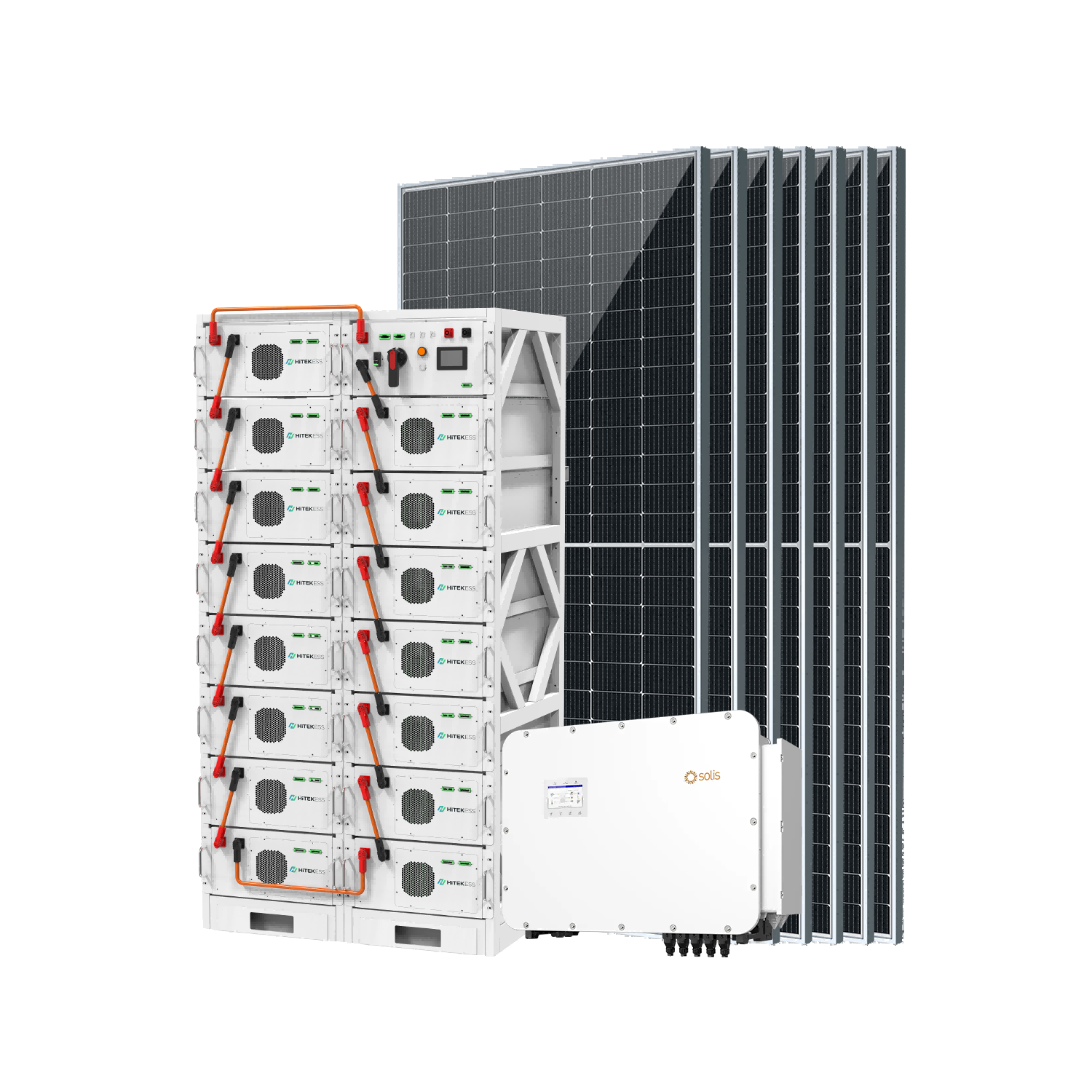

125KW Energy Storage System With 241KWH LFP Battery

241KWH

Battery Storage Cpacity

125KW

C& I Hybrid Inverter

Designed for small and medium commercial sites, HITEK ENERGY 125KW 241KWH C& I Hybrid Energy Storage System offers a robust and intelligent energy storage solution. It efficiently manages energy consumption through peak shaving and provides reliable backup power during outages.

With its scalable capacity and advanced hybrid inverter, businesses can significantly reduce electricity costs and enhance their energy independence. This all-in-one system ensures optimized performance and long-term durability for various industrial and commercial applications.

Key Features

High Efficiency & Scalability

Solis’ 125kW hybrid inverter ensures intelligent grid/solar/battery management, while the modular HITEKESS high-voltage lithium batteries (241kWh in total) allow flexible expansion for future upgrading.

Intelligent Energy Management

Equipped with smart monitoring and remote management capabilities; allows for customizable charge/discharge schedules to optimize energy usage and reduce costs.

Seamless Backup Power

Keep your operations running smoothly during grid outages or unstable utility conditions, maximizing ROI with industry-leading round-trip efficiency.

Robust Safety & Durability

Built with a multi-level Battery Management System (BMS) for maximum cell protection; housed in an IP65-rated enclosure for reliable, long-term operation in diverse environments.
ESS Outdoor Cabinet Solution Optional

Mechanical Parameters

HITEKESS C& I Solar System Diagram

HITEKESS 125KW 250KW 500KW Solar System Configuration
Model	HT125KW-HY	HT250KW-HY	HT500KW-HY
600W Solar Panel N Type	204PCS	320PCS	480PCS
DC Combiner Box	1PC	4PCS	6PCS
Hybrid Inverter	125KW*1	125KW*2	125KW*4
Monitoring Device	1PC	2PCS	4PCS
LiFePO4 Battery	241.15KWH	482.304KWH	964.60KWH
MC4 Connector	60Pairs	120Pairs	240Pairs
*PV cable 14MM2**	1200M	2400M	4800M
Solar Installation Tool	1Set	1Set	1Set
Mounting Structure	Customized Designed Complete Set Roof/Ground Mounting Kits
*HITEK ENERGY — Better & Brighter Future* *We use ONLY Reliable Approved Equipment*

Products Details

N Type Solar Panel

HITEK ENERGY N Type 400-720Watt Available
TIER 1 Brand: TW Solar Support
Higher Efficiency & Energy Yield
Better than P-type PERC modules
Lower Degradation & Longer Lifespan

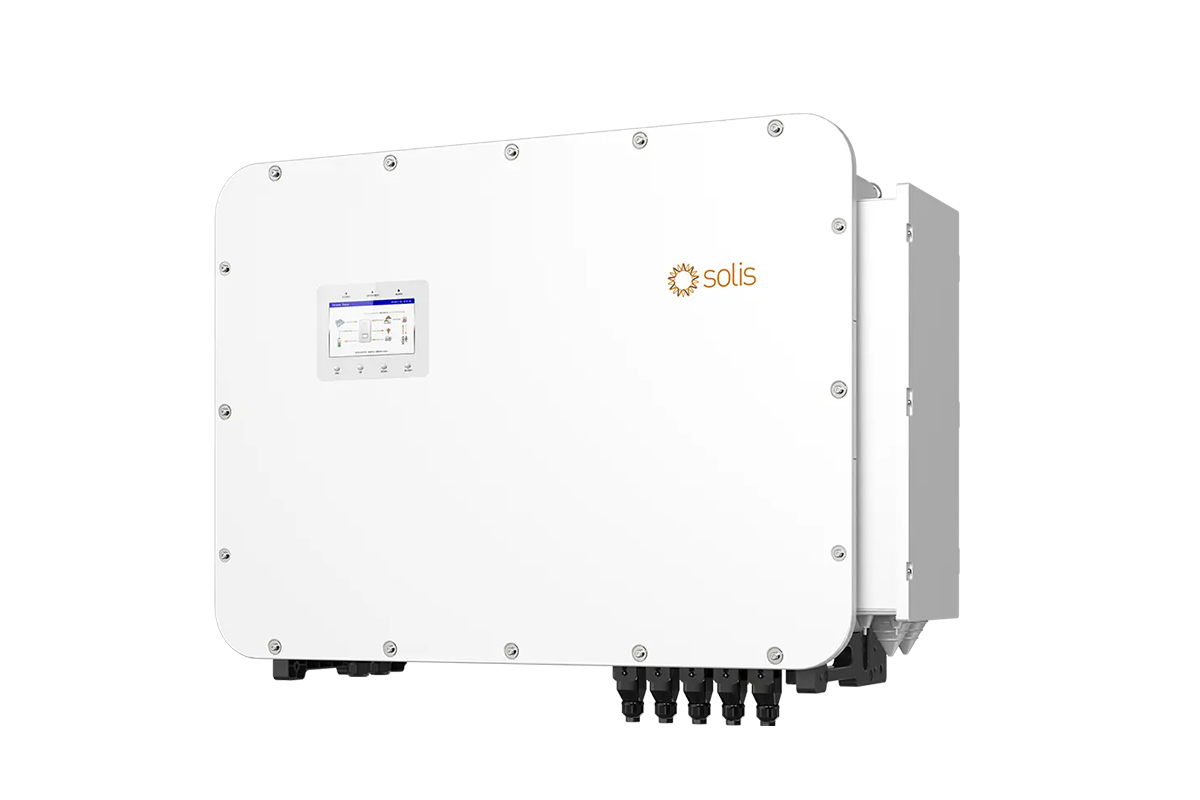

125KW-500KW Hybrid Inverter

Famous Brand of SOLIS, ATESS, DEYE, MEGAREVO
Auto On/Off Grid Switch
Support Parallel Expand
Support UPS function and black start
Support AC Coupling, Remote Control, Excess PV Design
Included isolation transformer, suitable for Industrial Inductive Load

Lithium Battery

15 units of HT51314-HV make 1 cluster of 241KWH storage
Flexible voltage and power combination, suitable for all types of inverters.
MAX Discharge 180A
HITEKESS HT51280-HV Battery Optional
Ultra-safe BMS with three-level architecture

Mounting Brackets

Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective).
Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency.
Weather Resistance: Engineered to withstand wind, snow, and seismic loads.
Easy Installation: Modular designs for quick assembly and flexibility.
Ground/Roof Adaptability: Suitable for diverse terrains and rooftops.

Solar System Debugging

Functional Checks: Verifying battery management, inverter operation, and system communication.
Performance Testing: Confirming energy storage capacity, charge/discharge efficiency, and grid interaction.
Safety Inspections: Testing fault protection, insulation, and thermal management.
Simulated Conditions: Validating system stability under real-world load and weather scenarios.
