Containerized systems are pre-assembled and standardized, allowing for easy deployment and expansion by adding more units as needed.
Factory integration reduces on-site construction time and labor costs, while standardized components simplify maintenance.
Their compact, mobile design enables quick transportation and installation in diverse locations, including remote or temporary sites.
The enclosed container structure provides enhanced safety, weather resistance, and thermal management for sensitive battery systems.
| Battery Part | ||||
| Model | HT20FT | Each Module Nominal Voltage | 51.2V | |
| Cell Chemistry | LFP | Each Module Capacity | 280AH | |
| Each Module Energy | 14.336KWH | Each Module Dimension (W*D*H) | 434*885*238.2MM（±5） | |
| Each Module Weight | 110KG | Battery Module Qty In Series (Optional) | Standard 15pcc per cluster | |
| Total Capacity | 1075KWH | Each Cluster Voltage | 768V | |
| Fire Fighting | Inside | Air Conditioner | Inside | |
| Charge/Discharge Current | 160A | Working Temperature | Charge:0～55℃ / Discharge:-20～55℃ | |
| Humidity | 5%～85%RH | Altitude | ≤3000M | |
| IP Rating of Enclosure | IP20 | Installation Way | Rack-Mounted | |
| Storage Terperature | 0～35℃ | Recommend Depth of Discharge | 90% | |
| Cycle Life | ≥6000 (25±2℃/0.5C/EOL70% | Certification | CE IEC62619 UN38.3 | |
| Inverter Part | ||||

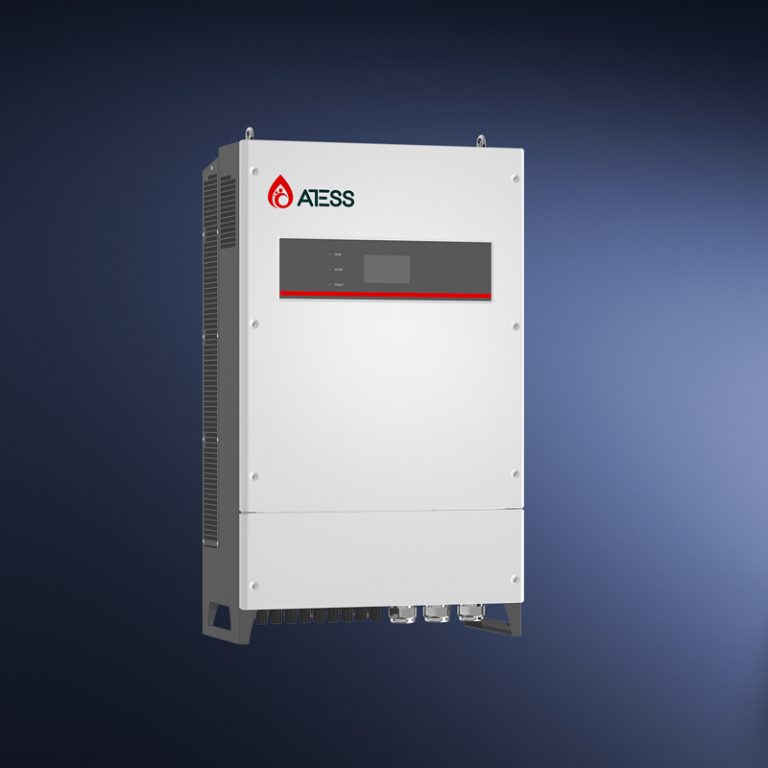

| Power | 500KW | Brand(Optional) | Megarevo,Atess,Sinexcel etc. | |
| Size | (600*720*2050)*2+ 1600*1050*2050MM |
Max.PV power (kW) | 720 | |
| Operation temperature (℃) | -30～55 | PV MPPT voltage range (V) | 250-850 | |
| AC Rated voltage(V) | 400 | AC Connection | 3W+N+PE | |
| Rated frequency (Hz) | 50/60HZ | Battery voltage range (V) | 500~850 | |
| Cooling | Air Cooling | BMS communication | RS485, CAN | |

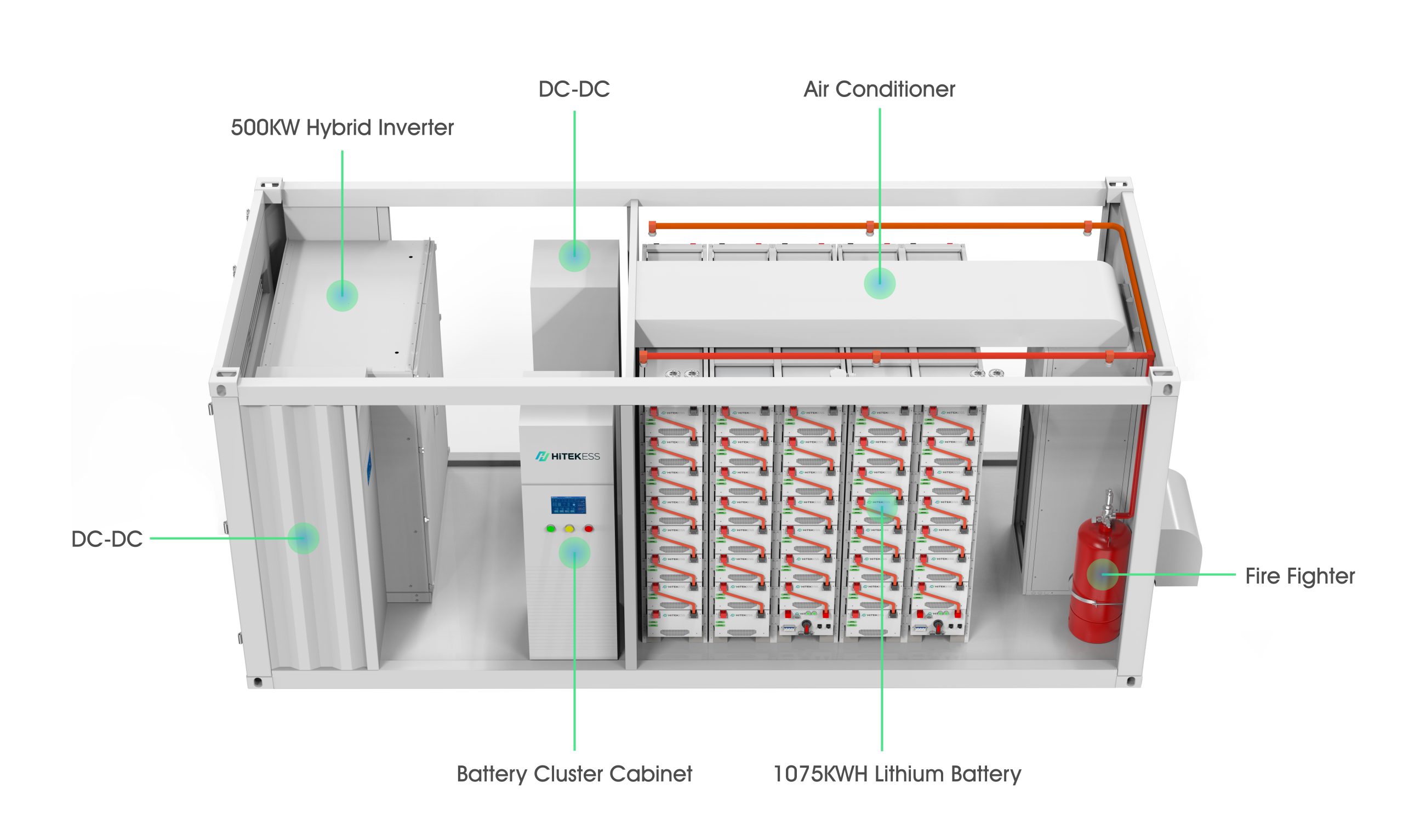

Container Inside Layout

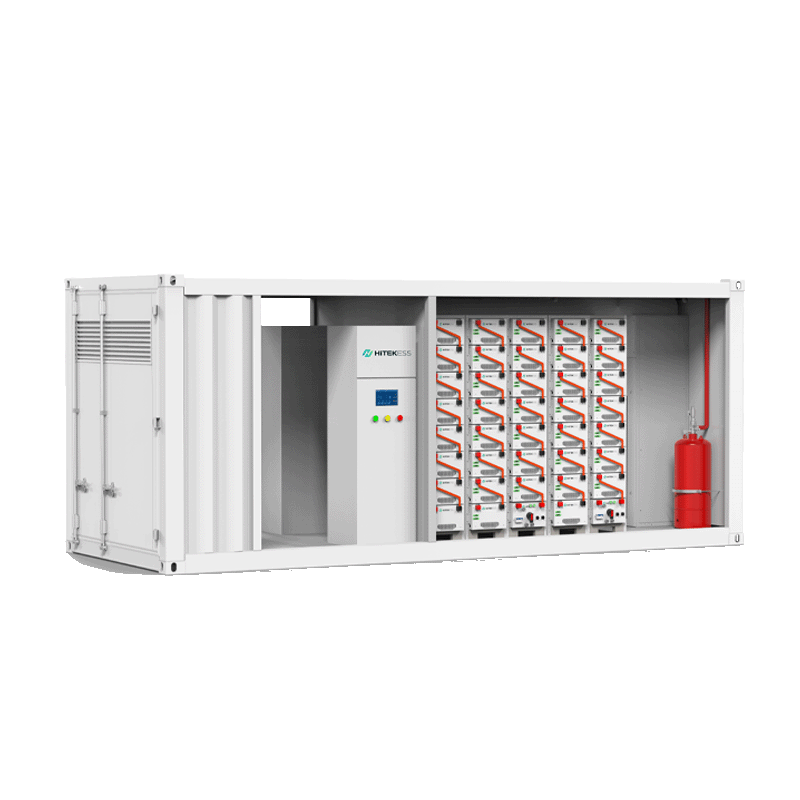

High Power & Energy Density – Combines a 500KW hybrid inverter with 1075KWh lithium battery storage in a compact 20FT container, maximizing space efficiency.
All-in-One Integration – Pre-assembled and pre-tested for plug-and-play deployment, reducing installation time and costs.
Hybrid Inverter Technology – Supports grid-tied, off-grid, and backup power modes, enabling seamless transition between solar, battery, and grid power.
Scalable Design – Flexible capacity expansion options to meet growing energy demands.
Advanced Battery Management System (BMS) – Ensures optimal performance, safety, and longevity of the lithium battery system.
Smart Energy Management – Compatible with energy monitoring and remote control for efficient load balancing and peak shaving.
Robust & Weatherproof – Designed for harsh environments with thermal management (cooling/heating) and IP-rated protection.
Fast Response & Grid Support – Provides frequency regulation, voltage stabilization, and black start capability.
