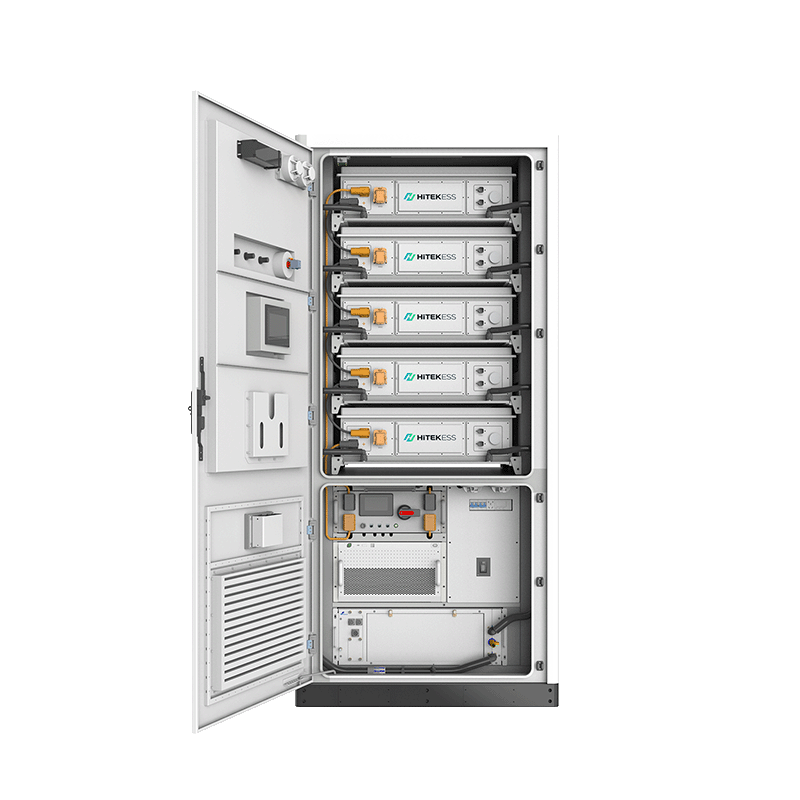

Compact liquid-cooled battery design maximizes storage capacity (233KWh) in a space-efficient outdoor cabinet, ideal for limited footprints.
Advanced liquid cooling ensures optimal temperature control, enhancing battery lifespan and safety even in extreme climates.
Seamless combination of 100KW PCS and battery system reduces installation complexity and saves deployment time.
Supports peak shaving, load shifting, and renewable smoothing, enabling versatile applications for commercial/industrial sites.
| Battery Part | ||||
| Model | HT233LC | Battery Working Voltage | 650~949V | |
| Working Temperature | -20-55℃ | AC Output Frequency/Voltage | 50/60Hz;380/400Vac | |
| Grid Type | 3P4W | Cabinet Dimension (W*D*H) | 1100*1500*2385MM | |
| Total Weight | 3000KG | Capacity(kWh) | 233KWH | |
| Maximum Cycle Efficiency | 92% | Communication | ETH/4G | |
| Operating Altitude(m) | ≤2000m | IP Level | IP54 | |
| Corrosion protection level | C4 | Installation | Ground | |
| Cell type | LFP 3.2V280Ah | Standard voltage(V) | 166.4V | |
| Each BAT Capacity(kWh) | 46.6KWH | Module size(W*D*H,mm) | 784*1160*242 | |
| Each Module weight(kg) | 323KG | Cycle life | ≥6000(@25℃±2℃,0.5C/0.5C,70%EOL) | |
| PCS Part | ||||
| Power | 100KW | Rated output current(A) | 144 | |
| Maximum number of parallel machines | 8 | Maximum output current(A) | 192 | |
| Peak Power | 1.1（long-term） 1.2（1min) | Operating temperature(℃） | -20~50(＞45℃ Downclocking) | |
| Communication | CAN,RS485,LAN | Maximum efficiency | ≥98.2% | |
