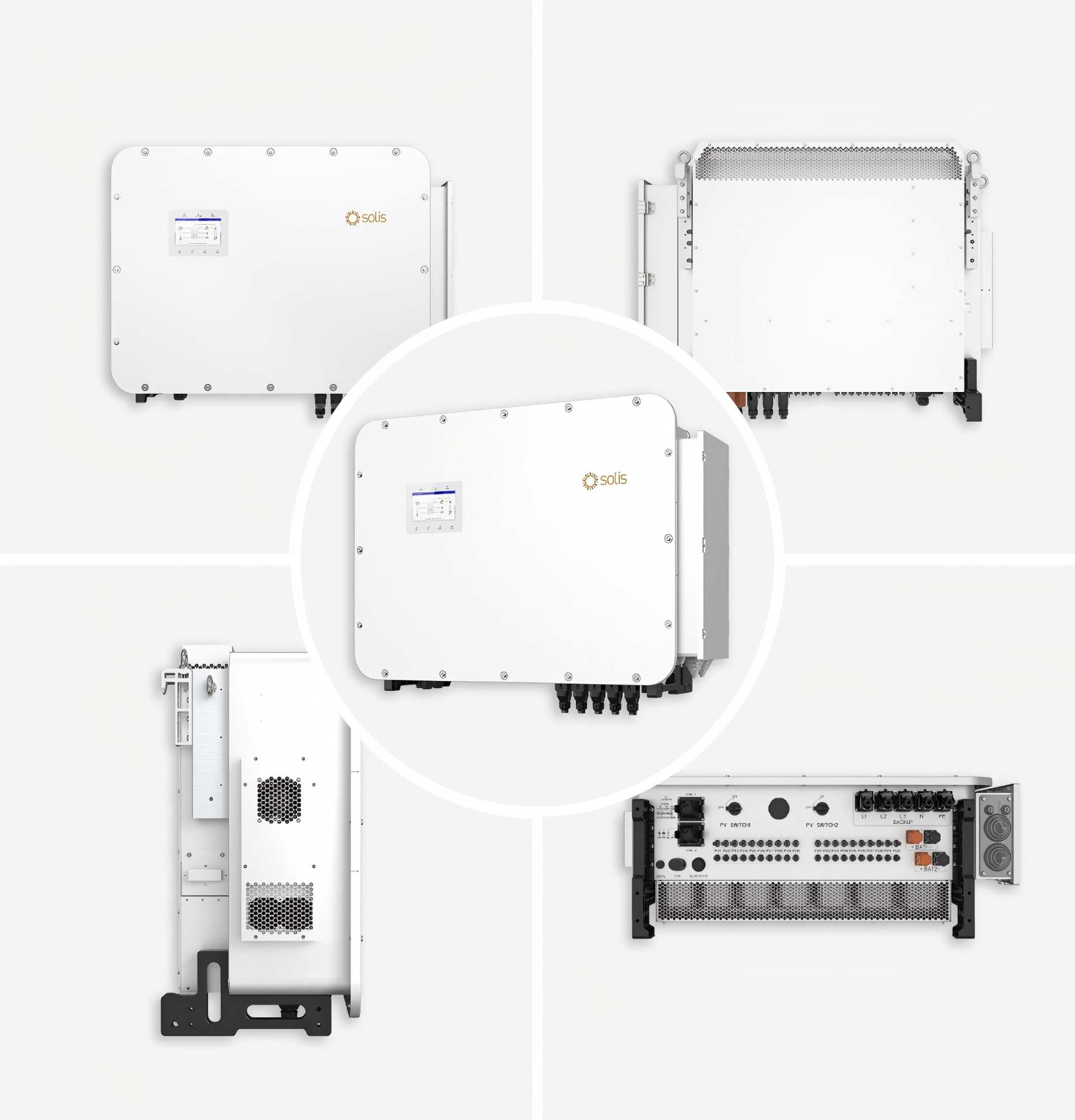

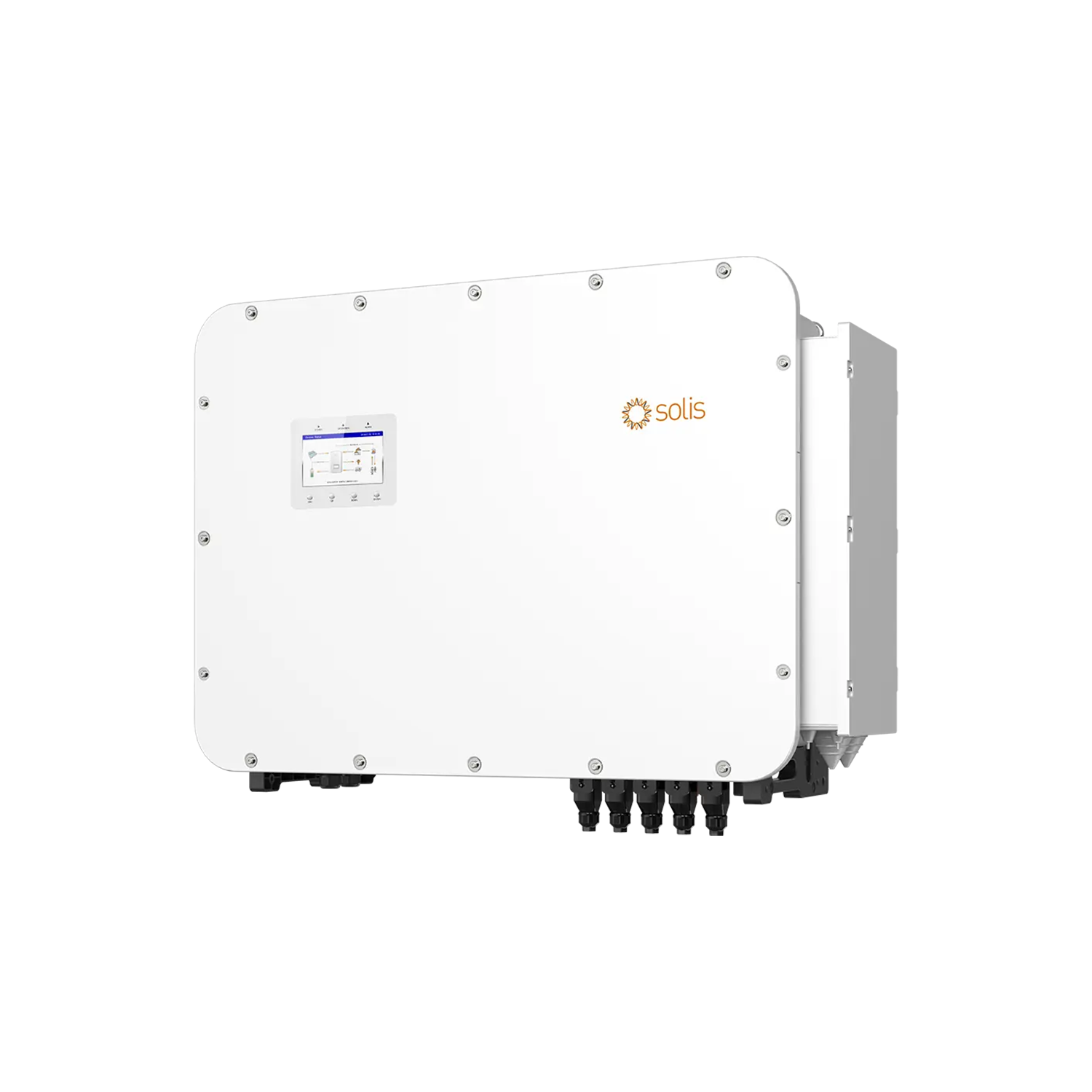

The SOLIS 125KW Hybrid Storage Inverter delivers advanced energy control for commercial and industrial applications. It supports high PV overloading—up to 200% of rated powe to maximize solar energy utilization. With a 200A battery current and dual independent battery connections, it enables rapid charging and flexible storage expansion. Designed for reliability, it ensures seamless grid-backup switching and intelligent power management. This inverter offers a future-proof solution to reduce energy costs and enhance sustainability. It supports max. 10 pcs in parallel connection for client’s future upgration.
Equipped with advanced grid-supportive functions like peak shaving and zero-power export. Its robust Emergency Power Supply (EPS) provides a stable and reliable off-grid power source for critical loads.
The 200% PV overloading design ensures your system captures more energy, especially during peak sun hours. This dramatically boosts ROI by utilizing more free solar power.
The system is support parallel expand, allowing future expansion- Max. 10 units in parallel with 1.25MW Output Power for on & off grid operation
Enables rapid charging with up to 200A current and provides the flexibility of two independent battery connections for scalable, adaptable energy storage.
| HITEK ENERGY 3 Phase Hybrid Energy Storage Inverters 75KW 100KW 125KW | |||
| Model | 75K | 100K | 125K |
| PV Input Data | |||
| Max. PV Open-Circuit Voltage |
1000V DC | 1000V DC | 1000V DC |
| Max. PV power | 150kWp | 200kWp | 240kWp |
| PV MPPT Voltage Range | 150V-950V DC | ||
| Number of MPPT | 10 | 10 | 10 |
| Battery Data | |||
| Battery Voltage Range | 300-950V | ||
| Max. Charge/Discharge Current | 200A/ 100A+100A | ||
| Number of Battery Ports | 2 | 2 | 2 |
| Communication | RS485/CAN | ||
| AC Output Data | |||
| Rated Power | 75kW | 100kW | 125kW |
| Rated Voltage/Range | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||
| Rated Frequency | 50/60Hz | ||
| Frequency Range | 47~53/57~63Hz | ||
| THDI | <3% | ||
| PF | ＞0.99 （0.8 lagging~0.8 leading） | ||
| General Info. | |||
| Protection Degree | IP66 | ||
| Noise Emission | <65dB(A)@1m | ||
| Operating Temperature | -25 °C~+60 °C | ||
| Cooling Concept | Intelligent fan cooling | ||
| Dimension (W/H/D) | 1174*814*400mm | 1174*814*400mm | 1174*814*400mm |
| Weight | 170kg | 170kg | 170kg |
| Topology | Transformerless | ||
| Certificate | CE , EN IEC 61000-6-4:2019 , EN 61000-3-12:2011 , EN IEC 61000-3-11:2019 , EN IEC 61000-6-2:2019 , EN62109-1:2010 , EN62109-2:2011 , VDE0126 | ||
| HITEK ENERGY — Better & Brighter Future We use ONLY Reliable Approved Equipment |
|||
✔ Industry-Leading Efficiency — Advanced MPPT & hybrid inverter technology
✔ Reliable 24/7 Power — Seamless transition between energy sources
✔ Low Maintenance & Durable — Premium lithium batteries with a 10+ year lifespan
✔ Smart Energy Management — Real-time monitoring & adaptive performance
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Solar Equipments.
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
