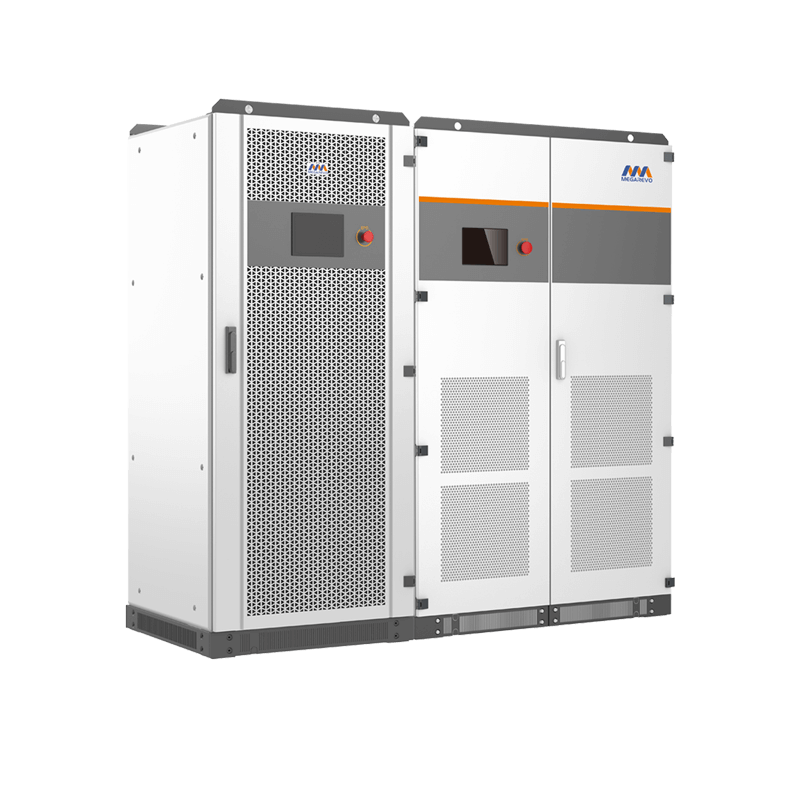

Engineered for demanding commercial, industrial (C&I), and utility-scale applications, Megarevo MPS30-500KW is the robust, intelligent core of modern, resilient, and cost-effective power systems.
Built for 24/7 operation, the MPS500KW delivers 500kW of pure sine wave power with exceptional durability and stability, ensuring maximum uptime for critical operations.
The MPS500KW empowers you to build an intelligent, adaptive, and resilient solar energy system. Reduce operational costs, enhance energy independence, ensure business continuity, and contribute to a sustainable future – all powered by Megarevo’s industrial-grade hybrid technology.
Multiple in parallel to form MW-scale system allowing future expansion while reducing reliance on fossil fuels and lowering carbon footprint
Extensive DC and AC side protections (over/under voltage, over current, short circuit, anti-island, insulation monitoring, temperature control, etc.) for system safety and longevity
Independent Maximum Power Point Trackers (MPPTs) allow flexible PV array configurations on different orientations/tilts, minimizing shading losses and maximizing solar harvest.
User-friendly local interface and robust remote monitoring/management via Ethernet/RS485/GPRS/4G. Integration with Megarevo or third-party energy management systems (EMS) and SCADA
| Bidirectional Battery Inverter | ||||||
| Model | MPS30 | MPS50 | MPS100 | MPS150 | MPS250 | MPS500 |
| PV Input | ||||||
| Max. PV Input Voltage (V) | 1000 | |||||
| Max.PV Power (kW) | 36/72 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| MPPT Module Quantity | 1/2 | 1/2 | 2/3/4 | 2/3/4 | 5/6 | 10/11/12 |
| MPPT Voltage Range (V) | 250-850 | |||||
| MPPT Voltage Range@full load (V) | 450-850 | |||||
| DC (Battery) | ||||||
| Battery Voltage Range (V) | 250-850 | 320-850 | 420-850 | 420-850 | 420-850 | 500-850 |
| Max. Charging Power (kW) | 36/72 | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| BMS Communication | RS485/CAN | |||||
| AC Output Data | ||||||
| Rated Power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW |
| Rated Voltage/Range | 400V/320V-460V | |||||
| Rated Frequency | 50/60Hz | |||||
| Frequency Range | 45~55/55~65Hz | |||||
| THDI | <3% | |||||
| PF | 1 lagging-1 leading (Settable) | |||||
| General Info. | ||||||
| Protection Degree | IP20 | |||||
| Noise Emission | <70dB(A)@1m | |||||
| Operating Temperature | -30 °C~+55 °C | |||||
| Cooling Method | Air Cooling | |||||
| Dimension (W/H/D) | 800*800*1900mm | 800*800*1900mm | 1200*800*2050mm | 1200*800*2050mm | (600*720*2050)*1+ 1200*800*2050mm |
(600*720*2050)*2+ 1600*1050*2050mm |
| Net Weight | 576/607kg | 720/750kg | 1120/1150/1180kg | 1250/1280/1310kg | 1980/2010kg | 3265/3295/3325kg |
| Build-in Transformer | YES | |||||
