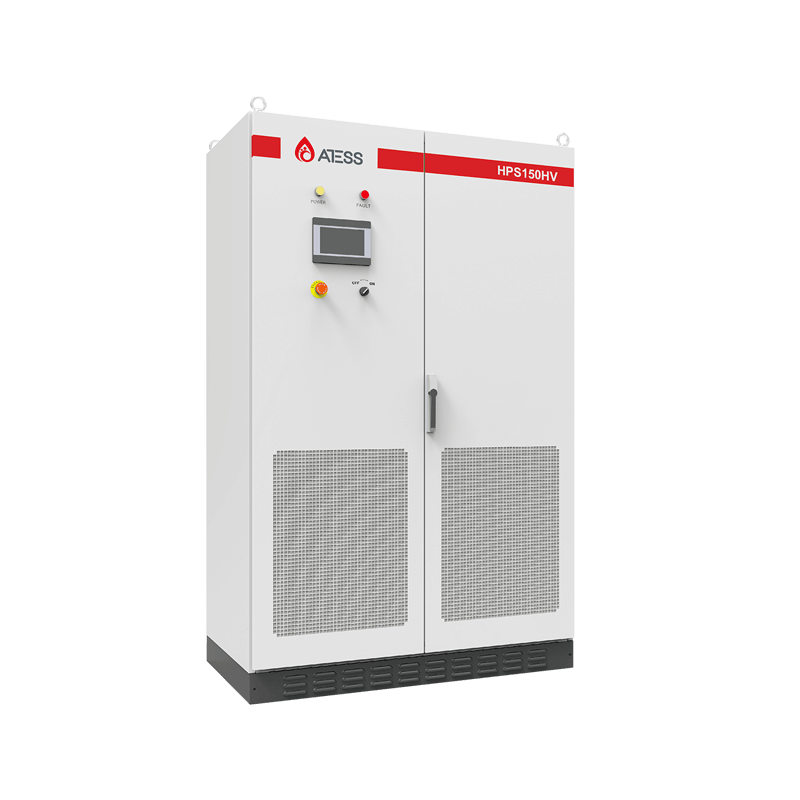

ATESS HPS100/150HV all in one energy storage hybrid inverter intergrates pv inverter, charge controller, and grid management in a single ruggedized unit, slashing installation complexity by 50% for medium-scale projects. Compared with HPS100/150, it’s with 2 MPPTs to improve the solar power generation efficiency. With support for up to 8 units in parallel (1.2MW in total), it grows seamlessly alongside your energy needs, ideal for medium C&I applications like factories, shopping malls, and micro grids reducing demand charges or needing peak shaving.
600-900V Battery voltage to expand battery configuration flexibility, improve system efficiency
Seamless switching between on and off-grid transfer within 10ms, stable and uninterrupted power supply
The system is support parallel expand, allowing future expansion while reducing reliance on fossil fuels and lowering carbon footprint
Dry contact output, support remote control of DG
| High Voltage All-in-one Hybrid Inverter | ||||
| Model | HPS100HV | HPS150HV | HPS100 | HPS150 |
| PV Input Data | ||||
| Max. PV Open-Circuit Voltage |
1500V DC | 1500V DC | 1000V DC | 1000V DC |
| Max. PV power | 150kWp | 225kWp | 150kWp | 225kWp |
| PV MPPT Voltage Range | 900V-1300V DC | 480V-800V DC | ||
| MPPT Number | 2 | 1 | ||
| Battery Data | ||||
| Battery Voltage Range | 600-900V | 352V-600V | ||
| Max. Charge Current | 187A | 280A | 300A | 450A |
| Max. Discharge Current | 183A | 275A | 313A | 467A |
| Communication | RS485/CAN | |||
| AC Output Data | ||||
| Rated Power | 100kW | 150kW | 100kW | 150kW |
| Rated Voltage/Range | 400V/360V-440V | |||
| Rated Frequency | 50/60Hz | |||
| Frequency Range | 45~55/55~65Hz | |||
| THDI | <3% | |||
| PF | 0.8 lagging~0.8 leading | |||
| General Info. | ||||
| Protection Degree | IP20 | |||
| Noise Emission | <65dB(A)@1m | |||
| Operating Temperature | -25 °C ~ +55 °C | |||
| Cooling Method | Forced-air | |||
| Dimension (W/H/D) | 1200*1900*800mm | 1200*1900*800mm | 1200*1900*800mm | 1200*1900*800mm |
| Weight | 948kg | 1230kg | 948kg | 1230kg |
| Build-in Transformer | YES | |||
| HITEK ENERGY — Better & Brighter Future We use ONLY Reliable Approved Equipment |
||||
✔ Industry-Leading Efficiency — Advanced MPPT & hybrid inverter technology
✔ Reliable 24/7 Power — Seamless transition between energy sources
✔ Low Maintenance & Durable — Premium lithium batteries with a 10+ year lifespan
✔ Smart Energy Management — Real-time monitoring & adaptive performance
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Solar Equipments.
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
