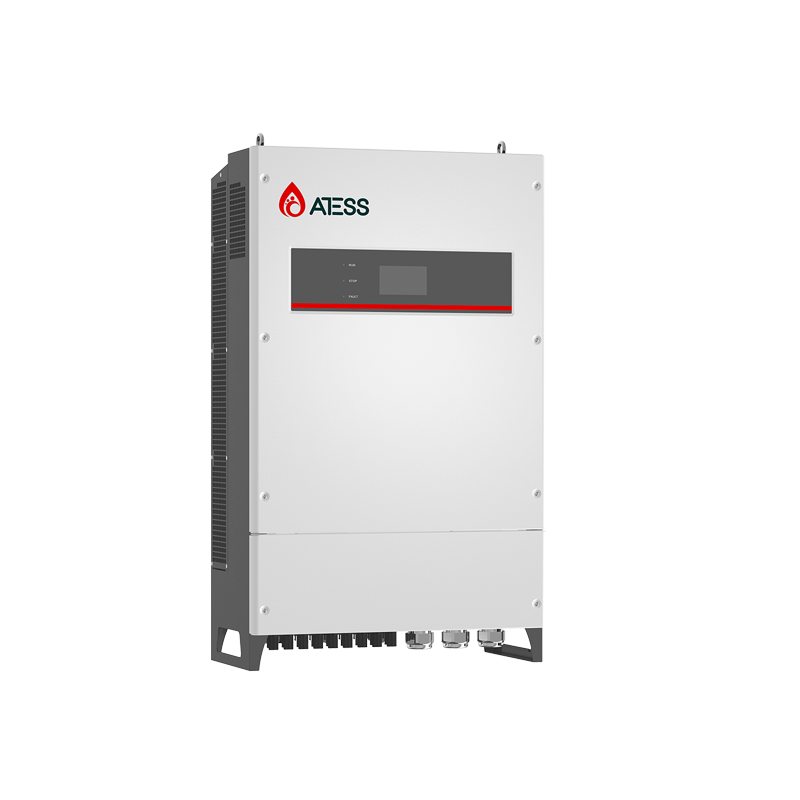

ATESS HPS30000/40000/50000TL combines pv inverter, charge controller, and grid management in a single ruggedized unit, delivering ultra-high efficiency (up to 98.6%) for seamless operation. With support for parallel connections up to 6 units (max. Up to 300KW), it easily scales to meet growing energy demands. This inverter is perfect for factories, farms, and commercial buildings looking to slash energy bills and ensure backup power. It’s the smart, future-proof core of any resilient energy system.
Compact Design with programmable working mode
Seamless switching between on and off-grid transfer within 10ms, stable and uninterrupted power supply
The system is support parallel expand, allowing future expansion- Max. 6 units in parallel with 300KW Output Power for on&off grid operation
Dry contact output, support remote control of DG
| High Voltage All-in-one Hybrid Inverter | |||
| Model | HPS30000TL | HPS40000TL | HPS50000TL |
| PV Input Data | |||
| Max. PV Open-Circuit Voltage |
1000V DC | 1000V DC | 1000V DC |
| Max. PV power | 45kWp | 60kWp | 75kWp |
| PV MPPT Voltage Range | 125V-850V DC | ||
| Number of MPPT | 3 | 3 | 3 |
| Battery Data | |||
| Battery Voltage Range | 260-700V | ||
| Max. Charge/Discharge Current | 100A | ||
| Max. Charge/Discharge Power | 30kW | 40kW | 50kW |
| Communication | RS485/CAN | ||
| AC Output Data | |||
| Rated Power | 30kW | 40kW | 50kW |
| Rated Voltage/Range | 400V/360V-440V | ||
| Rated Frequency | 50/60Hz | ||
| Frequency Range | 47~53/57~63Hz | ||
| THDI | <3% | ||
| PF | 0.8 lagging~0.8 leading | ||
| General Info. | |||
| Protection Degree | IP54 | ||
| Noise Emission | <65dB(A)@1m | ||
| Operating Temperature | -25 °C~+55 °C | ||
| Cooling Method | Forced-air | ||
| Dimension (W/H/D) | 600*990*280mm | 600*990*280mm | 600*990*280mm |
| Weight | 90kg | 90kg | 90kg |
| Transfer between on/off grid | Automatic≤10ms | ||
| Certificate | CE , EN IEC 61000-6-4:2019 , EN 61000-3-12:2011 , EN IEC 61000-3-11:2019 , EN IEC 61000-6-2:2019 , EN62109-1:2010 , EN62109-2:2011 , NRS097-2-1:2017 | ||
| HITEK ENERGY — Better & Brighter Future We use ONLY Reliable Approved Equipment |
|||
✔ Industry-Leading Efficiency — Advanced MPPT & hybrid inverter technology
✔ Reliable 24/7 Power — Seamless transition between energy sources
✔ Low Maintenance & Durable — Premium lithium batteries with a 10+ year lifespan
✔ Smart Energy Management — Real-time monitoring & adaptive performance
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Solar Equipments.
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
