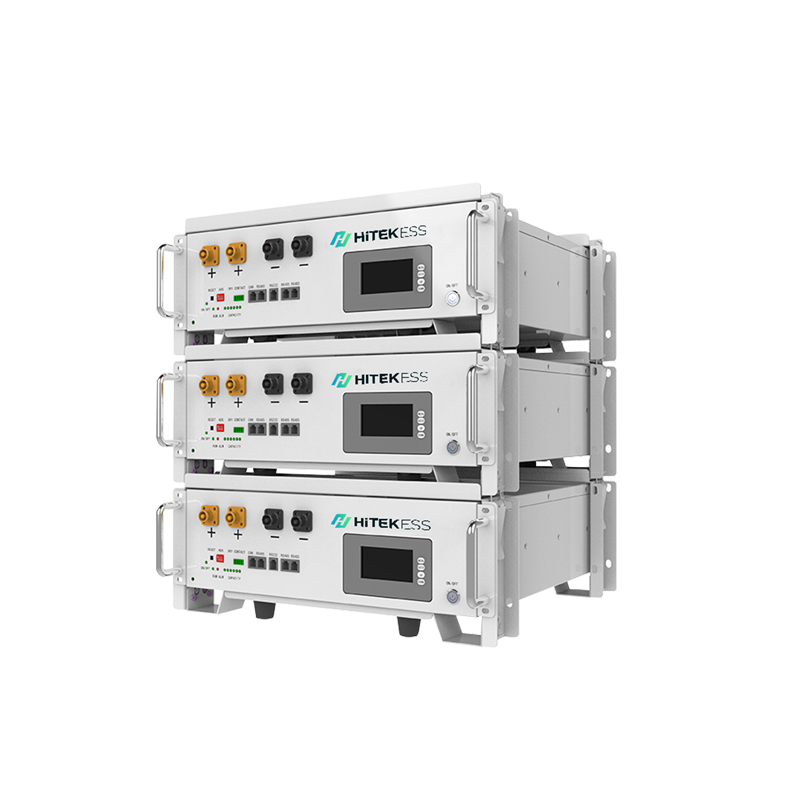

HT51100-LV

51.2V 100AH Low Voltage Lithium Battery 5KWH 10KWH 15KWH Home Solar System

5.12KWH

Rated Capacity

6000+

Cycles

HITEKESS 51.2V 100Ah low voltage lithium battery module (HT51100-LV) delivers reliable and safe energy storage with high efficiency and extended cycle life. Featuring advanced LiFePO4 (LFP) technology and built-in smart BMS, it ensures stable performance and full protection in compact & plug-and-play design. Ideal for residential solar systems, small off-grid setups, and backup power applications, this module enables flexible scalability to meet diverse energy needs.

Key Features

Ultra-High Energy Density

Maximizes power storage in a compact design, delivering superior performance for demanding applications.

Scalable & Modular Design

Flexible capacity expansion to meet diverse energy needs, from industrial to large-scale renewable systems.

Advanced Safety Protection

Built-in multi-layer safeguards (overcharge, short-circuit, thermal management) for reliable, hazard-free operation.

Long Lifespan & Durability

Engineered with premium Li-ion cells for 10+ years of stable service, reducing total cost of ownership.

Mechanical Parameters

Model	HT51100-LV	Module Nominal Voltage	51.2V
Cell Chemistry	LFP	Module Capacity	100AH
Module Energy	5.12KWH	*Module Dimension (WDH)*	480443133mm
Module Weight	43.40KG	BMS Monitoring Parameters	System voltage, Current, cell voltage, cell temperature, module temperature
Charge/Discharge Current	80A (Recommended) / 100A(Max)	Working Temperature	Charge: 0～60℃ / Discharge: -20～60℃
Humidity	15%-85% (No Condensing)	Altitude	≤3000M
IP Rating of Enclosure	IP20	Installation Way	Rack Mounted
Storage Terperature	-20°C~60°C	Recommend Depth of Discharge	90%
Cycle Life	> 6000 cycles @25°C±2°C, 80%DOD	Warranty	10 Years
Max. Number of Connection	16pcs	Communication	RS485/CAN
Max. Charge Voltage	56.8V	Min. Discharge Voltage	44.8V

Products Details

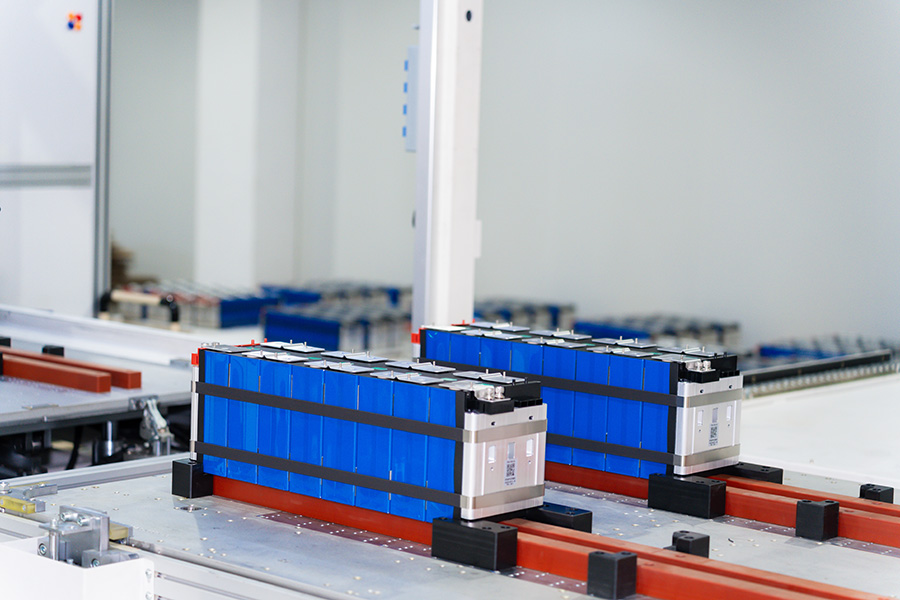

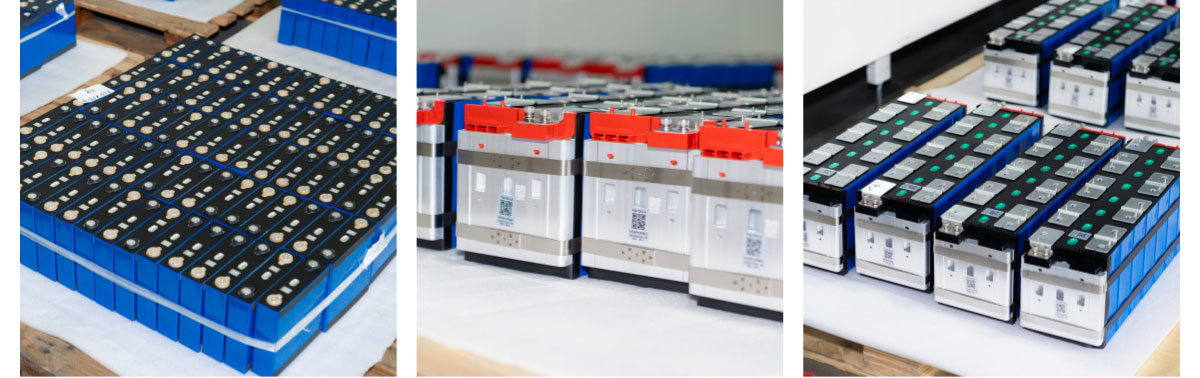

Cell Sorting&Testing

EVE/REPT/CORNEX/HIGEE Brands
Extremely long service life
Cycle life of more than 10,000 times
Multi-scenario application, taking into account 0.5C/1C usage scenarios, high safety and reliability

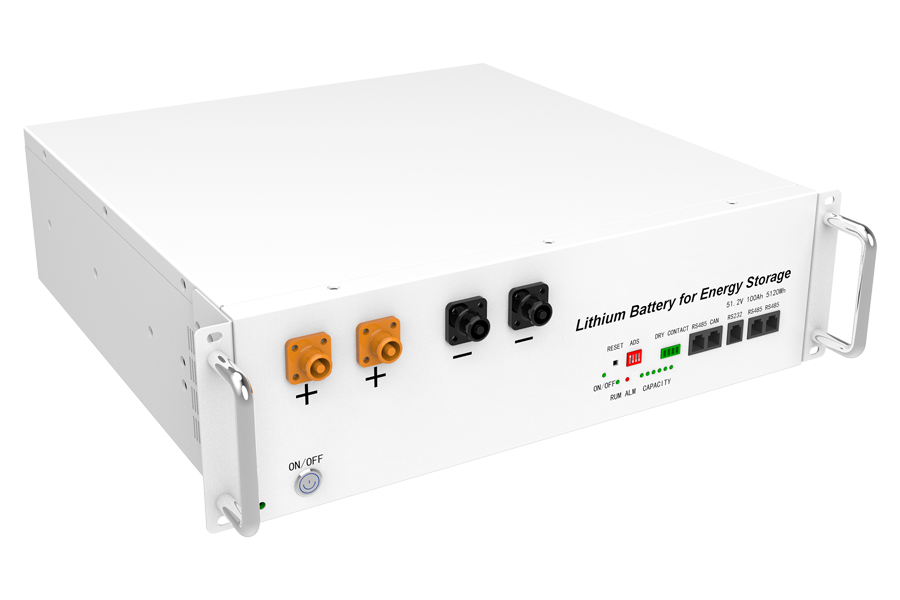

Low Voltage

Meet with LV inverter (40-60V range)
Max support parallel 16pcs to expand the capacity.

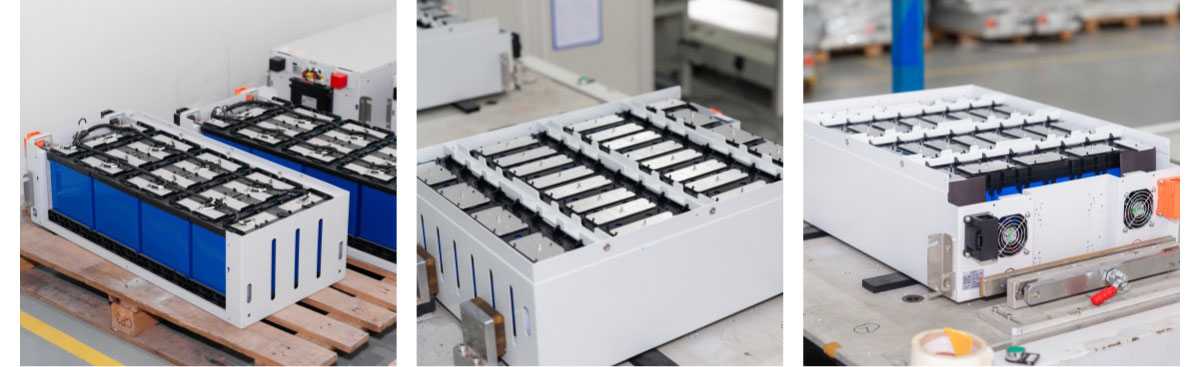

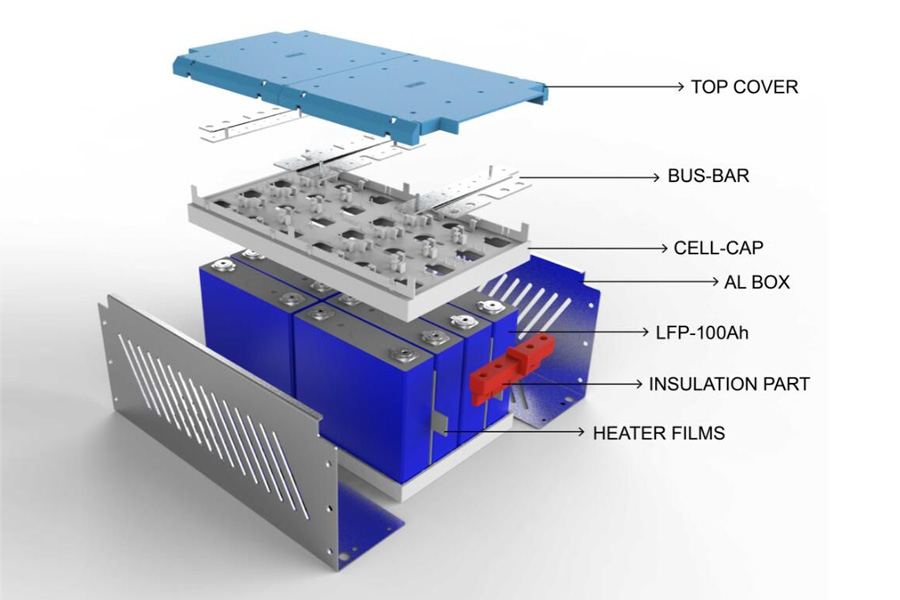

Battery Module Inner Structure

16S LiFePO4 (LFP) Battery cells in series
Battery Management System (BMS)
RS485 CAN Standard Communication Ports

BMS Integration

High stability
High precision detection
Temperature protection
Overvoltage protection
Adjustable overcurrent protection
Multiple sleep and wake-up methods

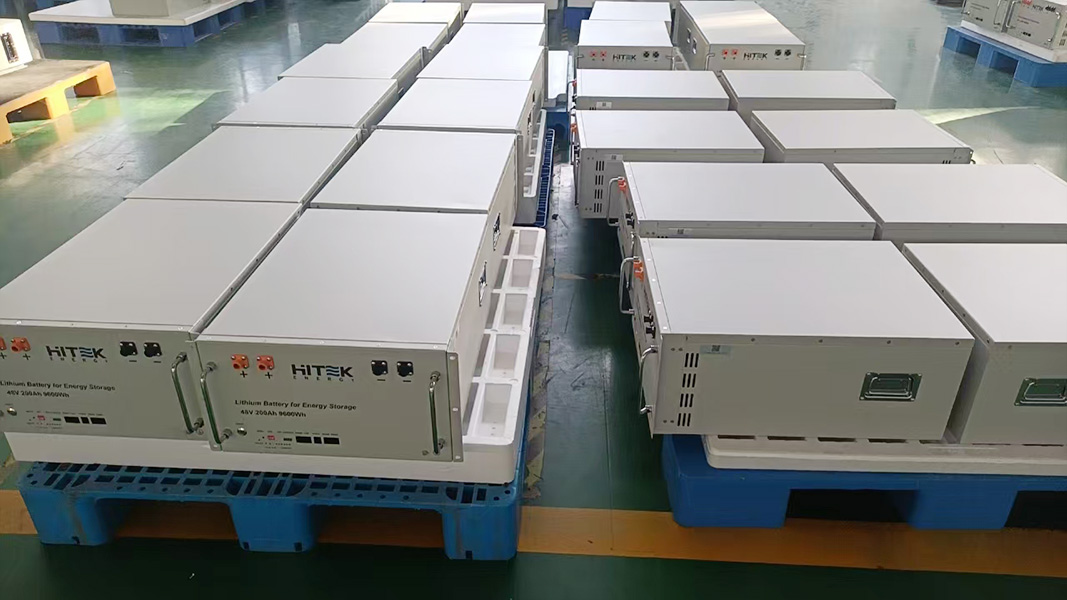

Inverters Brand Matched

DEYE, GROWATT, SOLIS, SOLAX,etc…LV inverter matched with our HT51100-LV
