Maximizes power storage in a compact design, delivering superior performance for demanding applications.
Flexible capacity expansion to meet diverse energy needs, from industrial to large-scale renewable systems.

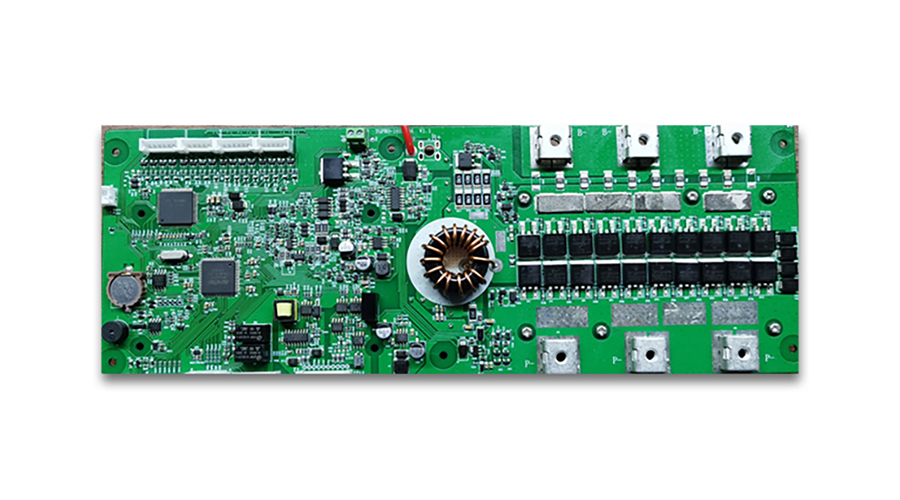

Built-in multi-layer safeguards (overcharge, short-circuit, thermal management) for reliable, hazard-free operation.

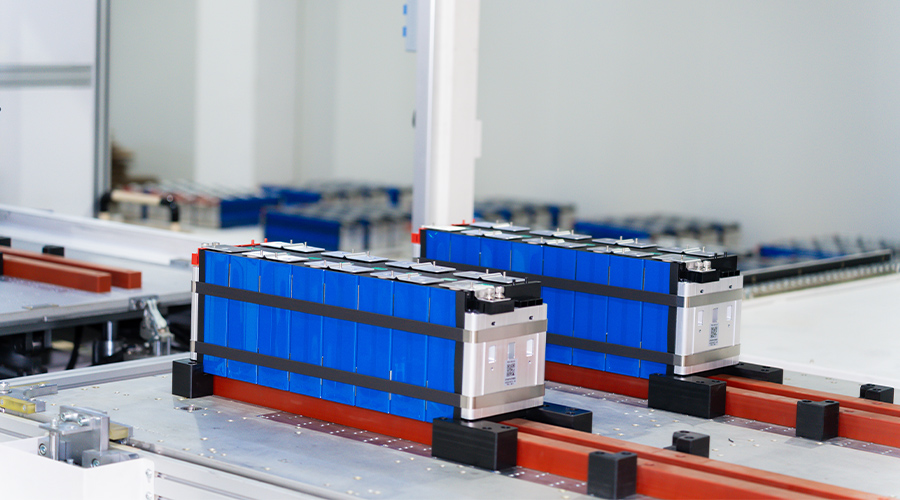

Engineered with premium Li-ion cells for 10+ years of stable service, reducing total cost of ownership.
| Model | HT51300S | Module Nominal Voltage | 51.2V | |
| Cell Chemistry | LFP | Module Capacity | 300AH | |
| Module Energy | 15.36KWH | Module Dimension (W*D*H) | 530*877*242mm | |
| Module Weight | 116KG | Battery Module Qty In Series (Optional) | 7-15pcc per cluster | |
| Charge/Discharge Current | 150A | Working Temperature | Charge:0～55℃ / Discharge:-20～55℃ | |
| Humidity | 5%～85%RH | Altitude | ≤3000M | |
| IP Rating of Enclosure | IP20 | Installation Way | Free Stand | |
| Storage Terperature | 0～35℃ | Recommend Depth of Discharge | 90% | |
| Cycle Life | ≥6000 (25±2℃/0.5C/EOL70% | Certification | CE IEC62619 UN38.3 | |
| Max. Number of connection | 16pcs | Communication | RS485/CAN | |
| Max. charge voltage | 58.4V | Min. Discharge Voltage | 40V |
Whatever the occasion, whether you’re buying for yourself or to distribute, we have it all! Send us inquiry to find out about our volume discounts.
