HT7612O-HV

76.8v 120AH High Voltage 1C

9.216KWH

Rated Capacity

6000+

Cycles

Chat Now

Download

Key Features

Ultra-High Energy Density

Maximizes power storage in a compact design, delivering superior performance for demanding applications.

Scalable & Modular Design

Flexible capacity expansion to meet diverse energy needs, from industrial to large-scale renewable systems.

Advanced Safety Protection

Built-in multi-layer safeguards (overcharge, short-circuit, thermal management) for reliable, hazard-free operation.

Long Lifespan & Durability

Engineered with premium Li-ion cells for 10+ years of stable service, reducing total cost of ownership.

Mechanical Parameters

Model	HT76120-HV	Module Nominal Voltage	76.8V
Cell Chemistry	LFP	Module Capacity	120AH
Module Energy	9.216KWH	Module Dimension (WDH)	820mm434mm238.5mm（±5）
Module Weight	87KG	Battery Module Qty In Series (Optional)	4-10pcs per cluster
Charge/Discharge Current	150A	Working Temperature	Charge:0～55℃ / Discharge:-20～55℃
Humidity	5%～85%RH	Altitude	≤3000M
IP Rating of Enclosure	IP20	Installation Way	Rack-Mounted
Storage Terperature	0～35℃	Recommend Depth of Discharge	90%
Cycle Life	≥6000 (25±2℃/0.5C/EOL70%	Certification	CE IEC62619 UN38.3

Battery Module Qty In Series (Optional)	4	5	6	7	8	9	10
System Nominal Voltage (V)	0	384	460.8	537.6	614.4	691.2	768
System Operating Voltage (V)	268.8～340.8	336～426	403.2～511.2	470.4～596.4	537.6～681.6	604.8～766.8	672～852
System Energy ( kWh)	36.86	46.08	55.30	64.51	73.73	82.94	92.16
System Usable Energy (kWh)	33.18	41.47	49.77	58.06	66.36	74.65	82.94
Dimension (WDH,mm)	5507001050	5507001260	5507001470	5507001680	5507001890	5507002100	5507002300
Weight Approximate (kg)	340	440	540	640	740	840	940

Products Details

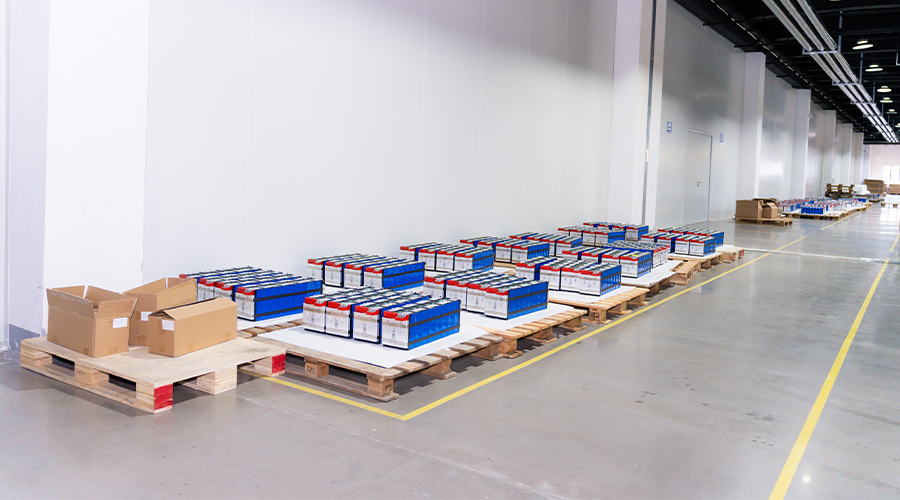

Cell Sorting&Testing

EVE/REPT/CORNEX/HIGEE Brands Extremely long service life Cycle life of more than 10,000 times Multi-scenario application, taking into account 0.5C/1C usage scenarios, high safety and reliability

Module Assembly

Laser welding,BMS Integration,Housing & Sealing,Aging & Final Testing

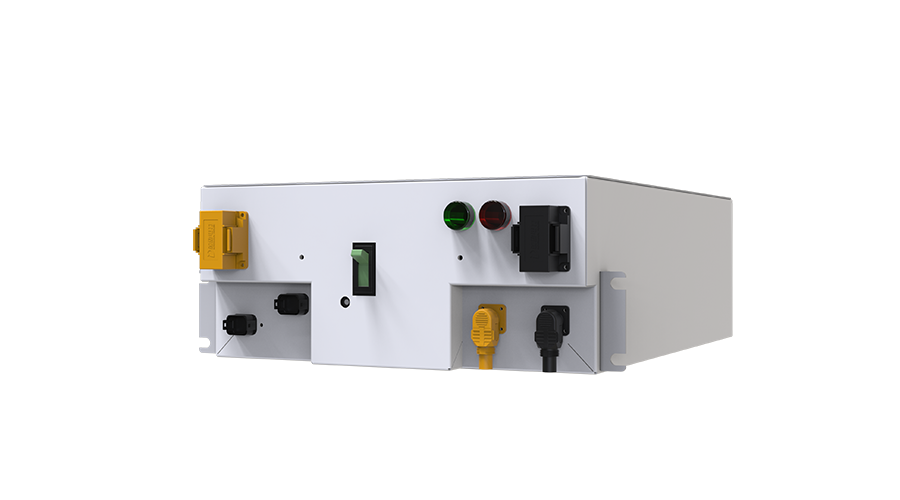

High-Voltage Box

The HV Box serves as the central power distribution and protection unit for a battery cluster, managing high-current pathways between modules, BMS, and external systems (e.g., inverters).

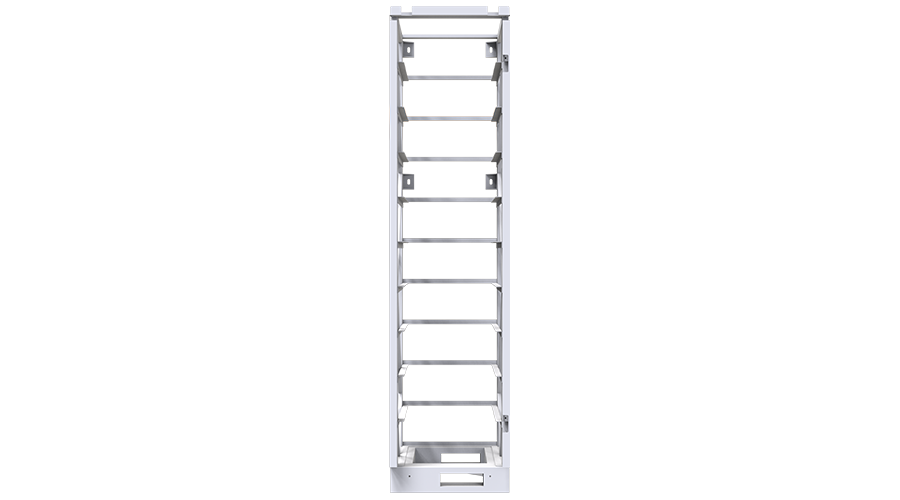

Battery Rack

Adopts high load-bearing and detachable method to save customers’ transportation space. Usually designed as 10 rows, the battery display screen also supports side hanging on the bracket

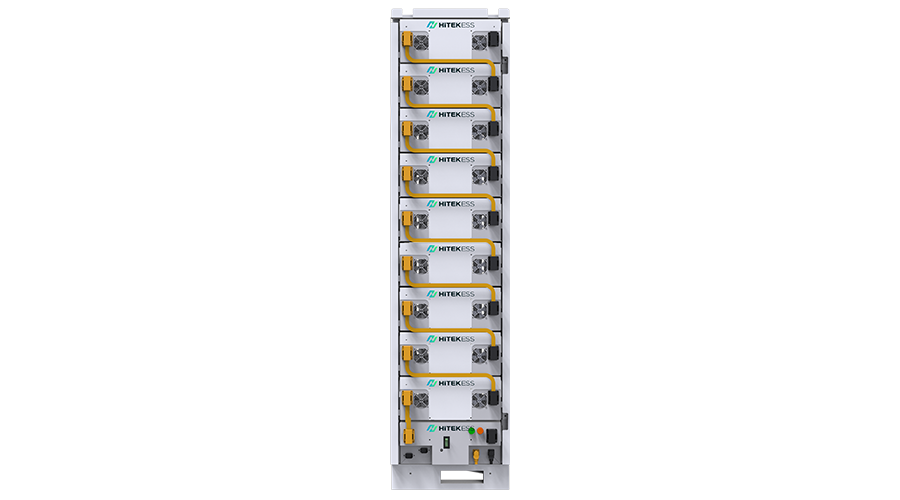

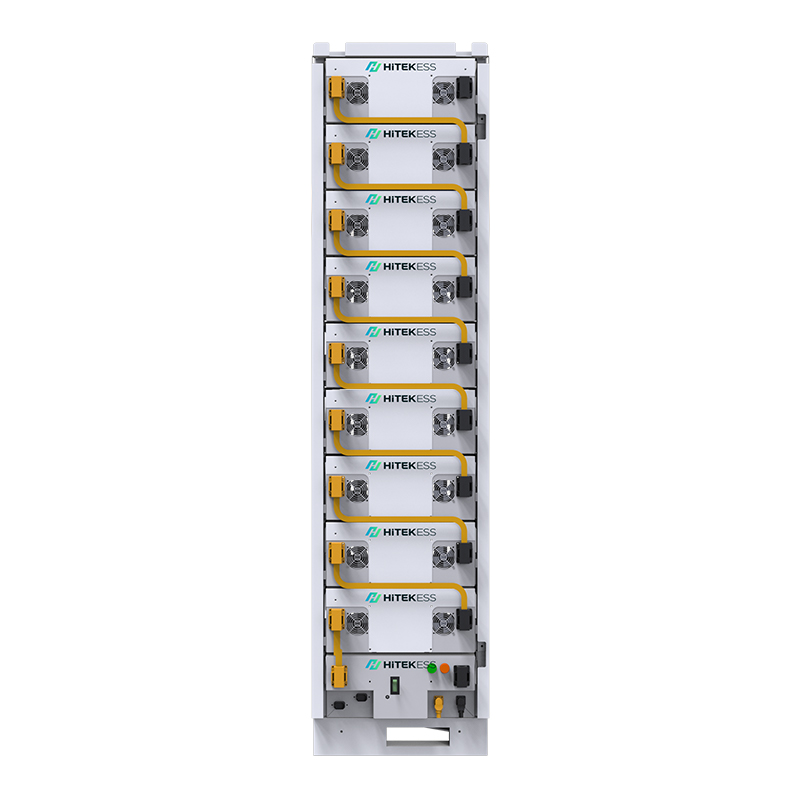

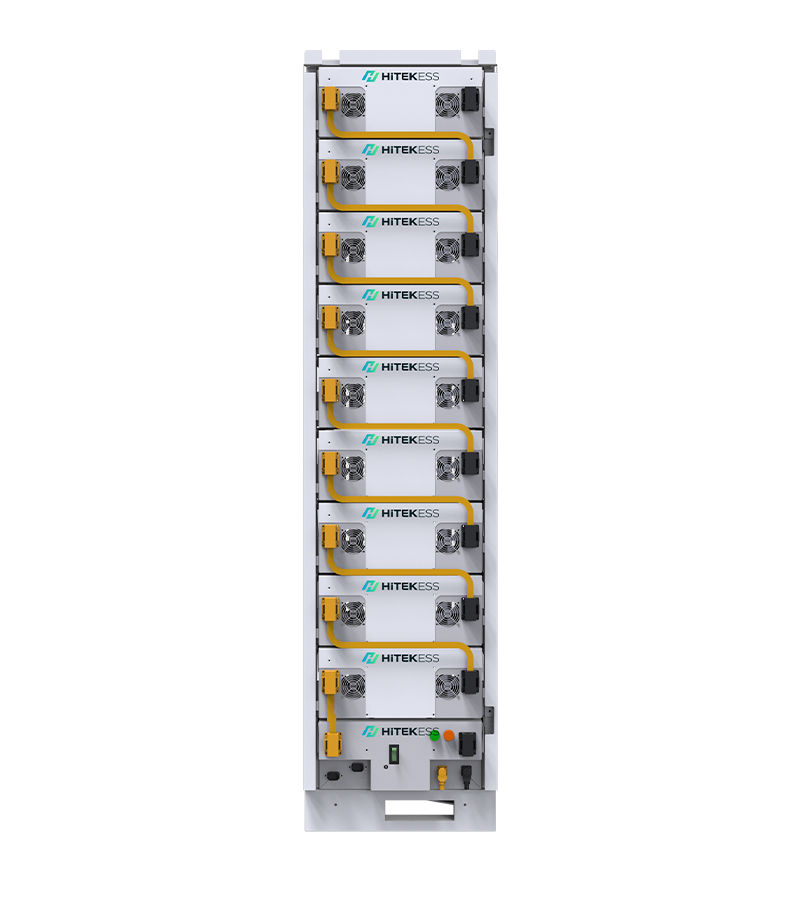

Battery Cluster

Usually 7-15 batteries form a cluster, with a capacity ranging from 100KWH-215KWH and a voltage of 358.4-768V. It is compatible with the voltage of mainstream inverter brands on the market, such as GROWATT, ATESS, MEGAREVO, AFORE, SRNE….

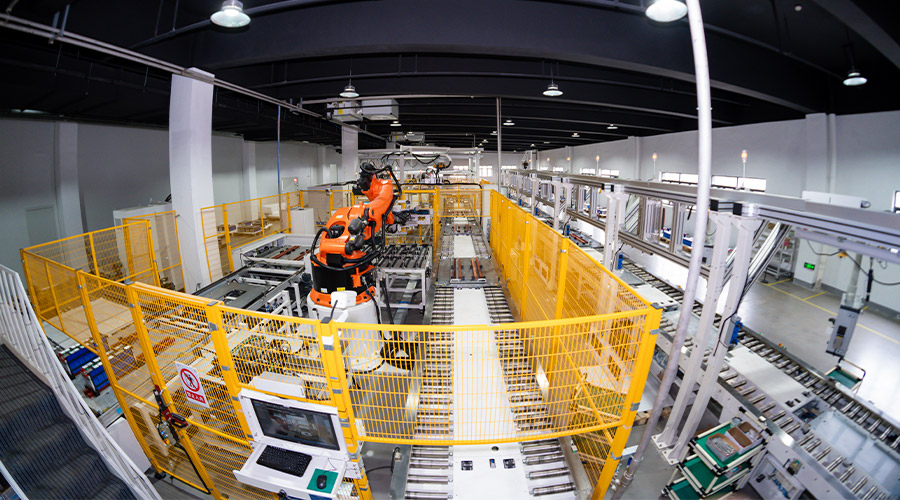

Fully automatic production line

Sufficient production capacity, compatible with 120AH/280AH/314AH module production
