BESS Transformer Sizing: Overload Harmonics and Reactive Power

BESS transformer sizing starts with the maximum apparent power at the grid connection, not just the battery energy rating. PCS active power, reactive power, power factor, overload duration, harmonics, ambient temperature, cooling method and future expansion all affect the transformer specification. A transformer sized only from nominal kW can run hot, limit dispatch or fail an interconnection study.

What the Transformer Must Carry

Use this checklist to collect the inputs before selecting a transformer rating or requesting a manufacturer calculation.

kW Is Not the Same as kVA

Transformers are rated in kVA because winding and core heating follow apparent power. For a BESS delivering 1,000 kW at 0.95 power factor, apparent power is about 1,053 kVA before auxiliary load and harmonic derating. If the PCS must also supply or absorb reactive power at the same time, the required kVA can be higher.

Use the worst permitted operating point, not the average dispatch point. A project may spend most of the day at 400 kW but still need 1,000 kW plus reactive support during a grid event. The transformer must be checked at that combined condition, with the stated ambient and cooling assumptions.

The load and duration assumptions should match the project’s battery storage sizing from a load profile so electrical equipment is not sized from a different operating scenario.

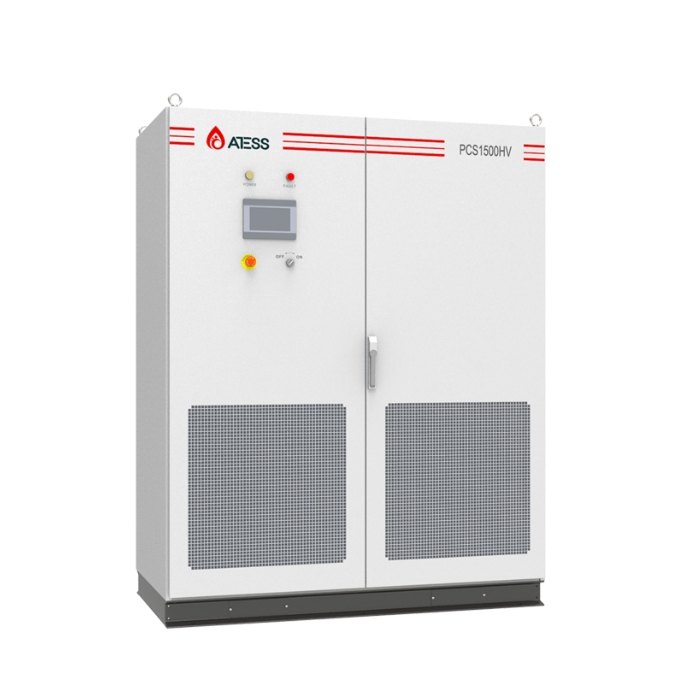

Reactive Power and Power Factor

Reactive power does not deliver net energy to the facility, but it still occupies transformer capacity. If the PCS operates at leading or lagging power factor, the transformer sees higher current than it would at unity power factor for the same kW. The design should state whether reactive power is required continuously, during faults or only on command.

A practical specification lists the P-Q capability curve, power factor range, voltage taps, impedance and short-circuit contribution. It also states how the EMS dispatch command interacts with PCS reactive power control. A mismatch can cause the PCS to hit a current limit before the requested active power is delivered.

Harmonics and Transformer Heating

Power converters draw non-linear current. Even when the grid waveform looks acceptable at the point of connection, harmonic current can increase winding eddy losses and local heating. The transformer review should use the expected harmonic spectrum, not only a single total harmonic distortion number.

Ask for the PCS harmonic current data at the operating points used in the interconnection study. Then check the transformer manufacturer’s limits, K-factor or harmonic derating method, impedance, neutral design where relevant and the expected short-circuit ratio. Filters, cable length and parallel transformers can change the result.

Overload and Ambient Conditions

Short-time overload can be useful for grid support, but it is not free capacity. The transformer schedule should state overload magnitude, duration, starting temperature, recovery time and repetition. A five-minute overload after a long high-load period is different from one after an hour at light load.

• Check altitude and ambient temperature derating.

• State whether cooling is ONAN, ONAF or another approved method.

• Review enclosure heat, solar gain and ventilation for outdoor units.

• Coordinate transformer overload with PCS current limits and protection trips.

• Reserve a clear limit for future capacity augmentation.

Transformer and PCS Protection Coordination

Protection settings must let the BESS perform its contracted function while clearing real faults quickly. Review transformer differential, overcurrent, earth fault, inrush restraint, temperature alarms and low-voltage ride-through coordination with PCS controls. A setting copied from a conventional load can trip during a permitted BESS ramp or reactive-power event.

These settings should be checked during the same acceptance workflow as the BESS factory acceptance test checklist and repeated at site after cable, tap and protection changes.

Measurement Boundaries and Efficiency

Transformer losses belong in the performance discussion when the guarantee is measured at the point of connection. No-load loss, load loss, winding temperature and auxiliary cooling energy can change round-trip efficiency. A PCS-terminal result should not be compared directly with a grid-meter result.

Use a consistent boundary when reviewing BESS round trip efficiency and energy losses so transformer and auxiliary losses are visible in the final project calculation.

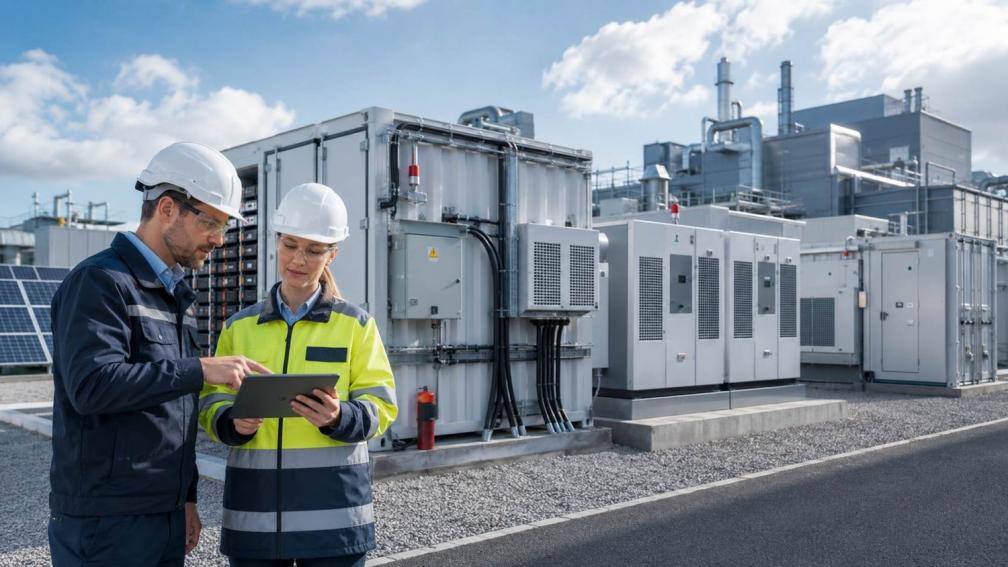

Testing Before Handover

Transformer testing should include ratio, winding resistance, insulation, vector group, phase sequence, protective earth, temperature sensors, tap position and protection trips. Under load, record voltage, current, kW, kVAr, power factor, harmonics and winding temperature at the same time as PCS output.

• Compare measured impedance and ratio with approved design data.

• Confirm tap changer position and control interlocks.

• Test alarms before high-power dispatch.

• Record harmonic data at full and partial load.

• Store test certificates with as-built protection settings.

Common Transformer Sizing Mistakes

• Sizing from battery kWh instead of maximum kVA.

• Ignoring reactive power during full active-power dispatch.

• Using average ambient conditions without derating.

• Treating harmonic distortion as a PCS-only issue.

• Testing the transformer separately without checking PCS protection coordination.

Про HITEK ENERGY

Компанія HITEK ENERGY CO., LTD. is an energy storage products manufacturer supporting battery energy storage projects from product selection through system integration. Its solutions are positioned for commercial, industrial and utility applications, where battery configuration, PCS coordination, transformer loading, safety controls and site requirements must be considered together. For project teams, this manufacturer-led approach provides a practical basis for matching storage products and electrical interfaces to the required power profile, protection strategy and operating conditions.

Висновок

BESS transformer sizing is a combined power-quality and thermal decision. Start with maximum kVA, then add reactive power, overload duty, harmonics, ambient derating, auxiliary load and future expansion. The final design should be backed by a coordinated PCS study, protection settings and site measurements. That process prevents a transformer from becoming the hidden limit on battery performance.

Часто задані питання

The answers below summarize the sizing and handover decisions that most often need to be documented in the project file.

How is a BESS transformer size calculated?

Calculate maximum apparent power from active and reactive power, then check overload duty, harmonics, ambient derating, auxiliary load and expansion requirements.

Why is BESS transformer sizing based on kVA?

Transformer heating follows apparent power and current. Reactive power increases kVA even when active power remains unchanged.

Do harmonics require transformer derating?

They can. Harmonic currents add losses and heating, so the design should use the PCS spectrum and the manufacturer’s approved derating method.

Can a BESS transformer be overloaded?

Some transformers allow short-time overload under stated temperature, duration and recovery conditions. The limits must be coordinated with PCS controls and protection.

What tests should be completed before BESS transformer handover?

Complete ratio, winding resistance, insulation, vector group, grounding, temperature, tap, protection and loaded power-quality tests, with certificates and raw data.
