Battery Storage 3Kw 5Kw 8Kw 10Kw 10 Kw 10000W Watt Hybird Solar Systems 5Kwh 10Kwh 15Kwh 20Kwh Off Grid Solar System 10Kw Complete

30KW/60KWH ALL IN ONE SYSTEM

Product Details What is HITEK Residential Energy Storage Solution?   HITEK residential solar energy storage solution includes battery system, battery storage inverter, PV components. Energy storage systems from HITEK can support your energy revolution. Whether for the apartment, house, outdoor camp or emergency with our energy storage systems you will always find an ideal solution.   How it Works?   Hitek System Configurations   Model HT10KW-HY HT12KW-HY HT15KW-HY Mono Half Cell Solar Panel 560W 18PCS 24PCS 27PCS DC Isolation Switch 3PCS 3PCS 4PCS Hybrid Inverter 10KVA 1PC 12KVA 1PC 15KVA 1PC LiFePO4 Battery 12.8KWH 15.36KWH 17.92KWH DC Cable 1*4MM2 300 Meters 400 Meters 500 Meters MC4 Connector 9 Pairs 12 Pairs 15 Pairs Mounting System Customized Designed Roof/ Ground Mounting Kits Solar Installation Tool 1 Set 1 Set 1 Set Model HT20KW-HY HT25KW-HY HT30KW-HY Mono Half Cell Solar Panel 560W 34PCS 45PCS 51PCS DC Isolation Switch 6PCS 8PCS 9PCS Hybrid Inverter 20KVA 1PC 25KVA 1PC 30KVA 1PC LiFePO4 Battery 25.6KWH 30.72KWH 35.84KWH DC Cable 1*4MM2 600 Meters 700 Meters 800 Meters MC4 Connector 16 Pairs 18 Pairs 21 Pairs Mounting System Customized Designed Roof/ Ground Mounting Kits Solar Installation Tool 1 Set 1 Set 1 Set

51.2V 280AH HV PACK

Three Phase EU Standard Grid Tied Inverter

40FT Container Solution

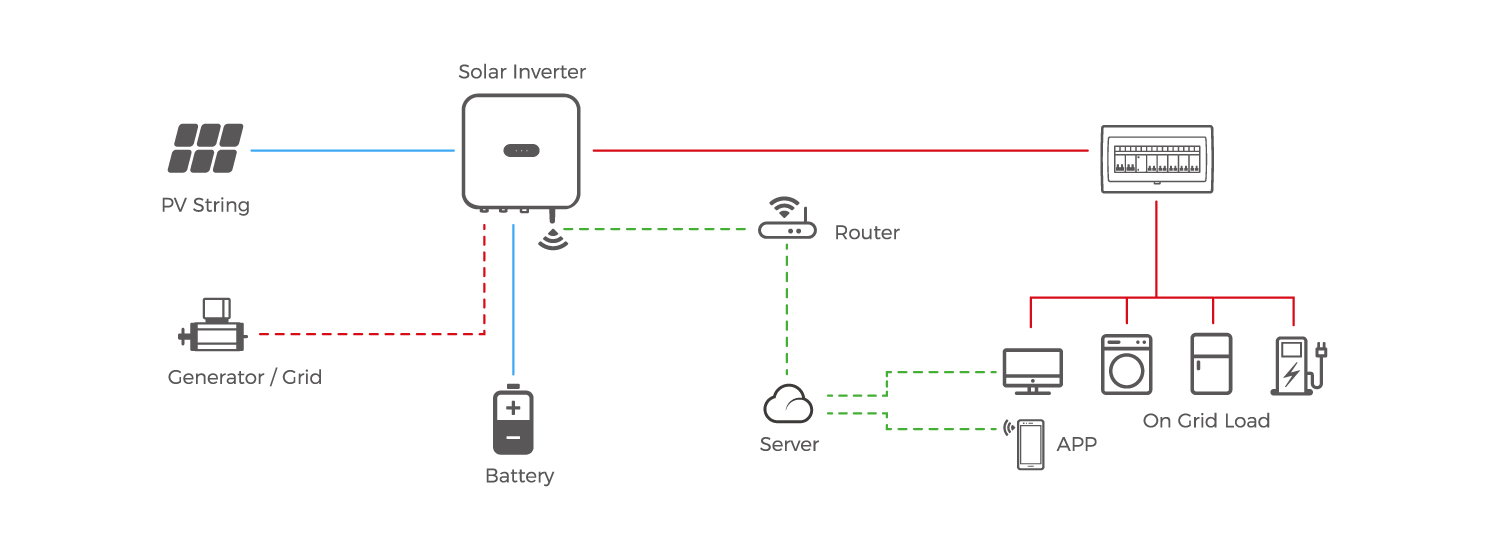

Product Description Hitek hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight. It's combination of off grid solar system & on grid solar power system allowing you to continue running on solar power even if the grid goes dark.   How is works? System Configurations     Model. No. HT30KW-HY HT50KW-HY HT100KW-HY HT150KW-HY HT250KW-HY HT500KW-HY System Parameter AC Rated Power 30KW 50KW 100KW 150KW 250KW 500KW Grid Voltage 380/400VAC Rated grid frequency 50/60HZ Max. Output (KVA) 33 55 110 165 275 550 Solar Panel Quantity 68PCS 102PCS 204OCS 289PCS 510PCS 1020PCS Model HT560M-72 Power in total 38.08KW 57.1KW 114.24KW 161.84KW 285.6KW 571.2KW Hybrid Inverter Quantity 1PC 1PC 1PC 1PC 1PC 1PC Model HTMPS30 HTMPS50 HTMPS100 HTMPS150 HTMPS250 HTMPS500 Rated current (A) 43A 72A 144A 216A 361A 722A Rated Power (KW) 30KW 50KW 100KW 150KW 250KW 500KW MPPT Voltage 250-850VDC Lithium Battery Quantity 8PCS 7PCS 14PCS 22PCS 33PCS 66PCS Model HT48100 HT48100 HT48280 HT48280 HT48280 HT48280 Nominal Voltage (Vdc) 51.2 51.2 51.2 51.2 51.2 51.2V Nominal Capacity (AH) 100 280 280 280 280 280 Voltage Range (Vdc) 44.8-57.6V Battery Bank Capacity 40.96KWH 100.352KWH 200.704KWH 315.392KWH 473.088KWH 946.176KWH BOS Battery Combiner Box 0 set 0 set 1 set 1 set 1 set 1 set PV Combiner Box 1 set 1 set 1 set 1 set 1 set 1 set PV Cable 4MM2 400m 600m 1200m 1700m 3000m 6000m MC4 Connectors 16 paris 24 pairs 48 pairs 68 pairs 120 pairs 240 pairs EMS BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) ATS ATS-30 (Optional) ATS-50 (Optional) ATS-100 (Optional) ATS-150 (Optional) ATS-250 (Optional) ATS-500 (Optional) Container / / 10ft (Optional) 10ft (Optional) 20ft (Optional) 20ft (Optional) General Data Operation Temperature Range -35~50ºC(>40ºC derating) Operation Humidity Range 0~95% (no condensation) Maximum Operation Altitude 2000m   HiTek Hybrid solar system is a great option for factoryowners who are not only looking to go solar to lower their electricity bill, but to ensure your property is powered during a power outage.   Complete Technical Support    HITEK Real Project Case

Product Details HiTek Hybrid storage system is a combination of solar energy storage with grid connection. It has battery backup to store power and has the ability to feed surplus electricity into main grid.   Configuration Details 50KW SOLAR SYSTEM CONFIGURATION No. Product name Specification mode Unit Quantity Remark 1 Solar Module BSM560M10-72HPH pcs 96 16pcs per string, 6 strings totally;Total 53.76KW 2 PV Combiner Box 6 input and 6 output pc 1 1000V open circuit voltage, componentshort circuit current 14.14A 3 Hybrid Inverter BSE50KH3 pc 1 3 Phase 400V 50Hz 4 groups of mppt2 strings per group 4 Lithium Battery 51.2V 280Ah(including BMU/Collecting harness/power cable) pack 7 7 pcs 1 group, totally 100.352kWh 5 High Voltage Control box piece 1   6 Battery Rack set 1 7 Battery-inverter cable piece 2 Estimated quantity: Current meets 100A, twobatteries per cluster 35mm2 cable 8 Remote Monitoring WiFi Monitoring set 1 equipped 9 MC4 Connectors  one-to-one correspondence pair 24   10 PV Cable PV1-F  1*4mm² meter 600   11 Mounting Kits Customized Designed Roof/ Ground Mounting Kits set 1   HITEK ENERGY Use ONLY Reliable Approved Equipment.

400v 4Phase Solar System
