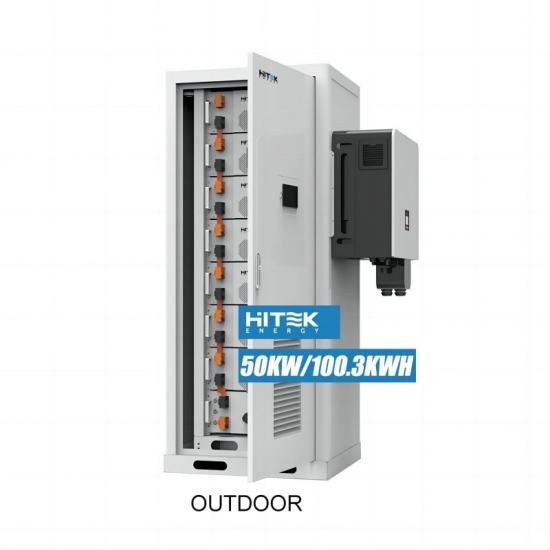

Hitek 50Kwh Outdoor 50Kw Solar System Set 50000W Watt Home Energy Complete Off Grid Solar Battery Storage Systems

Item NO.:
HT50KW-HY
Product Name:
home energy complete off grid solar battery storage systems for home
System Type:
Hybrid Solar Energy System
Output Voltage:
380V/400/415VAC 50Hz 3phase
Solar System Power:
50KW, 50000W
Technical Support:
Complete Professional Technical Guidance
Online Monitoring:
WiFi/LAN/GPRS
Battery Type:
Lithium Ion, LiFePO4 Battery, Lead Acid
Solar System Application:
Industrial/ Commercial Solar System

Description

Product Details

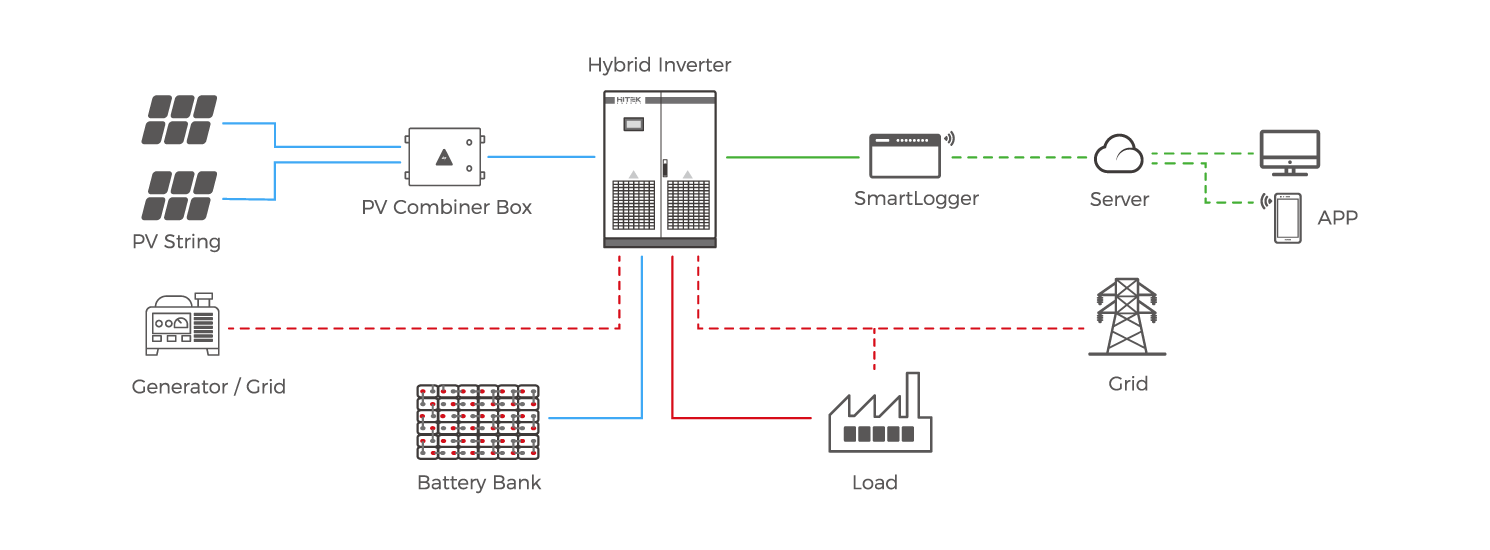

HiTek Hybrid storage system is a combination of solar energy storage with grid connection.

It has battery backup to store power and has the ability to feed surplus electricity into main grid.

Configuration Details

50KW SOLAR SYSTEM CONFIGURATION
No.	Product name	Specification mode	Unit	Quantity	Remark
1	Solar Module	BSM560M10-72HPH	pcs	96	16pcs per string, 6 strings totally; Total 53.76KW
2	PV Combiner Box	6 input and 6 output	pc	1	1000V open circuit voltage, component short circuit current 14.14A
3	Hybrid Inverter	BSE50KH3	pc	1	3 Phase 400V 50Hz 4 groups of mppt 2 strings per group
4	Lithium Battery	51.2V 280Ah(including BMU/Collecting harness/ power cable)	pack	7	7 pcs 1 group, totally 100.352kWh
5		High Voltage Control box	piece	1
6		Battery Rack	set	1
7		Battery-inverter cable	piece	2	Estimated quantity: Current meets 100A, two batteries per cluster 35mm2 cable
8	Remote Monitoring	WiFi Monitoring	set	1	equipped
9	MC4 Connectors	one-to-one correspondence	pair	24
10	PV Cable	PV1-F 1*4mm²	meter	600
11	Mounting Kits	Customized Designed Roof/ Ground Mounting Kits	set	1
HITEK ENERGY Use ONLY Reliable Approved Equipment.
