HITEK 40FT Container Lithium Battery Energy Storage System 500KW/1000KWH

40FT Container Solution

Item NO.:
HT-500/1000-EC
System Type:
Containerized ESS
Output Voltage:
380V/400V/415V/480V
Solar System Power:
250KW/500KWH
Online Monitoring:
Yes
Battery Type:
LiFePO4
Solar System Application:
Commericial

Inquire Now

Description

Features of HiTek Energy Storage Container System

1. Working Mode: Ongrid mode (Zero Export,Load First,Battery First,Economy Mode,Peak Shaving); Offgrid Mode;Generator Connection(Optional).
2. Features of BMS: Battery status monitoring ( Record & Storage, Operation Control,Insulation Detection,Dynamic Balancing Management,Protection Alarms,Communication)
3. Features of PCS: Wide Range of DC Input Voltage,Indoor/Outdoor Installation, Short Conversion Time Offull Power from Chagre to Discharge etc.

4. Fire Protection System
5. Air Condition System

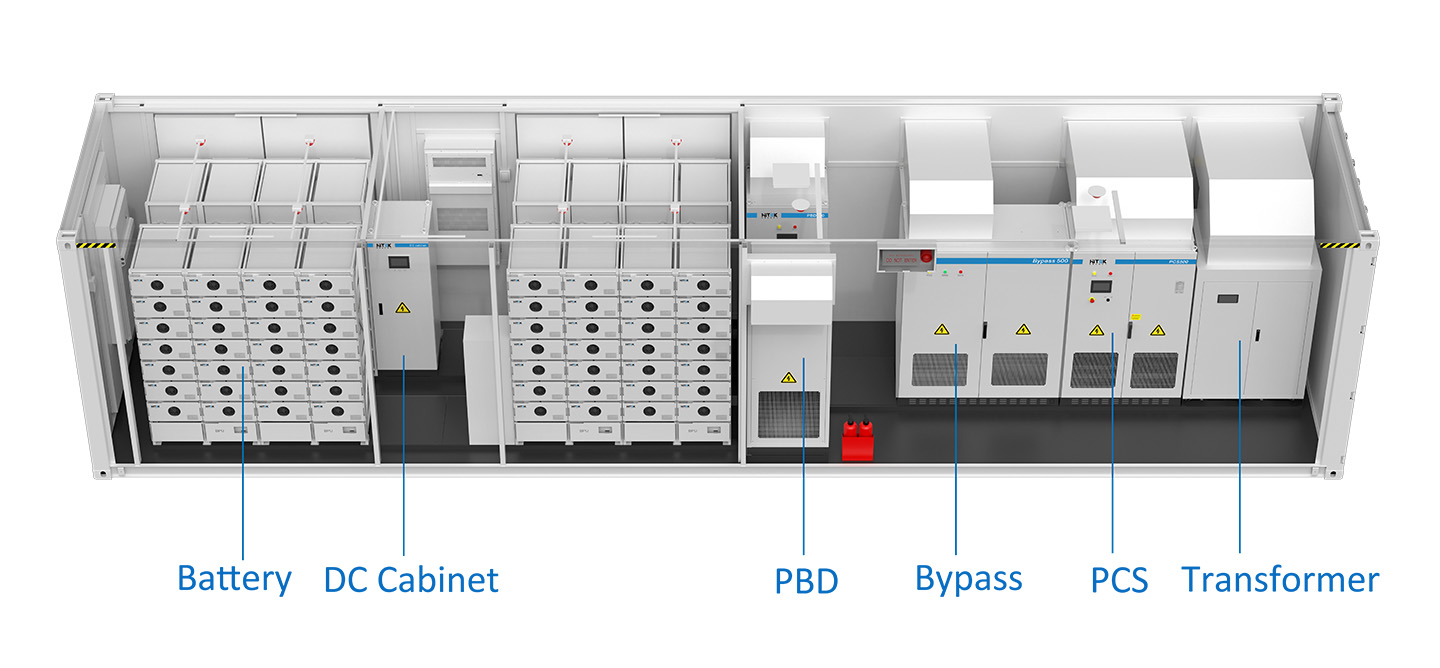

HiTek 40FT ESS Lithium Energy Storage Container Energy Storage System
Item	Description	Quanty(pcs)	Remarks
PV Solar Panel	HT560M-72H	960	12 pieces/string;A total of 80 strings; A total of 537.6kWp
Battery 2150.4KWH (1720.32KWH@80%DOD)Backup	Combiner Box 1500V-1500A	1	For combination of multiple battery racks
	280Ah Lithium Battery Module	150	Battery With BMU module 51.2V 280AH Capacity 14.3kWh
	Controller1500V 300A	10	High Voltage Controller Box
PV-Combiner Box	8 Inputs 1 Output	10	For combination of multiple PV module strings
PBD250		1	250kW solar charge controller
PCS500		1	250kW battery inverter
Isolation Transformer 500			500kVA Isolation Transformer
Bypass 250		1	Switch between on-grid and off-grid
EnerLog		1	Monitoring datalogger
40FT Container		1	For outdoor installation,IP54,including lighting, fire-resitance system,battery rack,air conditioner
