Products

Home Solar System Residential ESS

Hitek Hybrid 20Kw 30000W Renewable Power Energy Solar Panel 30Kw System Home Off Grid For Residential Use

30KW/60KWH ALL IN ONE SYSTEM

Item NO.:
HT30KW-HY
Product Name:
renewable power energy solar panel 30kw system home off grid for residential use
System Type:
Hybrid Solar Energy System for Home
Output Voltage:
380V/400/415VAC 50Hz 3phase
Solar System Power:
30KW, 30kw, 30000W
Technical Support:
Complete Professional Technical Guidance
Online Monitoring:
WiFi/LAN/GPRS
Battery Type:
Lithium Ion, LiFePO4 Battery, Lead Acid
Solar System Application:
Residential Solar Power System

Inquire Now

Description

Product Details

Hitek System Configurations

30KW SOLAR SYSTEM CONFIGURATION
No.	Product name	Specification mode	Unit	Quantity	Remark
1	Solar Module	BSM560M10-72HPH	pcs	64	16pcs per string, 4 strings totally; Total 35.84KW
2	PV Combiner Box	4 input and 4 output	pc	1	1000V open circuit voltage, component short circuit current 14.14A
3	Hybrid Inverter	BSE30KH3	pc	1	3 Phase 400V 50Hz 3 groups of mppt 2 strings per group
4	Lithium Battery	51.2V 100Ah(including BMU/Collecting harness/ power cable)	pack	10	10 pcs in 1 group, totally 51.20KWH
5		High Voltage Control box	piece	1
6		Battery Rack	set	1
8	Remote Monitoring	WiFI Monitoring	set	1	equipped
9	MC4 Connectors	one-to-one correspondence	pair	16
10	PV Cable	PV1-F 1*4mm²	meter	400
11	Mounting Kits	Customized Designed Roof/ Ground Mounting Kits	set	1
HITEK ENERGY Use ONLY Reliable Approved Equipments.

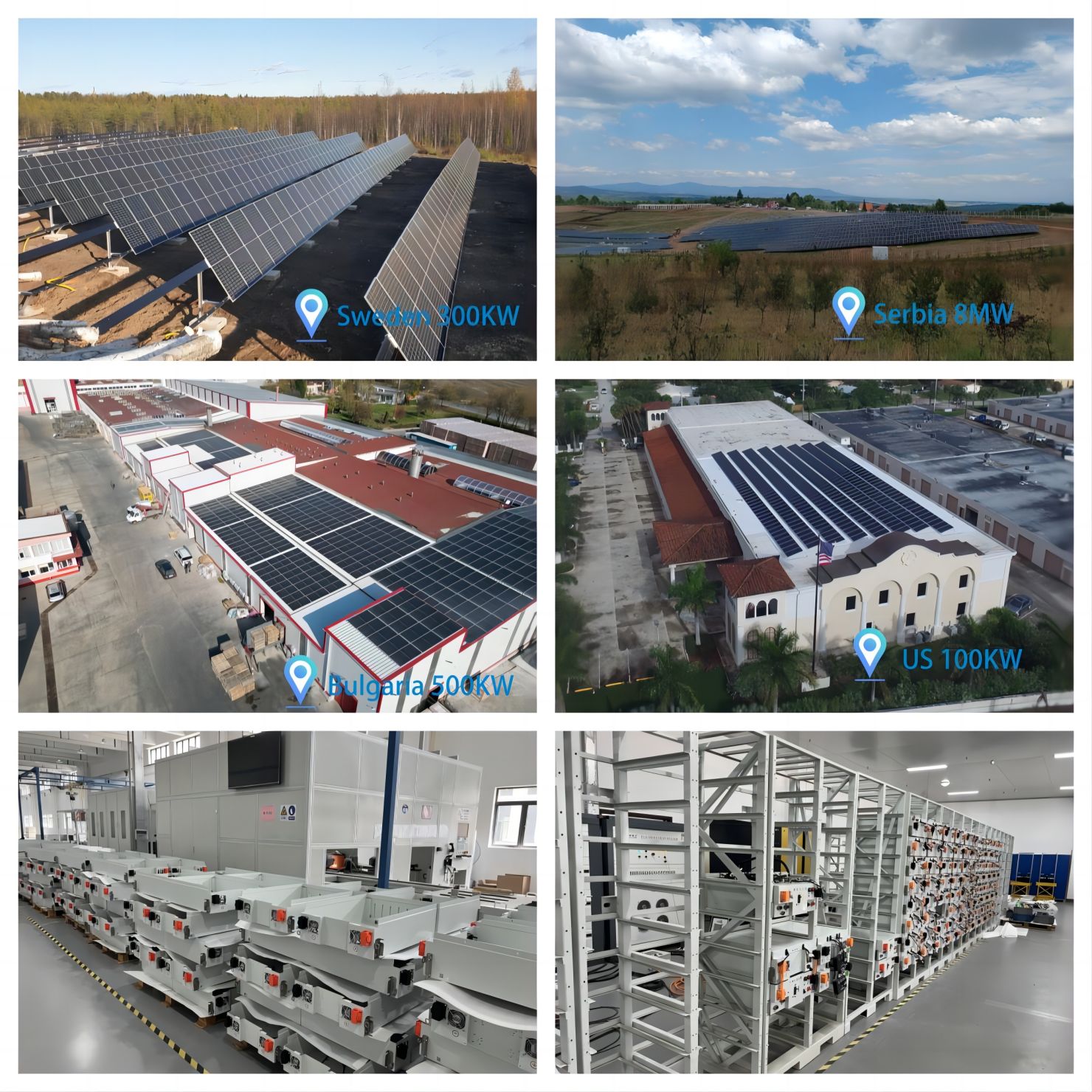

HITEK SOLAR SYSTEM PROJECT CASE
