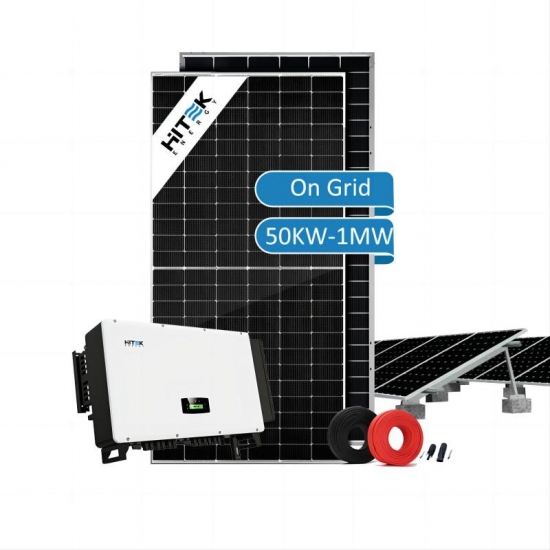

Hitek Complete Set 500KW 1MW 2MW On Grid Solar System Grid Tie 1000KW Solar Energy System for Commercial/Industrial Use

5KW 10KW Grid Tied Home Solar Power System

400v 4Phase Solar System

Three Phase EU Standard Grid Tied Inverter

HITEK HPS series hybrid inverter have a lot of working mode, such as on grid mode, off grid mode, ge...

Three Phase EU Standard Grid Tied Inverter

20FT Container Solution

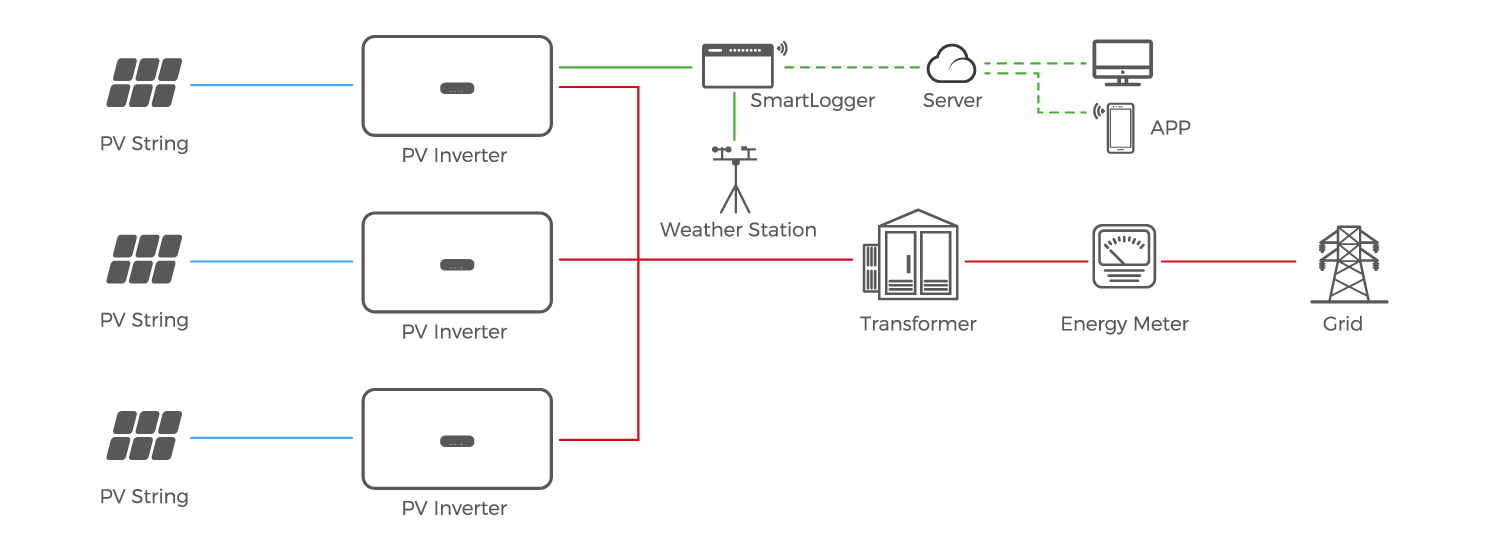

Product Description Hitek hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight. It's combination of off grid solar system & on grid solar power system allowing you to continue running on solar power even if the grid goes dark.   How is works? System Configurations     Model. No. HT30KW-HY HT50KW-HY HT100KW-HY HT150KW-HY HT250KW-HY HT500KW-HY System Parameter AC Rated Power 30KW 50KW 100KW 150KW 250KW 500KW Grid Voltage 380/400VAC Rated grid frequency 50/60HZ Max. Output (KVA) 33 55 110 165 275 550 Solar Panel Quantity 68PCS 102PCS 204OCS 289PCS 510PCS 1020PCS Model HT560M-72 Power in total 38.08KW 57.1KW 114.24KW 161.84KW 285.6KW 571.2KW Hybrid Inverter Quantity 1PC 1PC 1PC 1PC 1PC 1PC Model HTMPS30 HTMPS50 HTMPS100 HTMPS150 HTMPS250 HTMPS500 Rated current (A) 43A 72A 144A 216A 361A 722A Rated Power (KW) 30KW 50KW 100KW 150KW 250KW 500KW MPPT Voltage 250-850VDC Lithium Battery Quantity 8PCS 7PCS 14PCS 22PCS 33PCS 66PCS Model HT48100 HT48100 HT48280 HT48280 HT48280 HT48280 Nominal Voltage (Vdc) 51.2 51.2 51.2 51.2 51.2 51.2V Nominal Capacity (AH) 100 280 280 280 280 280 Voltage Range (Vdc) 44.8-57.6V Battery Bank Capacity 40.96KWH 100.352KWH 200.704KWH 315.392KWH 473.088KWH 946.176KWH BOS Battery Combiner Box 0 set 0 set 1 set 1 set 1 set 1 set PV Combiner Box 1 set 1 set 1 set 1 set 1 set 1 set PV Cable 4MM2 400m 600m 1200m 1700m 3000m 6000m MC4 Connectors 16 paris 24 pairs 48 pairs 68 pairs 120 pairs 240 pairs EMS BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) BR3000 (Optional) ATS ATS-30 (Optional) ATS-50 (Optional) ATS-100 (Optional) ATS-150 (Optional) ATS-250 (Optional) ATS-500 (Optional) Container / / 10ft (Optional) 10ft (Optional) 20ft (Optional) 20ft (Optional) General Data Operation Temperature Range -35~50ºC(>40ºC derating) Operation Humidity Range 0~95% (no condensation) Maximum Operation Altitude 2000m   HiTek Hybrid solar system is a great option for factoryowners who are not only looking to go solar to lower their electricity bill, but to ensure your property is powered during a power outage.   Complete Technical Support    HITEK Real Project Case

PERC 182MM
