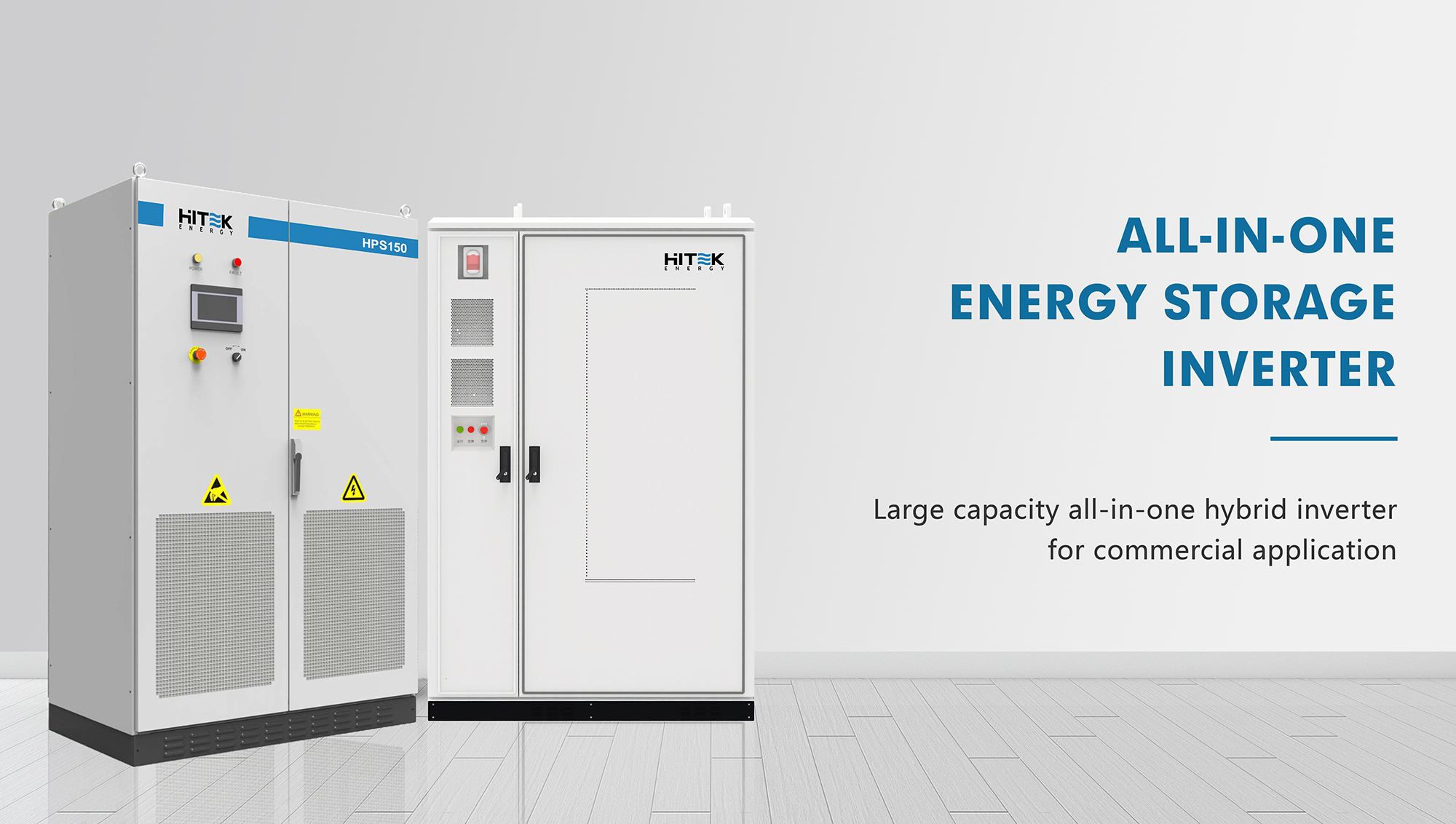

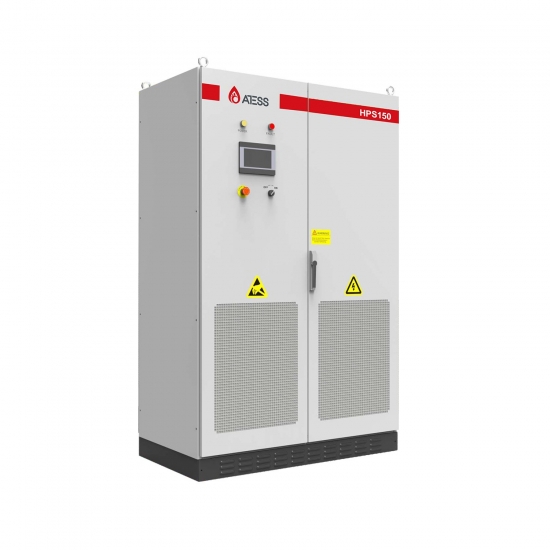

HITEK Energy Storage System Commercial 30KW 50KW 100KW 150KW 250KW 500KW Hybrid Solar Inverter For Industrial Use

HITEK HPS series hybrid inverter have a lot of working mode, such as on grid mode, off grid mode, generator mode and PV mode.

Brand Name:
HITEK
Model No.:
HT-HPS150
AC Rated Power:
150KW
AC Output Voltage:
380V/400V/415VAC 3Phase
Max. PV Power:
225Kwp
PV MPPT Voltage Range:
480-800VDC
Battery Voltage Range:
352-600VDC
Built-in Transformer:
YES
Warranty:
5 years
Certificate:
VDE4105, EN50549, UKCA, IEC62109, NRS097-2-1, G99, VDE0124, AS4777.2

Inquire Now

Description

Product Introduction

HITEK HPS bidirectional battery inverter is designed for energy storage system. It converts DC current generated by battery bank into AC current and feed it into the loads/grid. Also it can take power from solar inverter or grid to charge battery to ensure uninterrupted power supply to the load.

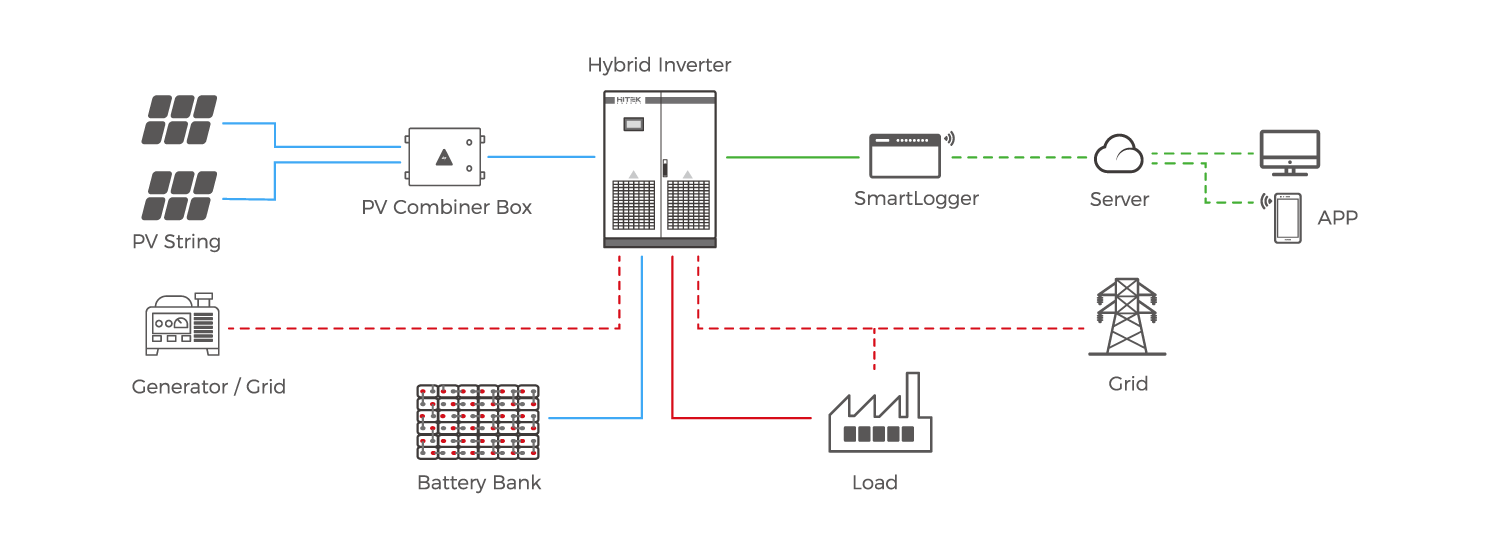

System Block Diagram

Product Parameter

Technical Specification	HT-HPS30	HT-HPS50	HT-HPS100	HT-HPS120	HT-HPS150
AC(Grid Connected)
Apparent Power	33kVA	55kVA	110kVA	132kVA	165kVA
Rated Power	30kW	50kW	100kW	120kW	150kW
Rated Voltage	400V	400V	400V	400V	400V
Rated Current	43A	72A	144A	173A	217A
Voltage Range	360-440V	360-440V	360-440V	360-440V	360-440V
Rated Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Frequency Range	45-55/55-65Hz	45-55/55-65Hz	45-55/55-65Hz	45-55/55-65Hz	45-55/55-65Hz
THDI	<3%	<3%	<3%	<3%	<3%
Power Factor	0.8lagging~0.8leading	0.8lagging~0.8leading	0.8lagging~0.8leading	0.8lagging~0.8leading	0.8lagging~0.8leading
AC Connection	3/N/PE	3/N/PE	3/N/PE	3/N/PE	3/N/PE
AC Input	60kVA	100kVA	200kVA	240kVA	240kVA
DC (Battery and PV)
Max. PV Open-circuit Voltage	1000V DC	1000V DC	1000V DC	1000V DC	1000V DC
Max. PV Power	45kWp	75kWp	150kWp	180kWp	225kWp
PV MPPT Voltage Range	480V-800V DC	480V-800V DC	480V-800V DC	480V-800V DC	480V-800V DC
Batery Voltage Range	352-600V	352-600V	352-600V	352-600V	352-600V
General Information
Protection Degree	IP20	IP20	IP20	IP20	IP20
Noise Emission	<65dB(A)@1m	<65dB(A)@1m	<65dB(A)@1m	<65dB(A)@1m	<65dB(A)@1m
Dimension (W/D/H)	700/1660/600mm	950/1860/750mm	1200/1900/800mm	1200/1900/800mm	1200/1900/800mm
Weight	355kg	610kg	948kg	1025kg	1230kg
Build-in Transformer	YES	YES	YES	YES	YES
Transfer between on/off grid	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms	Automatic≤10ms
Communication	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN	RS485/CAN
Certificate	CE, UKCA, AS477.2, EN61000-6-4:2007+A1:2011, EN6100-6-2:2005, EN62109-1:2010, EN62109-2:2011, EN50549-1:2019, IEC62109.1, IEC62109.2, NRS 097-2-1:2017, G99, VDE-AR-N 4105:2018, DIN VDEV0124-100:2020-06, PSE:2018-12

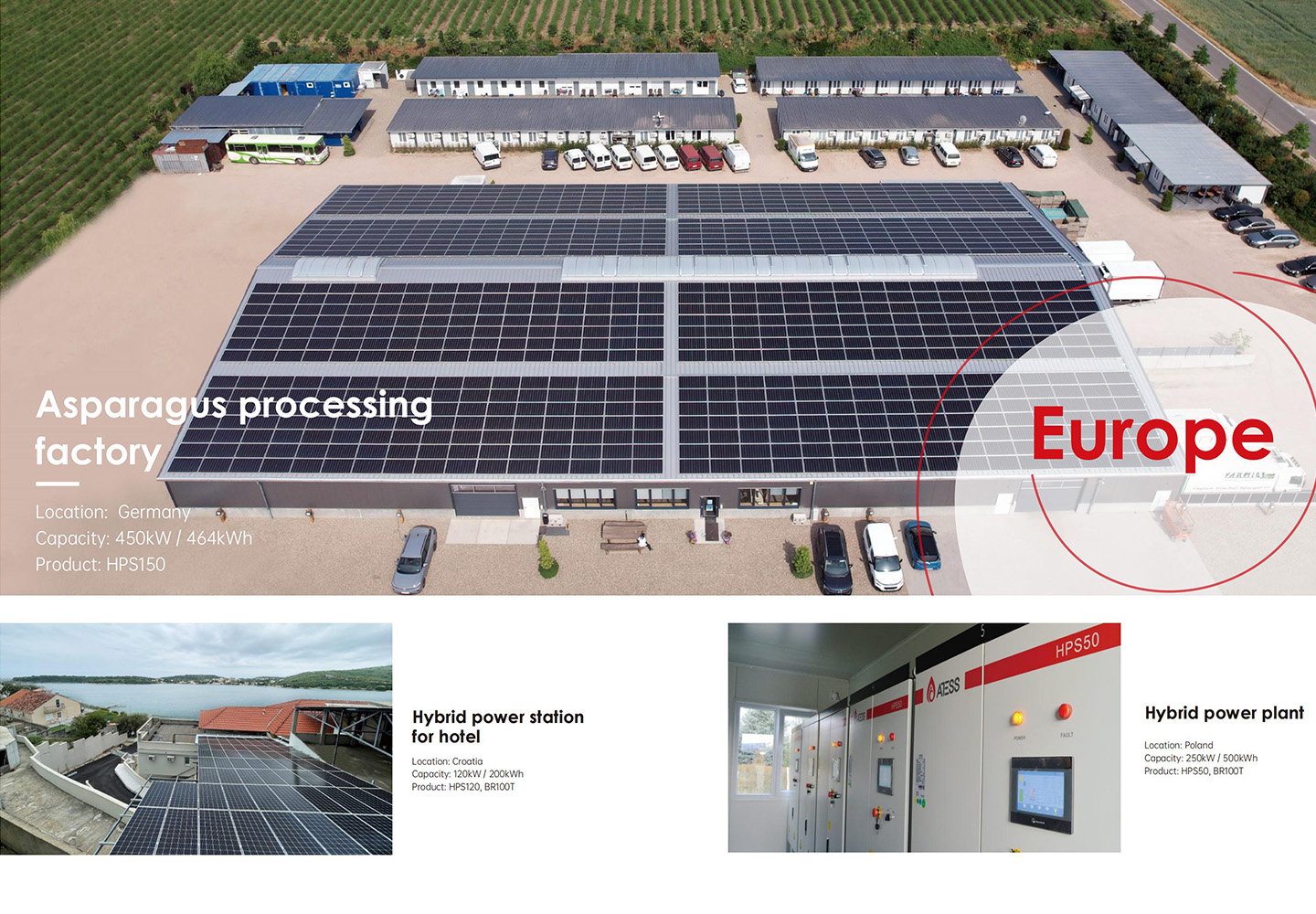

HITEK Project Case
