Home Solar Module P Type PERC

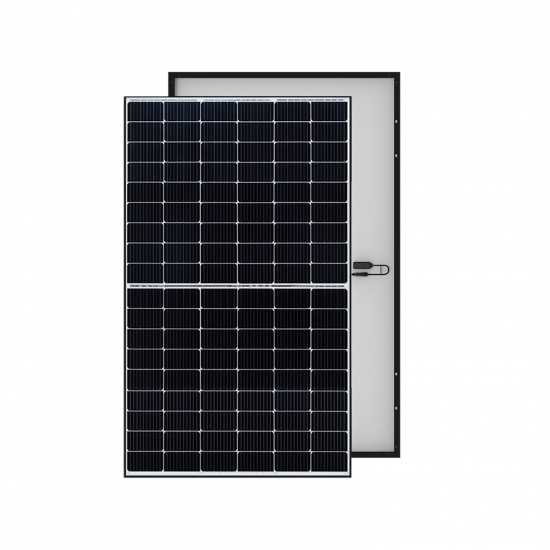

425Watt Black Frame 182mm Cell PERC Solar Panel Module

PERC 182MM

Item NO.:
HT425M-54HB
Color:
Black Frame
Size:
1722*1134*30MM
Solar Cell:
182*182mm
Number of Cells:
108(6*18)
Power Range:
405-425W
Certificate:
CE/TUV/UL
Lead Time:
10 Days
Warranty:
25 Years

Description

HITEK monocrystalline solar panels use half cell PERC cells,it has a passivated rear side and a laser grooving process,which significantly improves the cell efficiency,power range from 405-425w.Passed IEC 61215, IEC 61730,UL 61730,INMETRO test for harsh environment.

*High module conversion efficiency *Withstanding harsh environment

*Excellent Anti-PID performance *Excellent weak light performance

Module Type	HT405M-54HB		HT410M-54HB		HT415M-54HB		HT420M-54HB		HT425M-54HB
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power(Pmax/W)	405	302	410	306	415	310	420	314	425	318
Operating Voltage(Vmpp/V)	31.24	29.2	31.43	29.3	31.64	29.6	31.83	29.8	32.03	30.0
Operating Current(Impp/A)	12.97	10.36	13.05	10.42	13.13	10.48	13.21	10.54	13.29	10.60
Open-Circuit Voltage(Voc/V)	37.25	35.10	37.50	35.30	37.75	35.50	38.00	35.70	38.25	35.90
Short-Circuit Current(Isc/A)	13.86	11.17	13.94	11.24	14.02	11.30	14.10	11.36	14.18	11.42
Module Efficiency(%)	20.7		21.0		21.3		21.5		21.7

STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
