Products

Home Solar System Commercial ESS

HITEK Container 20FT Customized Energy Storage System with EMS

20FT Container Solution

Item NO.:
HT-250/500-EC
System Type:
Containerized ESS
Output Voltage:
380V/400V/415V/480V
Solar System Power:
250KW/500KWH
Online Monitoring:
Yes
Battery Type:
LiFePO4
Solar System Application:
Commericial

Inquire Now

Description

Features of HiTek Energy Storage Container System

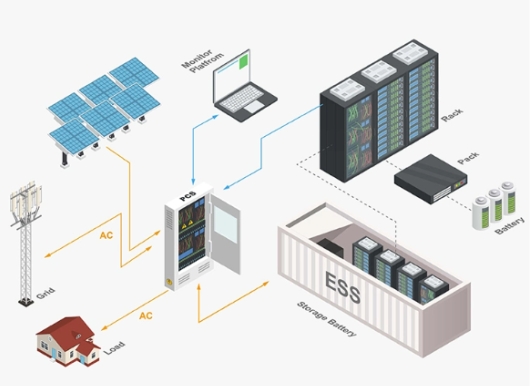

1. Working Mode: Ongrid mode (Zero Export,Load First,Battery First,Economy Mode,Peak Shaving); Offgrid Mode;Generator Connection(Optional).
2. Features of BMS: Battery status monitoring ( Record & Storage, Operation Control,Insulation Detection,Dynamic Balancing Management,Protection Alarms,Communication)
3. Features of PCS: Wide Range of DC Input Voltage,Indoor/Outdoor Installation, Short Conversion Time Offull Power from Chagre to Discharge etc.

4. Fire Protection System
5. Air Condition System

HiTek 20FT ESS Lithium Energy Storage Container Energy Storage System

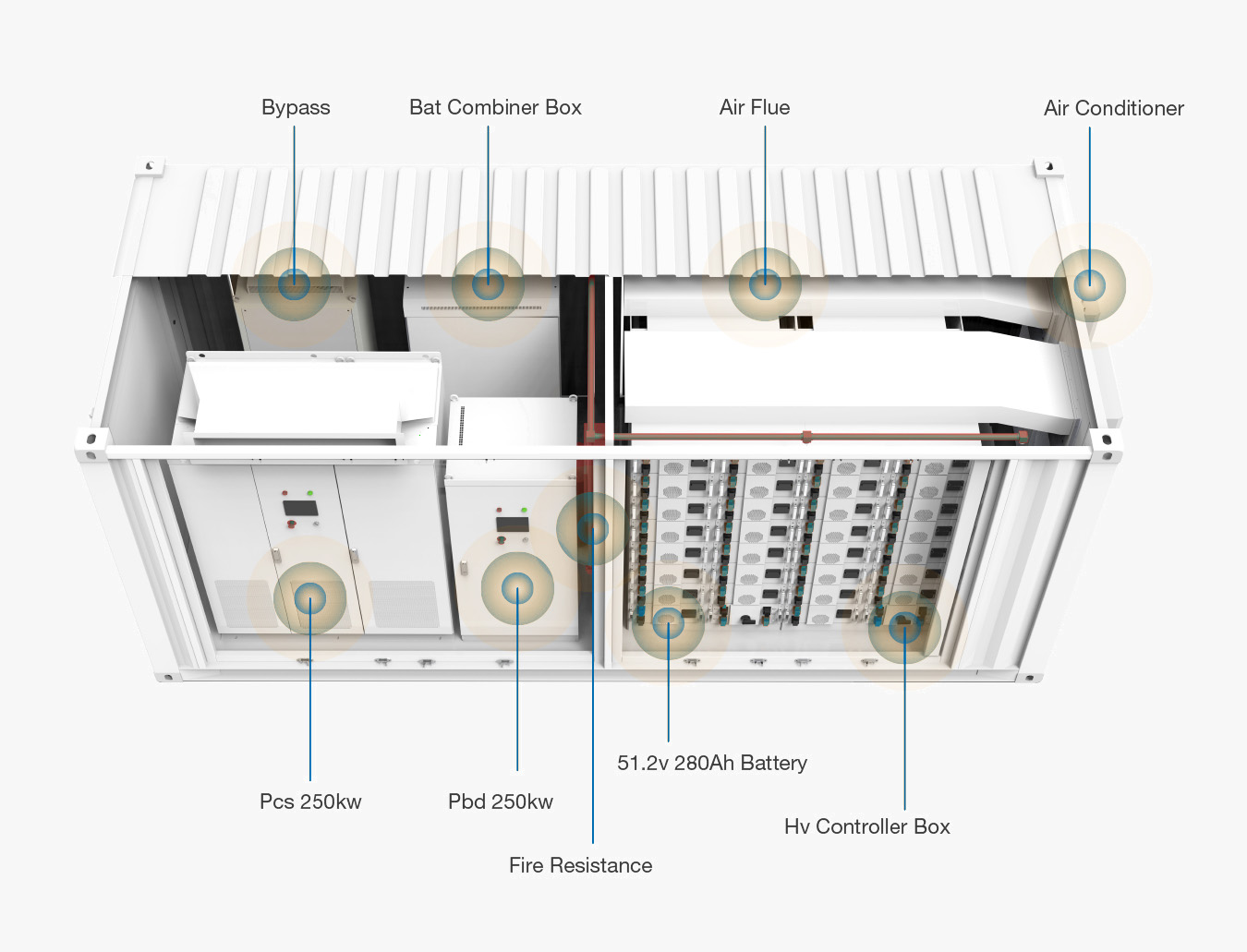

Item	Description	Quanty(pcs)	Remarks
PV Solar Panel	HT560M-72H	480	12 pieces/string;A total of 40 strings; A total of 268.8kWp
Battery 573.44KWH (458.75KWH@80%DOD)Backup	Combiner Box 1500V-1500A	1	For combination of multiple battery racks
	280Ah Lithium Battery Module	40	Battery With BMU module 51.2V 280AH Capacity 14.3kWh
	Controller1500V 300A	4	High Voltage Controller Box
PV-Combiner Box	8 Inputs 1 Output	5	For combination of multiple PV module strings
PBD250		1	250kW solar charge controller
PCS250		1	250kW battery inverter
Bypass 250		1	Switch between on-grid and off-grid
EnerLog		1	Monitoring datalogger
20FT Container		1	For outdoor installation,IP54,including lighting, fire-resitance system,battery rack,air conditioner
