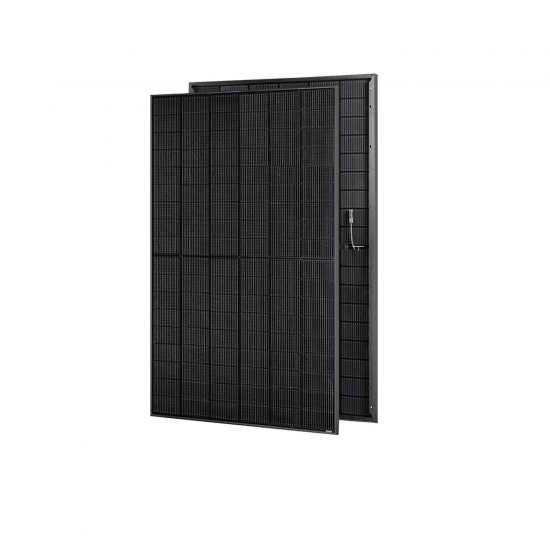

TOPCON N Type Tech
Item NO.:
HT440M-54HNColor:
Black FrameSize:
1722*1134*30MMSolar Cell:
182*182mmNumber of Cells:
108(6*18)Power Range:
410-440WCertificate:
CE/TUV/ULLead Time:
10 DaysWarranty:
25 YearsHITEK Topcon Solar Panels
*Higher power
For the same module type, the power of N-type modules is 15~20W higher than that of P-type modules.
*Higher Bifaciality
For the same module type, the bifaciality of the N-type module is increased by 10~15% compared with the P-type module.
*Lower Temperature Coefficient
The temperature coefficient of the P-type module is -0.34%/℃ The temperature coefficient of the N-type module is optimized to -0.30%/℃. Power generation is particularly prominent in high-temperature environments
*Better Output Warranty
1st year <1%(P-type 2%). 30-year warranty for both monofacial and bifacial poweroutput (30 years for P-type bifacial and 25 years for P-typemonofacial). Output power is no less than 87.4% of the initial after 30years.
Module Type |
HT410M-54HN |
HT415M-54HN |
HT420M-54HN |
HT430M-54HN |
HT440M-54HN |
|||||
|
STC |
NMOT |
STC |
NMOT |
STC |
NMOT |
STC |
NMOT |
STC |
NMOT |
Maximum Power(Pmax/W) |
410 |
307 |
415 |
311 |
420 |
315 |
430 |
323 |
440 |
331 |
Operating Voltage(Vmp/V) |
31.81 |
29.24 |
32.02 |
29.45 |
32.23 |
29.66 |
32.65 |
30.07 |
33.06 |
30.48 |
Operating Current(Imp/A) |
12.89 |
10.50 |
12.96 |
10.56 |
13.03 |
10.62 |
13.17 |
10.74 |
13.31 |
10.86 |
Open-Circuit Voltage(Voc/V) |
38.10 |
36.33 |
38.34 |
36.54 |
38.57 |
36.74 |
39.04 |
37.15 |
39.52 |
37.36 |
Short-Circuit Current(Isc/A) |
13.82 |
11.12 |
13.89 |
11.18 |
13.96 |
11.24 |
14.10 |
11.36 |
14.24 |
11.48 |
Module Efficiency(%) |
21.00 |
21.25 |
21.51 |
22.28 |
22.53 |
STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
