Products

Home Solar Module N Type TOPCON

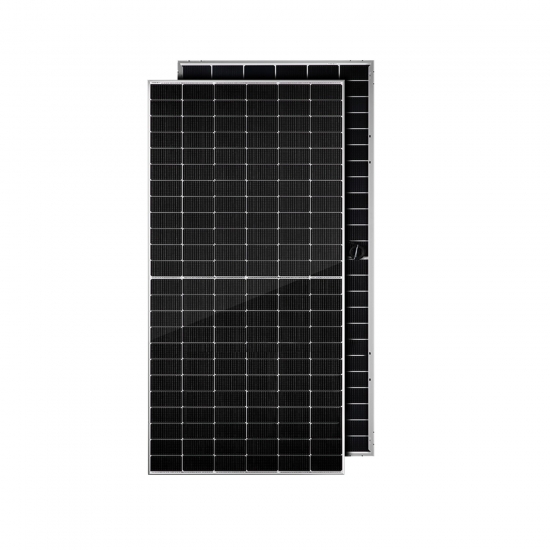

590Watt TOPCON N Type Bifacial 182MM Cell Solar Panel Module

TOPCON Tech N Type

Item NO.:
HT590M-72HN
Color:
Black Frame
Size:
2279*1134*35MM
Solar Cell:
182*182mm
Number of Cells:
144(6*24)
Power Range:
570-590W
Certificate:
CE/TUV/UL
Lead Time:
10 Days
Warranty:
25 Years

Inquire Now

Description

HITEK Topcon Solar Panels

*Higher power

For the same module type, the power of N-type modules is 15~20W higher than that of P-type modules.

*Higher Bifaciality

For the same module type, the bifaciality of the N-type module is increased by 10~15% compared with the P-type module.

*Lower Temperature Coefficient

The temperature coefficient of the P-type module is -0.34%/℃ The temperature coefficient of the N-type module is optimized to -0.30%/℃. Power generation is particularly prominent in high-temperature environments
*Better Output Warranty

1st year <1%(P-type 2%). 30-year warranty for both monofacial and bifacial poweroutput (30 years for P-type bifacial and 25 years for P-typemonofacial). Output power is no less than 87.4% of the initial after 30years.

Module Type	HT570M-72HN		HT575M-72HN		HT580M-72HN		HT585M-72HN		HT590M-72HN
	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power(Pmax/W)	570	429	575	433	580	437	585	441	590	445
Operating Voltage(Vmp/V)	42.79	39.61	42.94	39.76	43.09	39.91	43.24	40.05	43.38	40.20
Operating Current(Imp/A)	13.32	10.83	13.39	10.89	13.46	10.95	13.53	11.01	13.60	11.07
Open-Circuit Voltage(Voc/V)	51.30	48.78	51.44	48.96	51.57	49.14	51.80	49.32	52.03	49.52
Short-Circuit Current(Isc/A)	14.19	11.45	14.26	11.51	14.33	11.57	14.40	11.63	14.47	11.69
Module Efficiency(%)	22.06		22.25		22.44		22.63		22.83

STC: Irradiance 1000W/㎡,Cell Temperature 25°C,Air Mass AM1.5 NMOT: Irradiance at 800W/㎡,Ambient Temperatue 20°C,Air Mass AM1.5,Wind Speed 1 m/s
